Brake Control System
›
Trouble Diagnosis
›
Component Installation Location
Component Installation Location

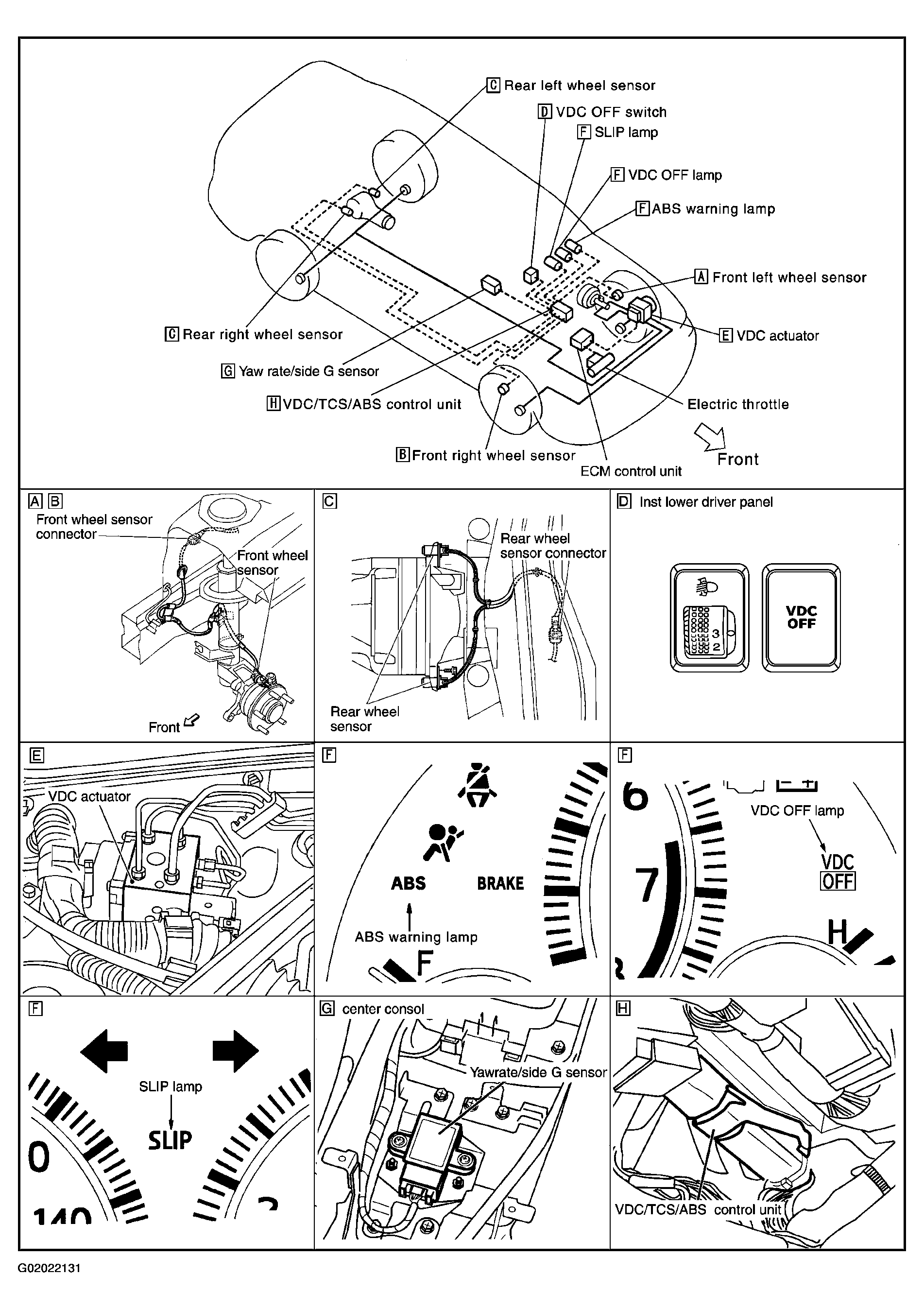

Fig 1: Locating VDC, TCS And ABS Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
