System Description

For system description, see Fig 1 .

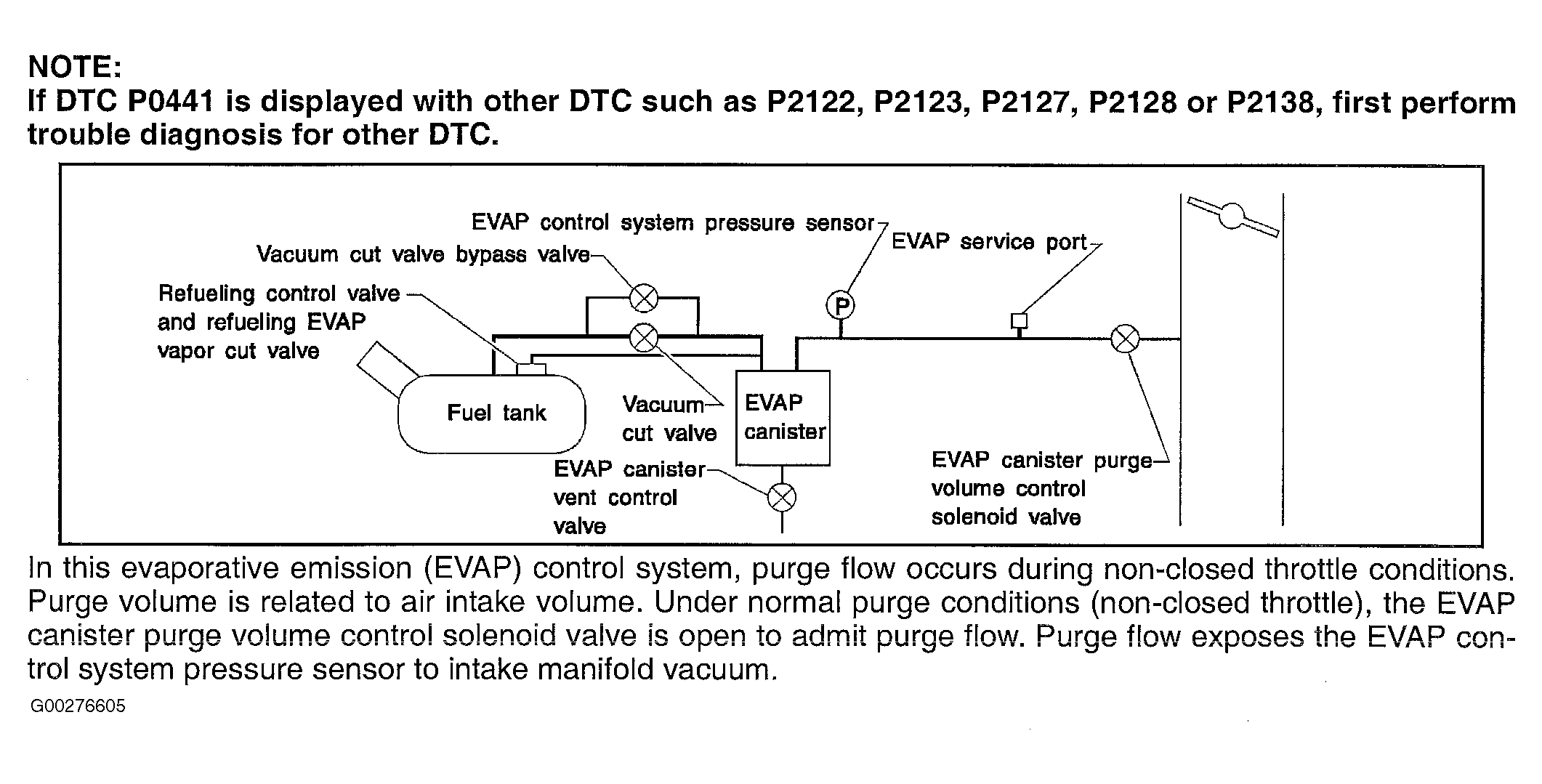

Fig 1: System Description
G00276605Courtesy of NISSAN MOTOR CO., U.S.A.
