Component Inspection

For component inspections, see Fig 1Fig 2 .

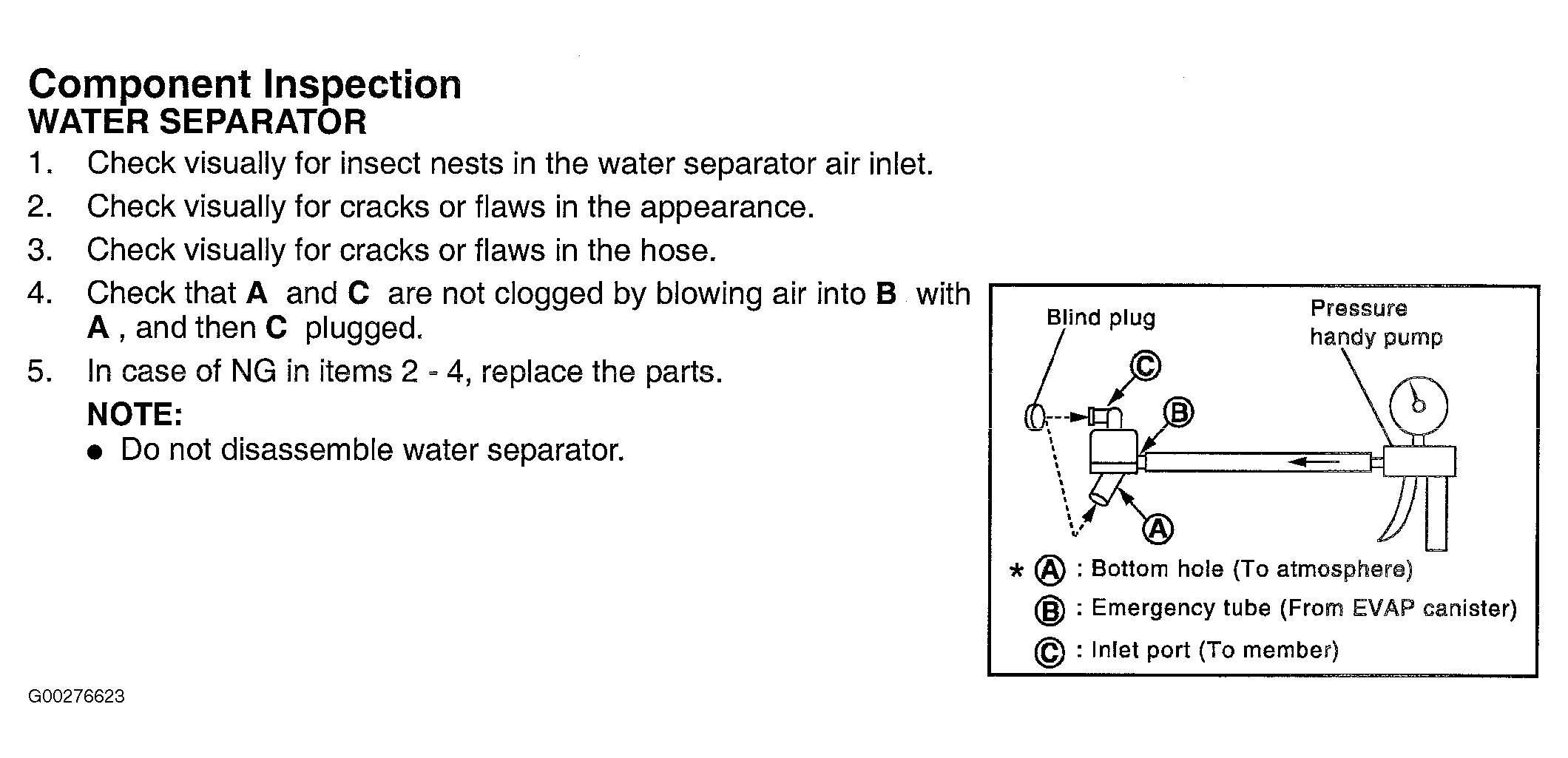

Fig 1: Component Inspection Of Water Separator

Courtesy of NISSAN MOTOR CO., U.S.A.

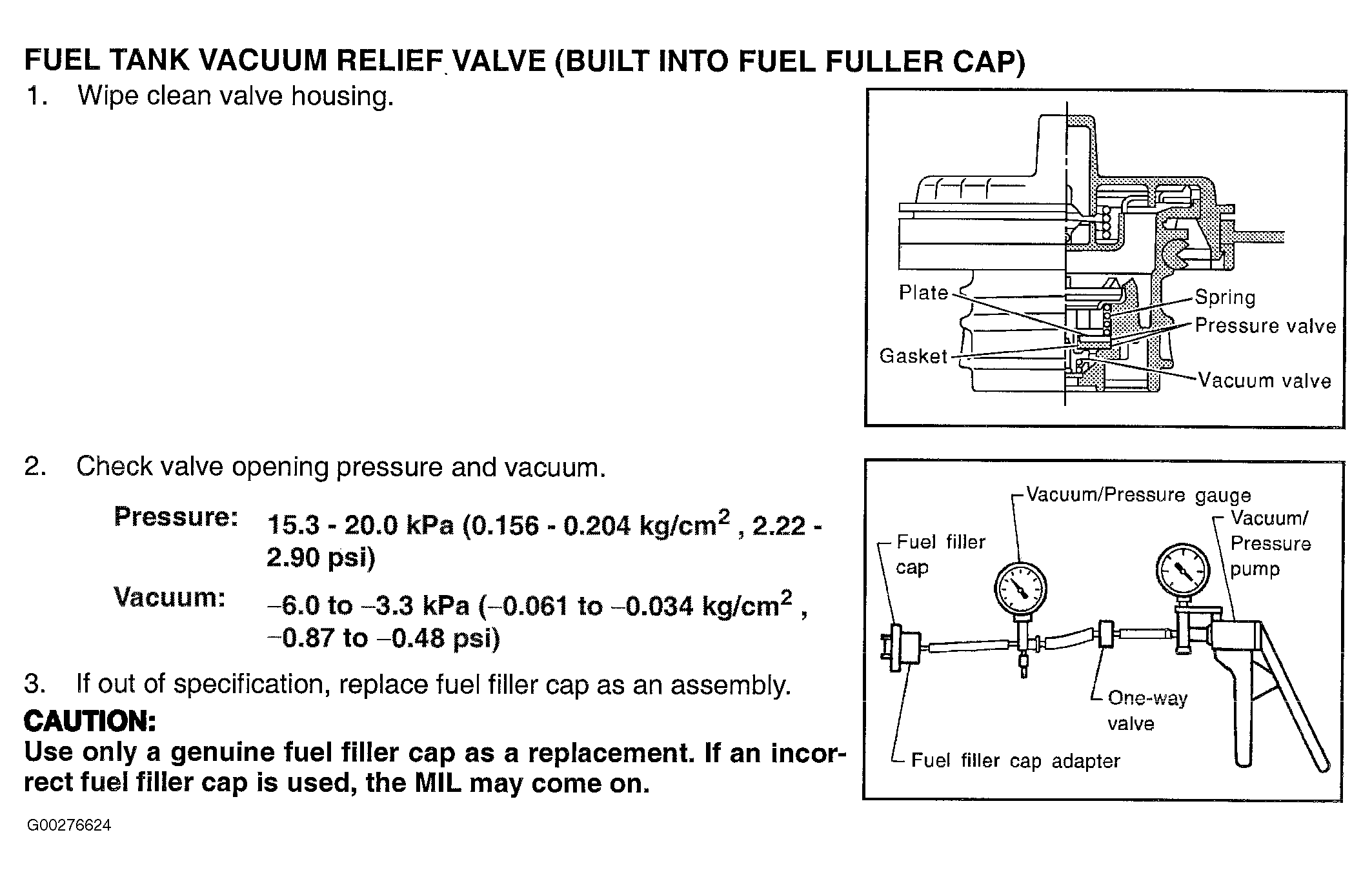

Fig 2: Component Inspection Of Fuel Tank Vacuum Relief Valve

Courtesy of NISSAN MOTOR CO., U.S.A.
