DTC P0500: Vehicle Speed Sensor
›
Overall Function Check & Diagnostic Procedure
Overall Function Check & Diagnostic Procedure
For overall function check and diagnostic procedure, see
Fig 1
.

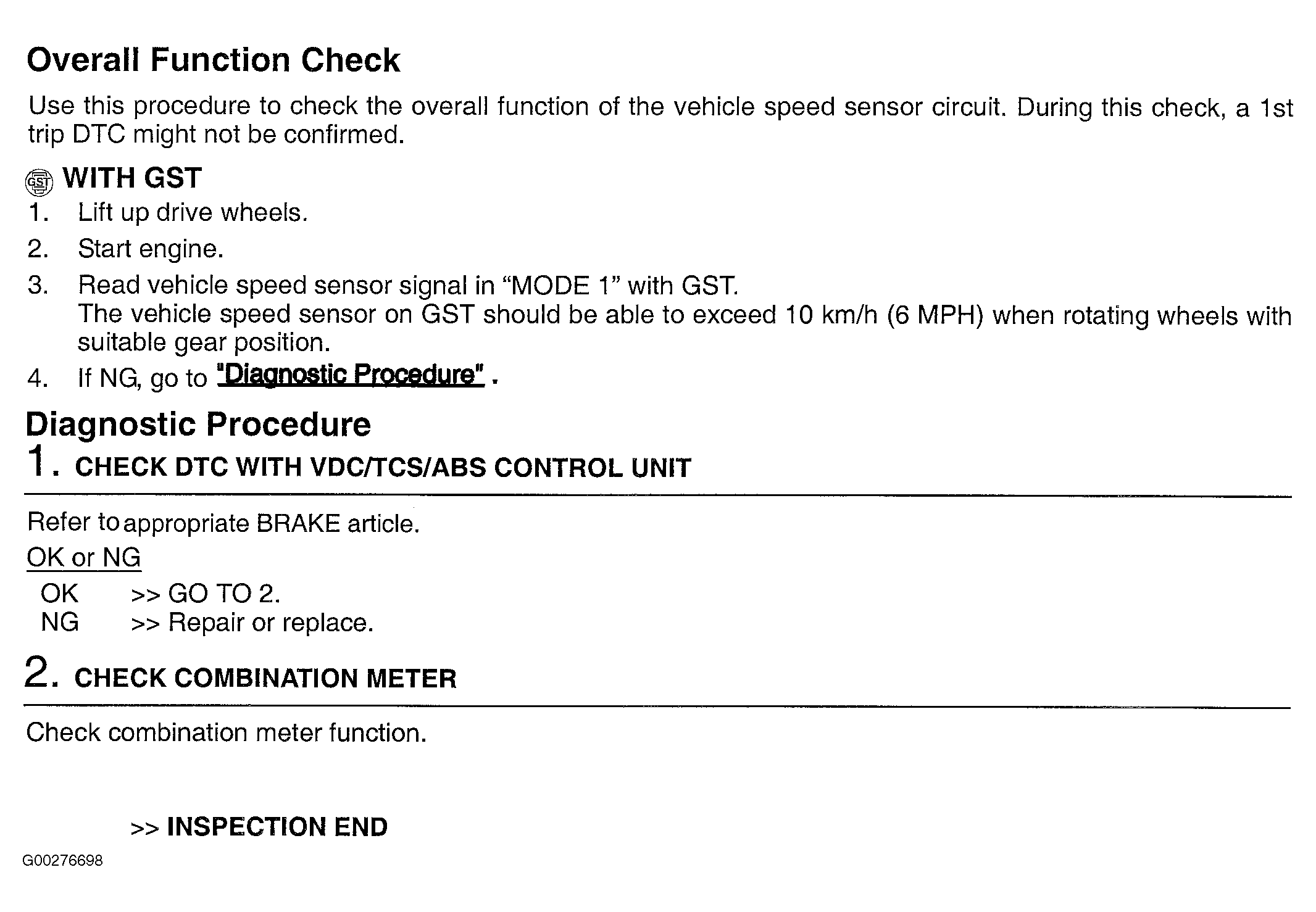

Fig 1: Overall Function Check & Diagnostic Procedure
Courtesy of NISSAN MOTOR CO., U.S.A.
