Diagnostic Procedure

For diagnostic procedure, see Fig 1 .

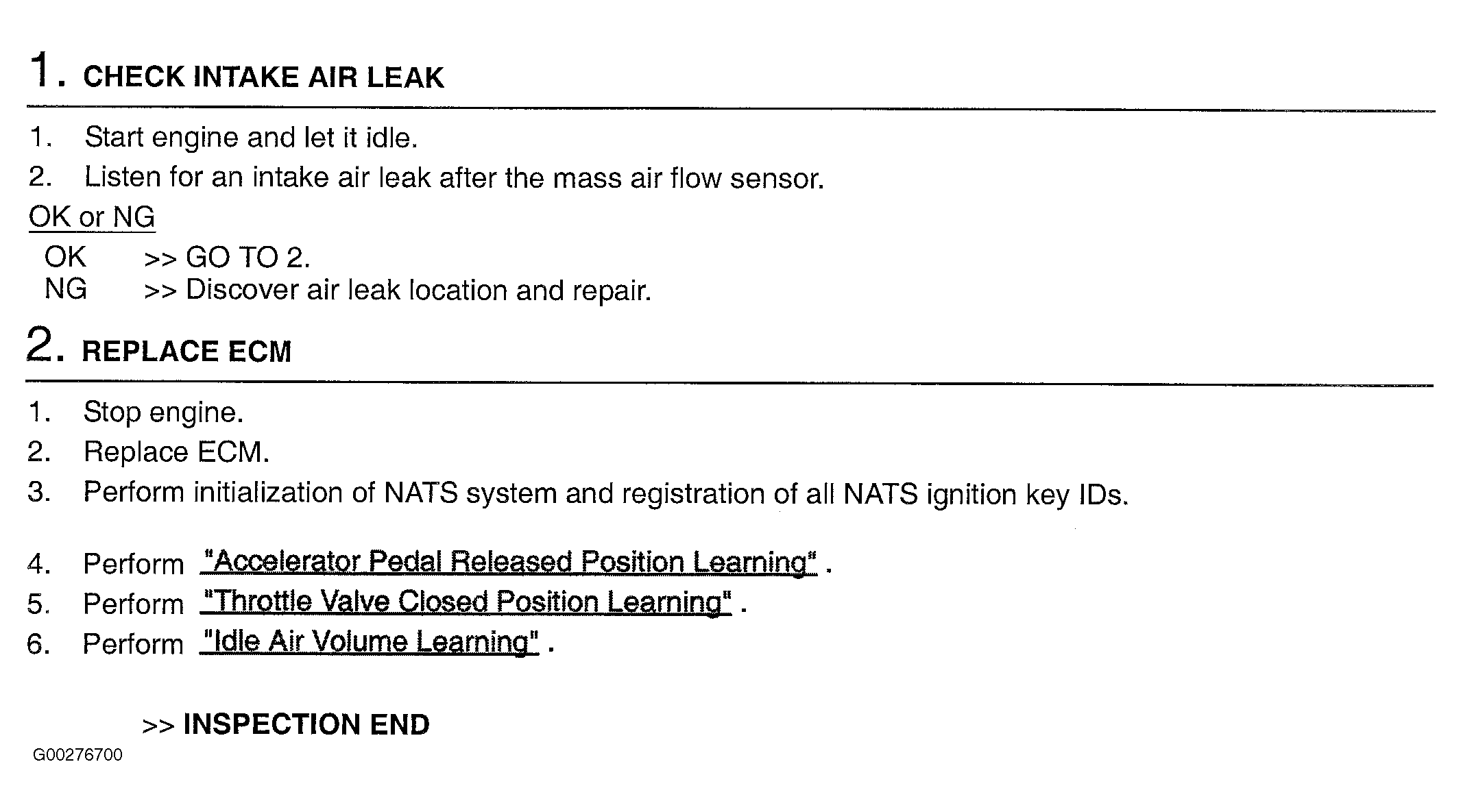

Fig 1: Diagnostic Procedure
G00276700Courtesy of NISSAN MOTOR CO., U.S.A.
