Overall Function Check & Diagnostic Procedure
NOTE:
For diagnostic procedure of closed loop control, use diagnostic procedure for DTC P0133 and P0153. See DTC P0133 & P0153: HEATED OXYGEN SENSOR 1
.

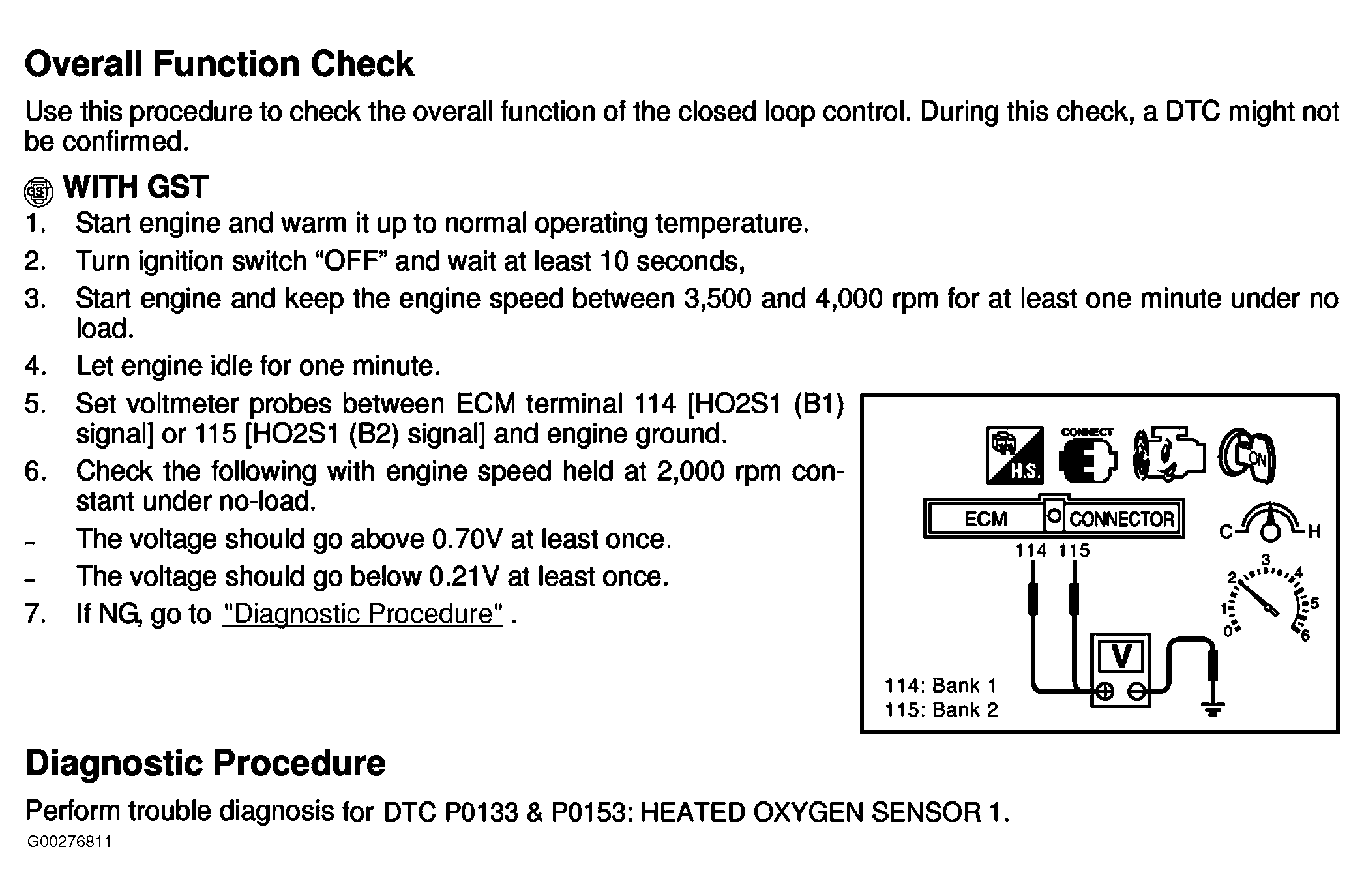

For overall function check, see Fig 1 .
