Diagnostic Procedure

For diagnostic procedure, see Fig 1 -Fig 4 .

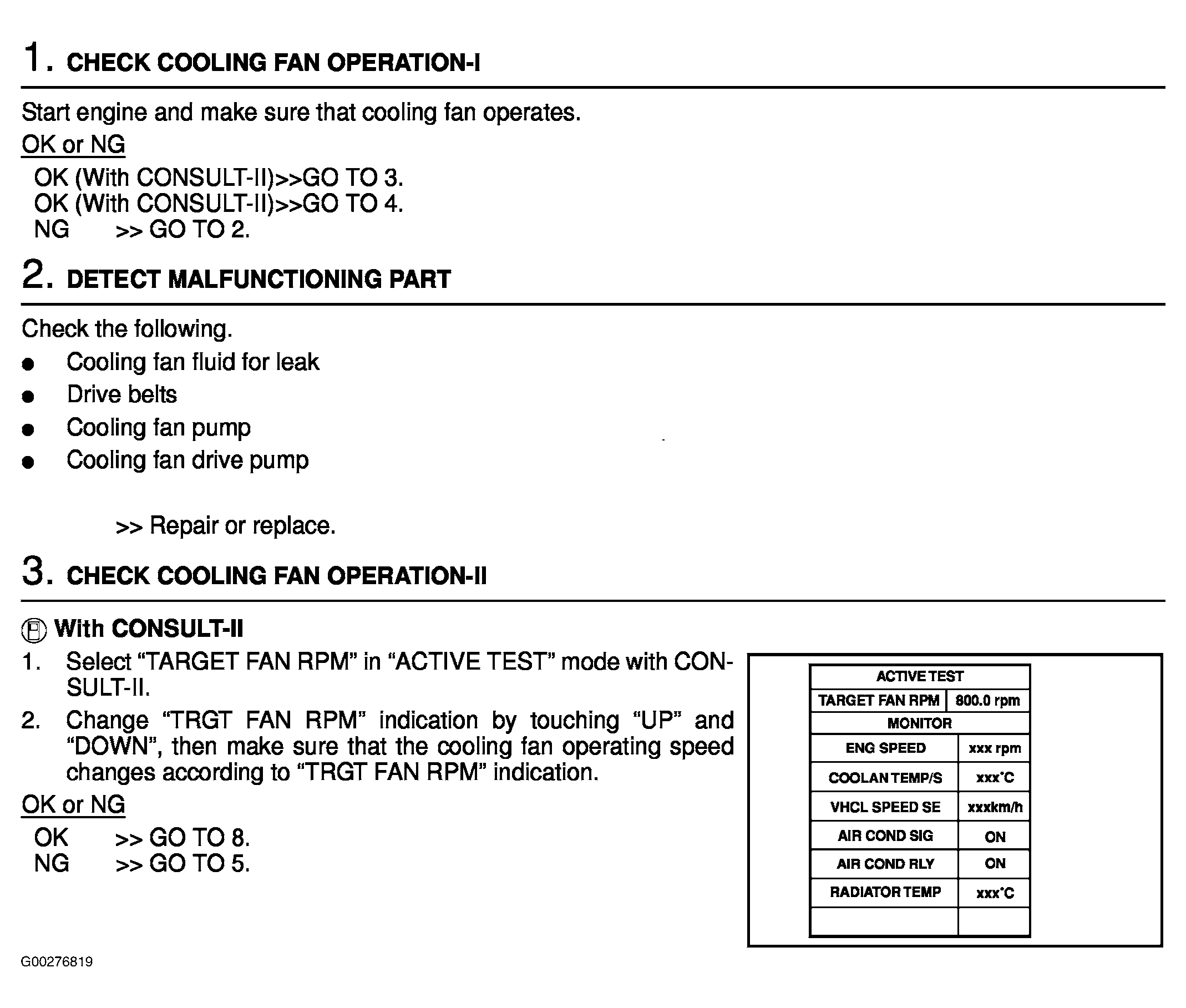

Fig 1: Diagnostic Procedure (Steps 1-3)

Courtesy of NISSAN MOTOR CO., U.S.A.

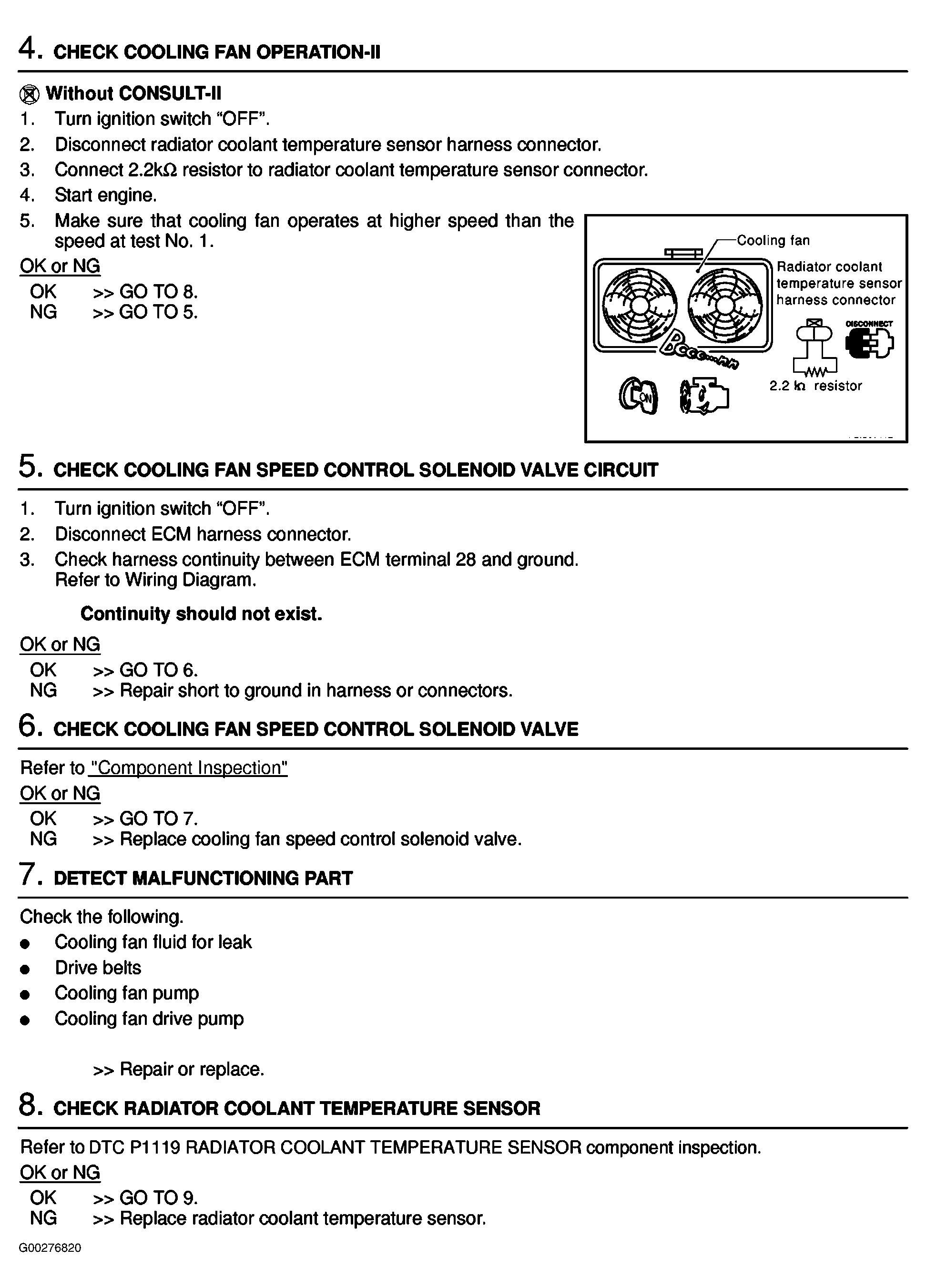

Fig 2: Diagnostic Procedure (Steps 4-8)

Courtesy of NISSAN MOTOR CO., U.S.A.

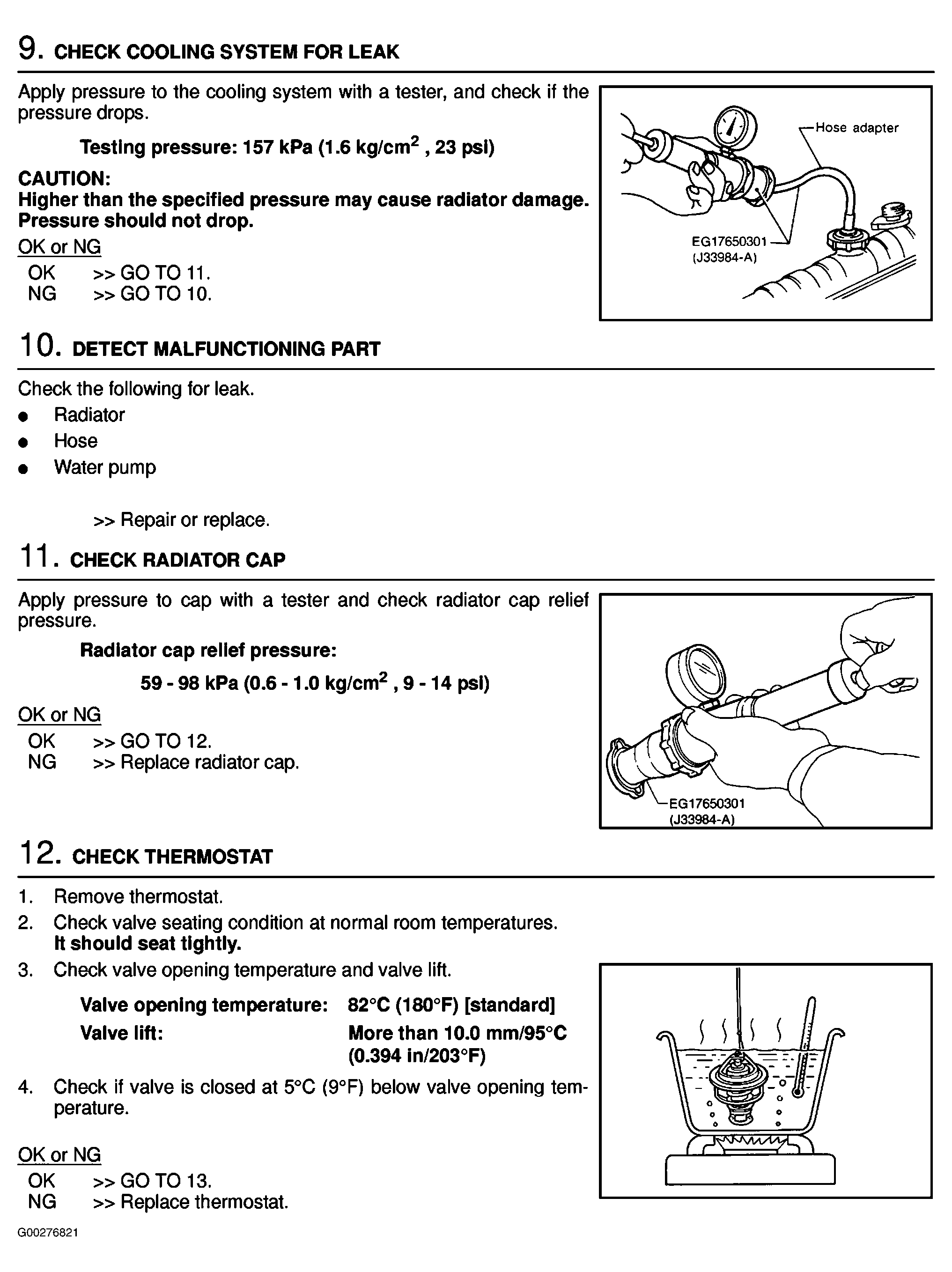

Fig 3: Diagnostic Procedure (Steps 9-12)

Courtesy of NISSAN MOTOR CO., U.S.A.

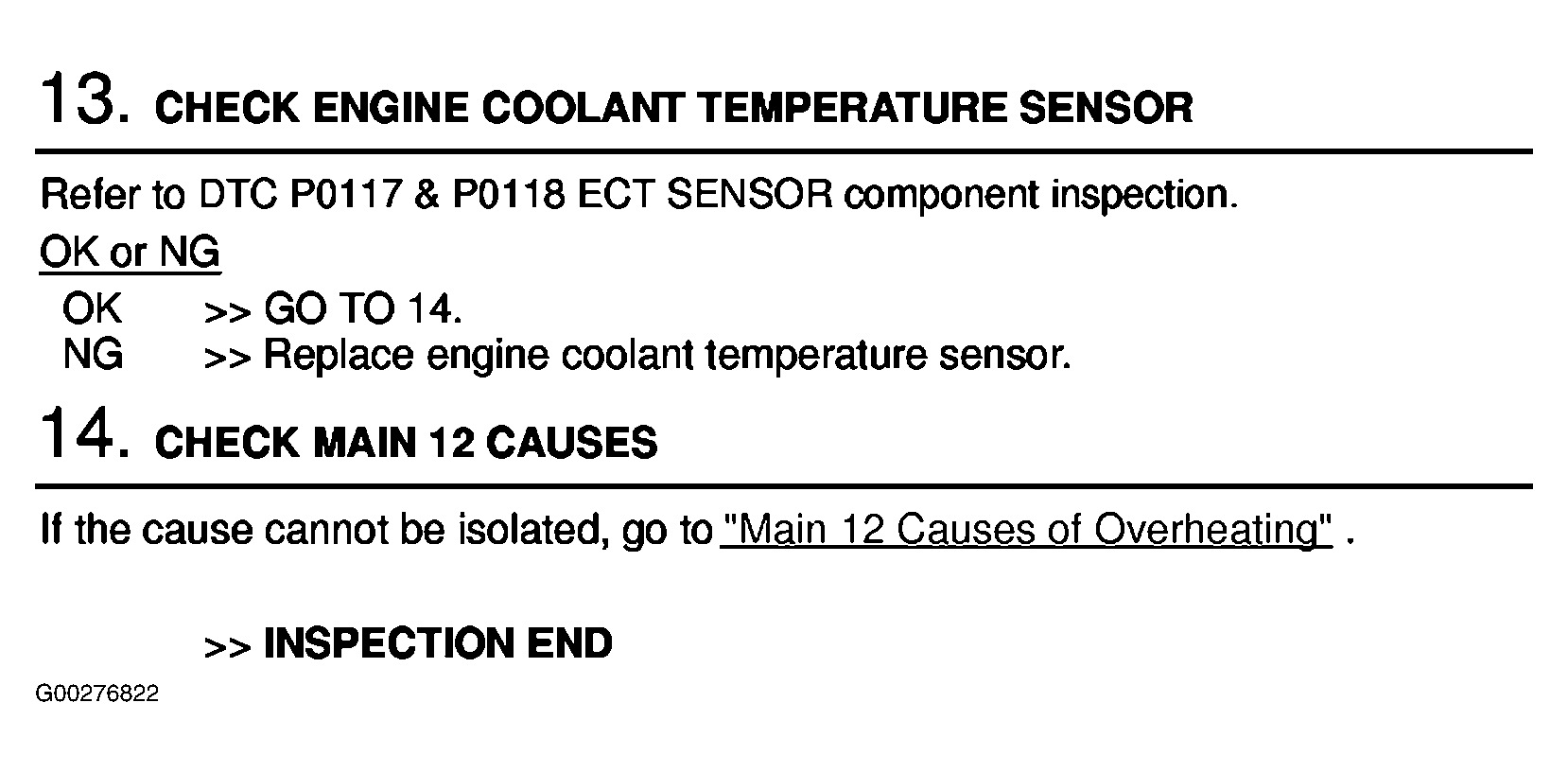

Fig 4: Diagnostic Procedure (Steps 13-14)

Courtesy of NISSAN MOTOR CO., U.S.A.
