Main 12 Causes Of Overheating

For the main 12 causes of overheating, see Fig 1 .

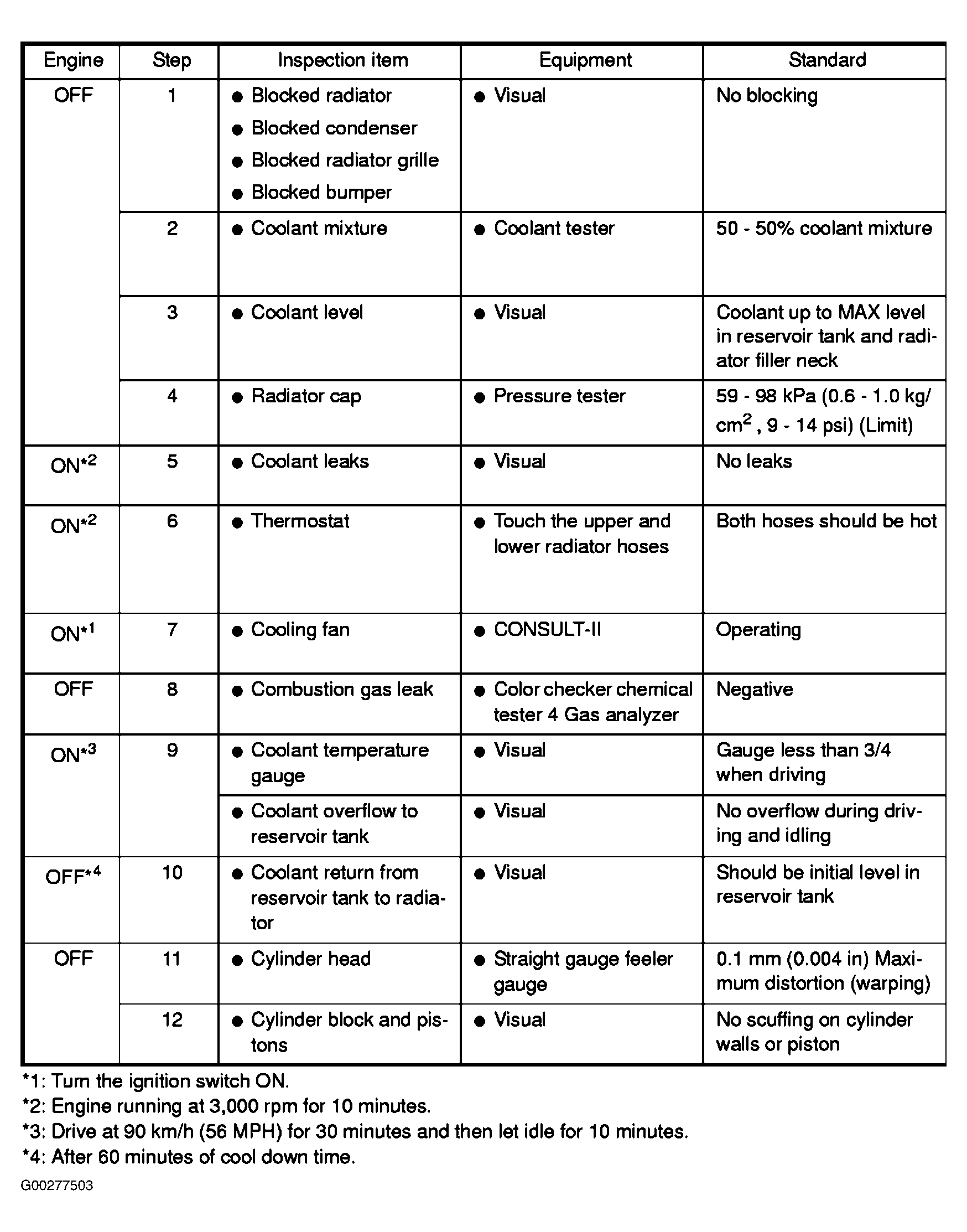

Fig 1: Main 12 Causes Of Overheating

G00277503

Courtesy of NISSAN MOTOR CO., U.S.A.
