System Description, Component Description, CONSULT-II Reference Value In Data Monitor Mode & On Board Diagnosis Logic

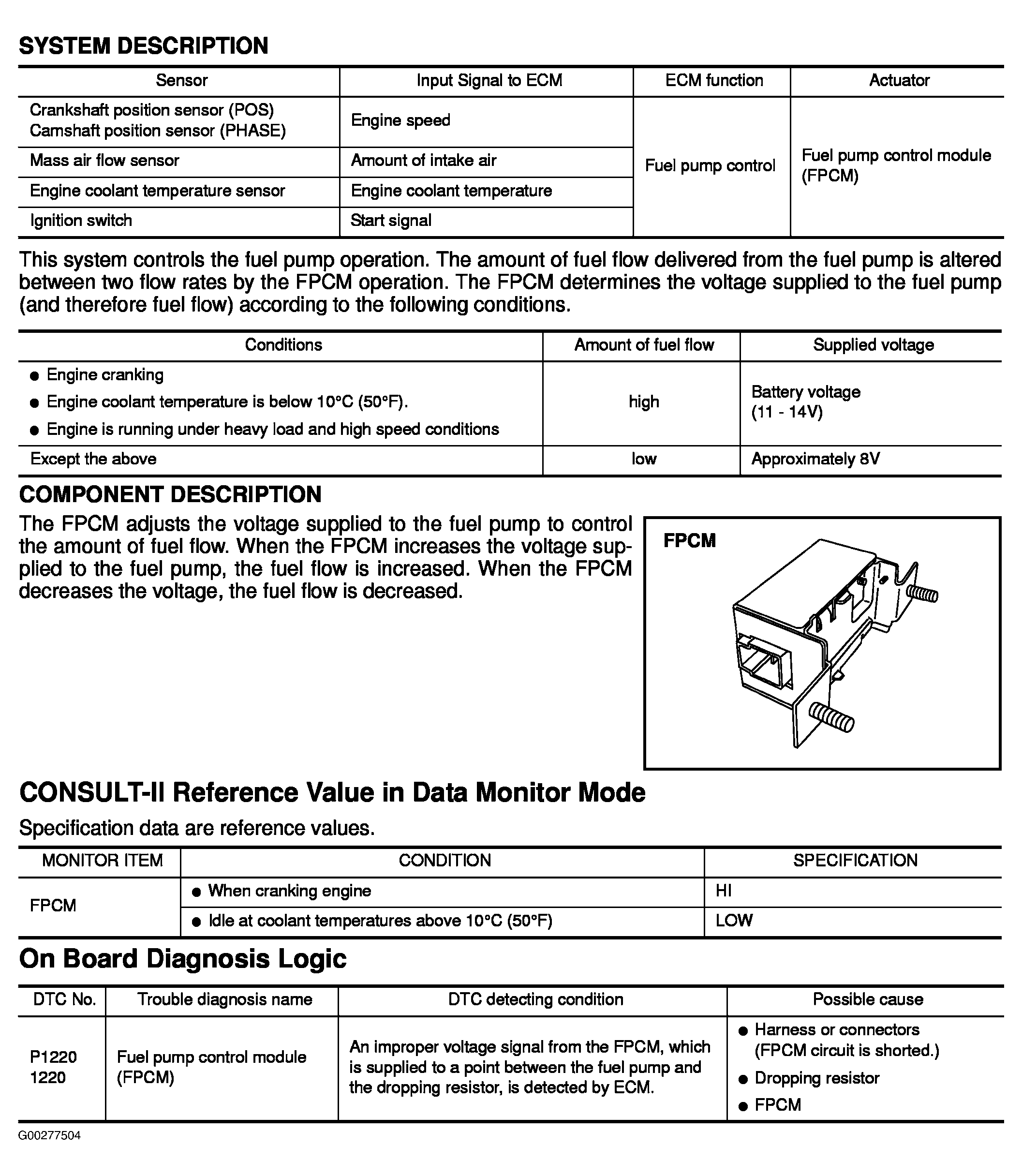

For system description, component description, CONSULT-II reference value in data monitor mode and on board diagnosis logic, see Fig 1 .

Fig 1: System Description, Component Description, CONSULT-II Reference Value In Data Monitor Mode & On Board Diagnosis Logic

Courtesy of NISSAN MOTOR CO., U.S.A.
