Diagnostic Procedure

For diagnostic procedure, see Fig 1 and Fig 2 .

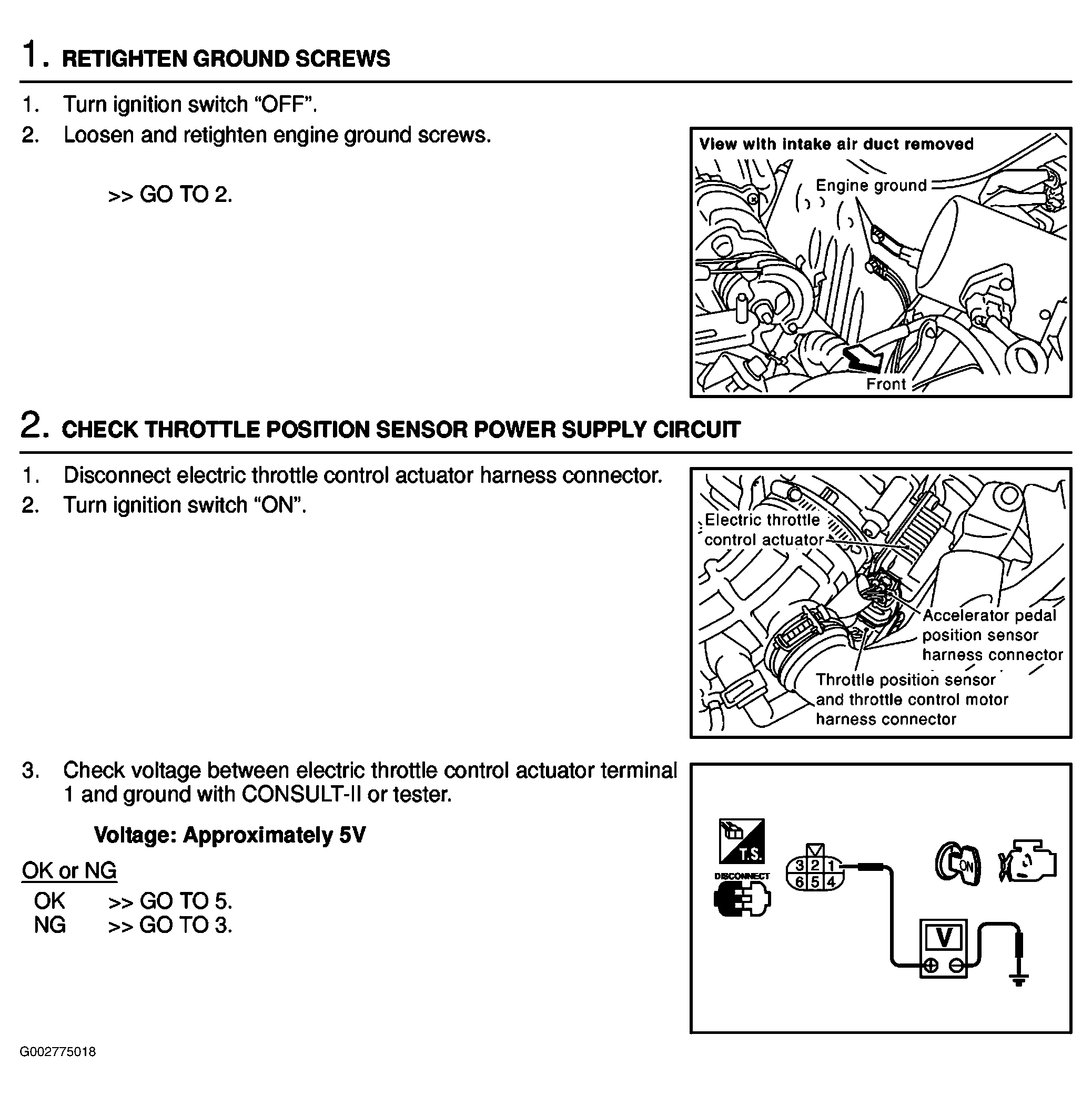

Fig 1: Diagnostic Procedure (Steps 1-2)

Courtesy of NISSAN MOTOR CO., U.S.A.

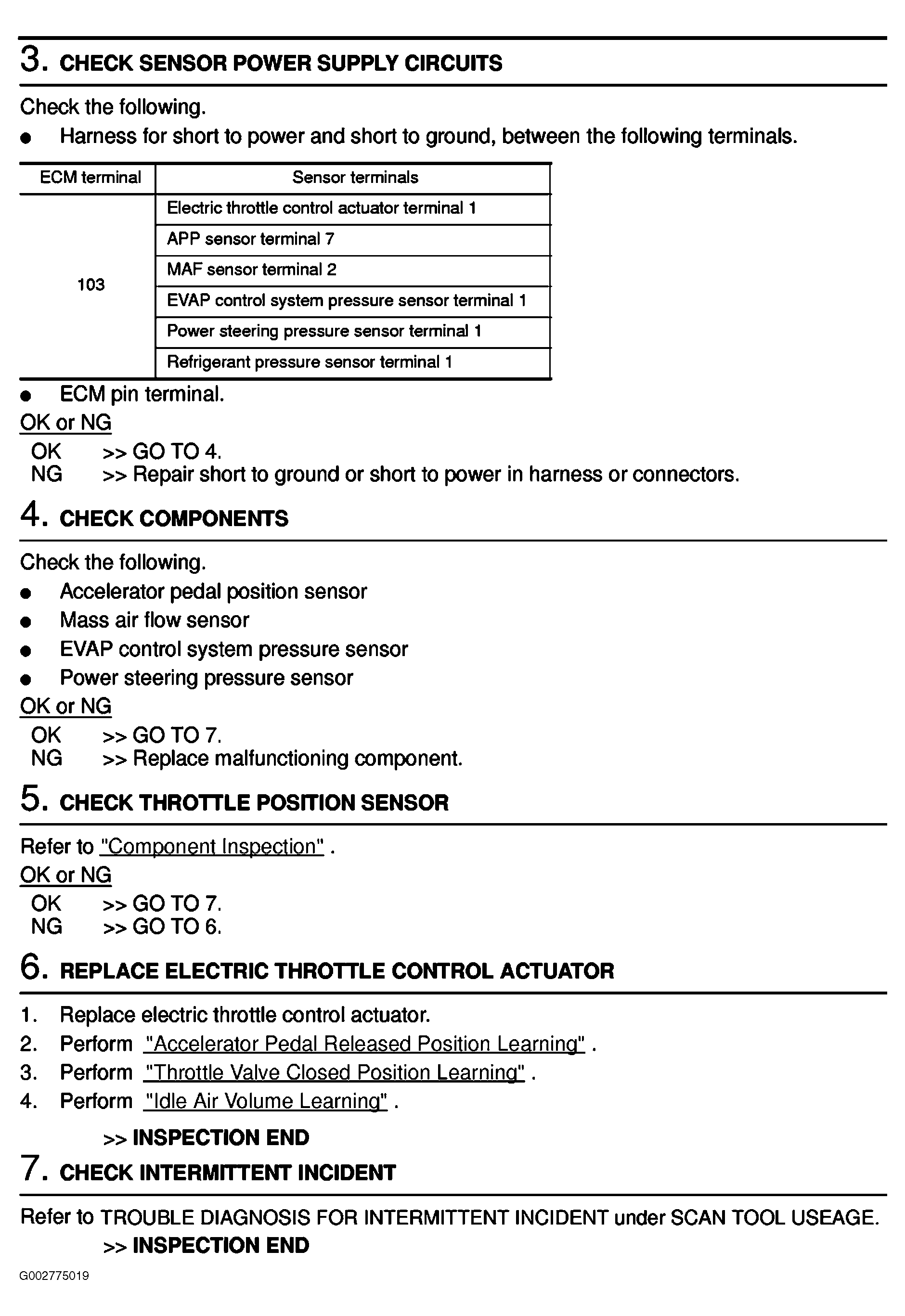

Fig 2: Diagnostic Procedure (Steps 3-7)

Courtesy of NISSAN MOTOR CO., U.S.A.
