Diagnostic Procedure

For diagnostic procedure see Fig 1 and Fig 2 .

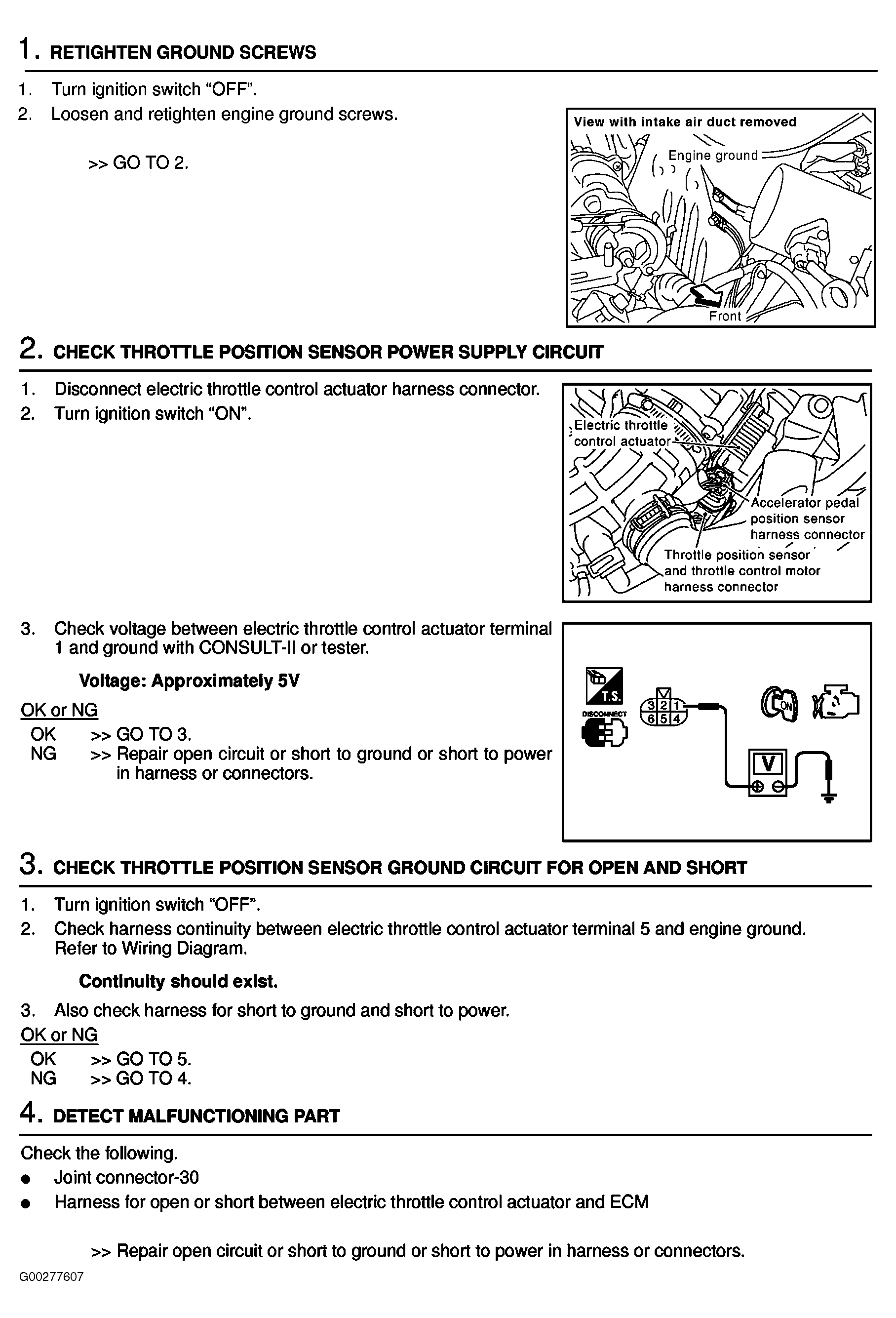

Fig 1: Diagnostic Procedure (Steps 1-4)

Courtesy of NISSAN MOTOR CO., U.S.A..

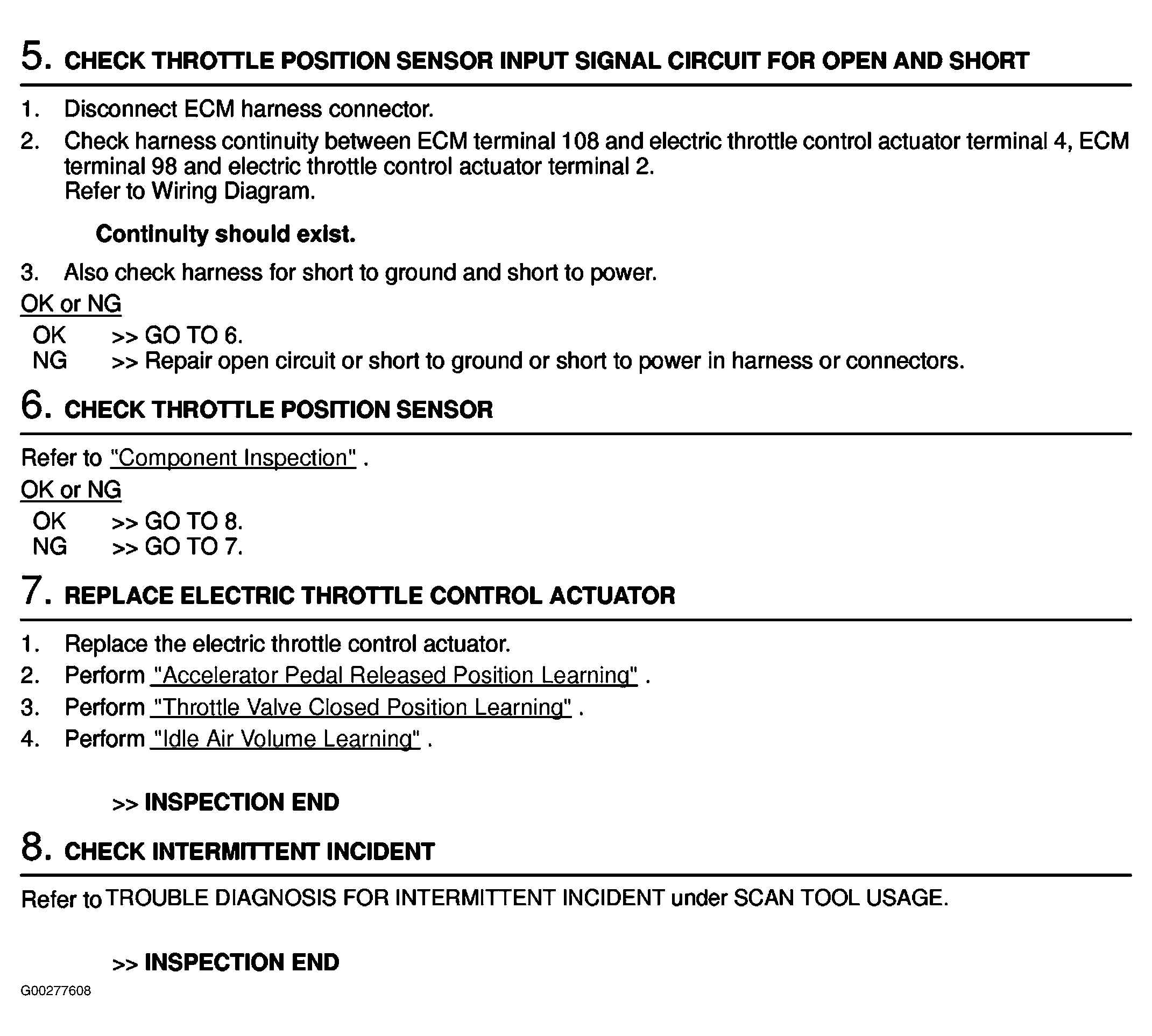

Fig 2: Diagnostic Procedure (Steps 5-8)

Courtesy of NISSAN MOTOR CO., U.S.A..
