Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Automatic Transaxle
›
A/T Control System
›
Control Valve
Control Valve

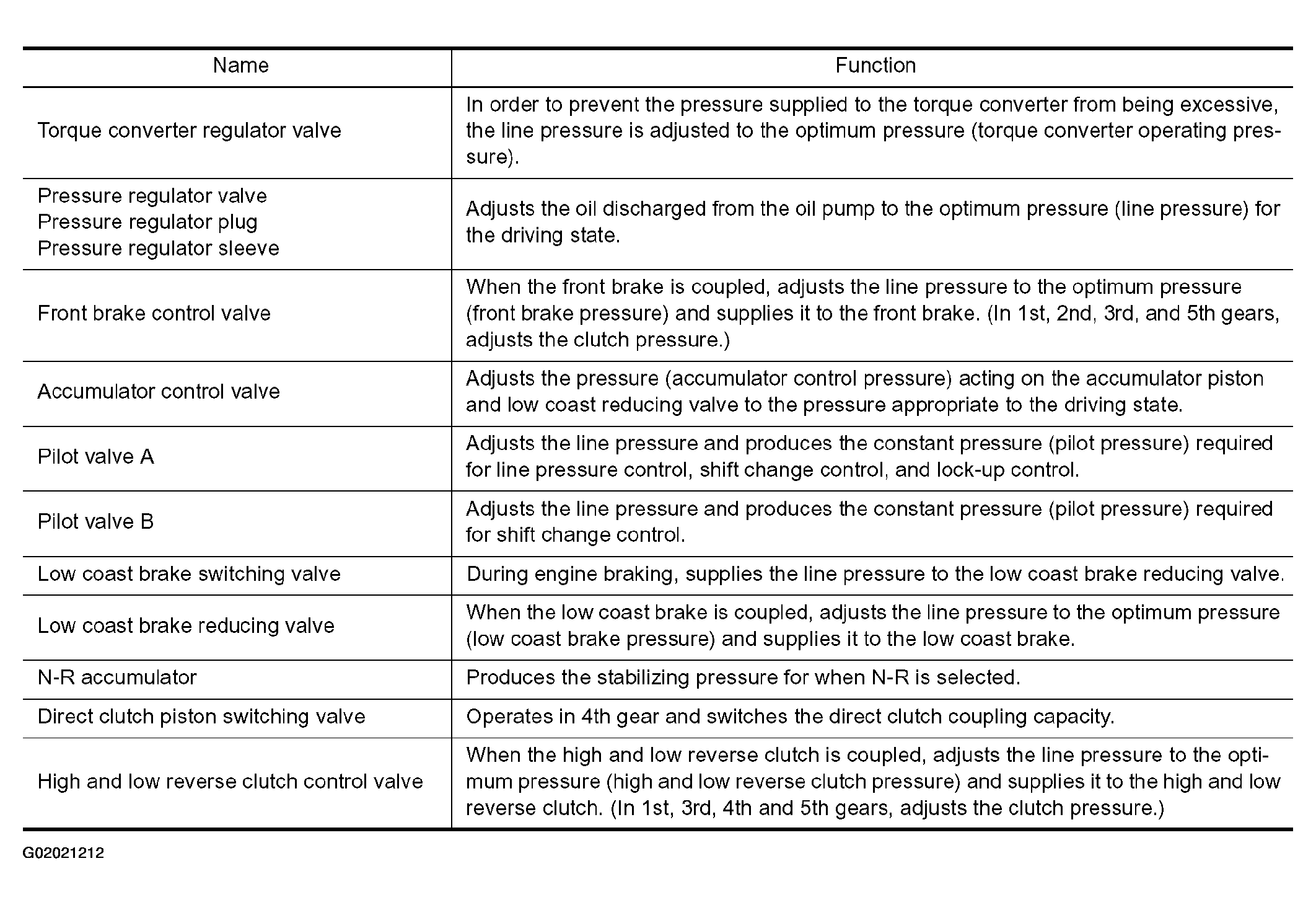

Fig 1: Control Valve Function Chart (1 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

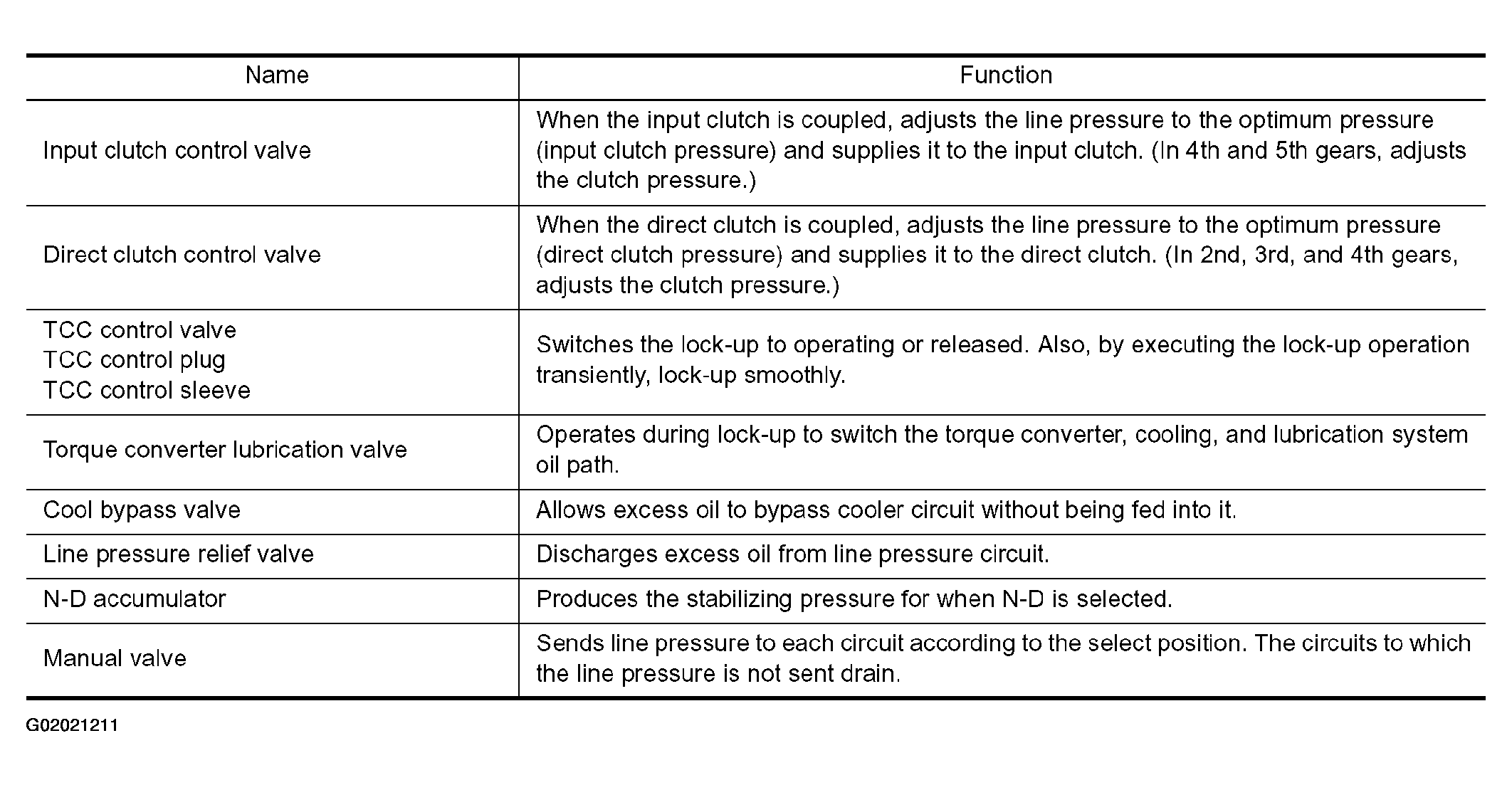

Fig 2: Control Valve Function Chart (2 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

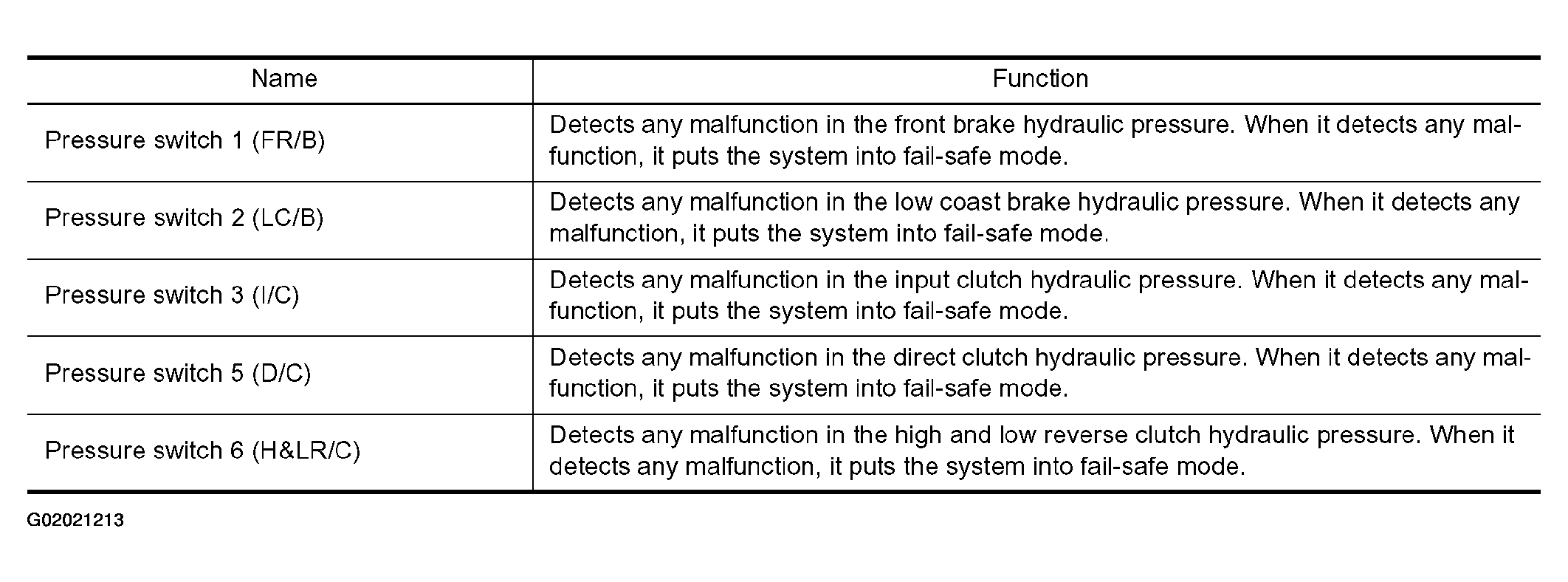

Fig 3: Pressure Switch Function Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
