Automatic Transaxle: Overhaul: Components

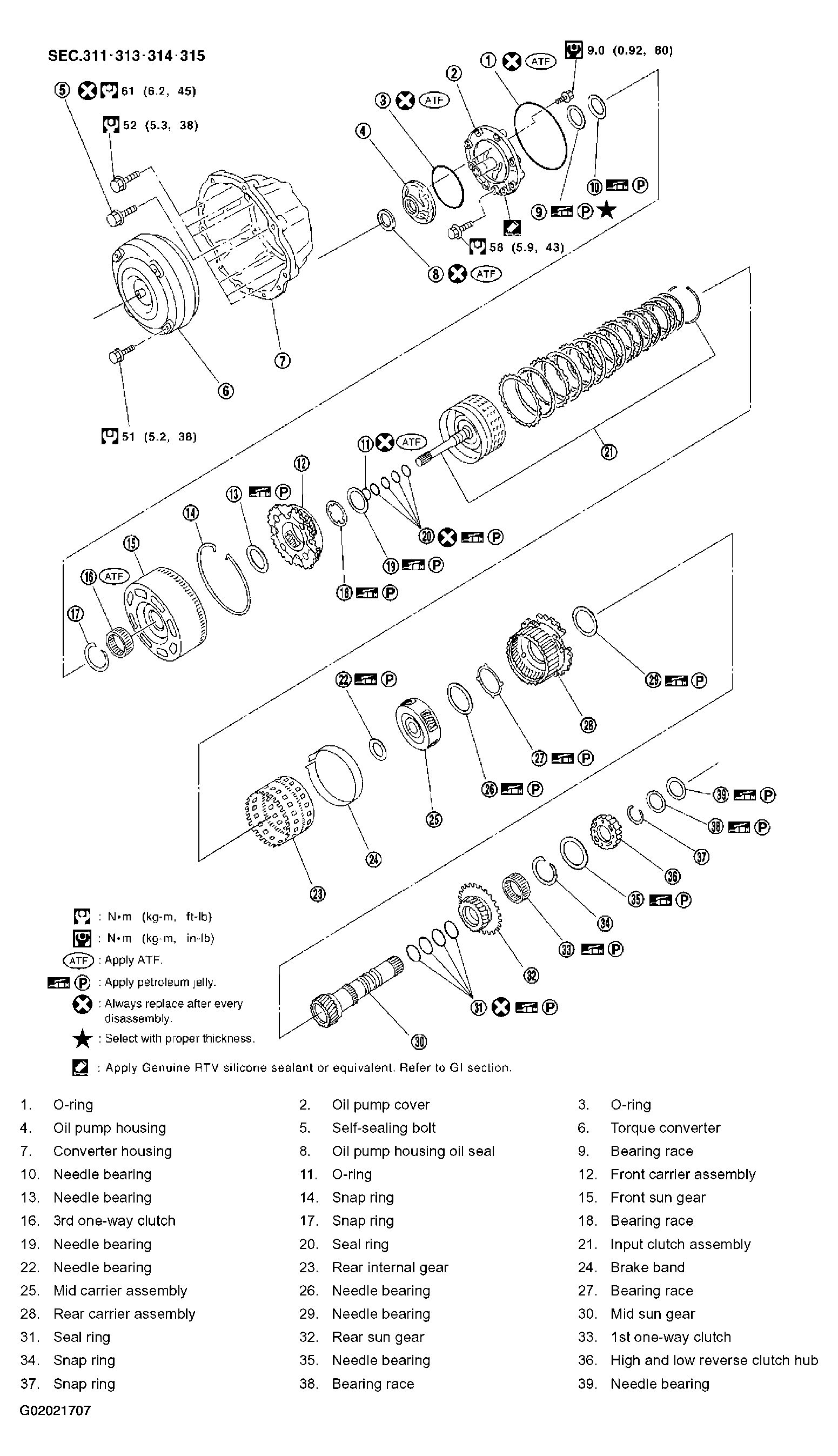

Fig 1: Overhauling Automatic Transmission - Exploded View (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

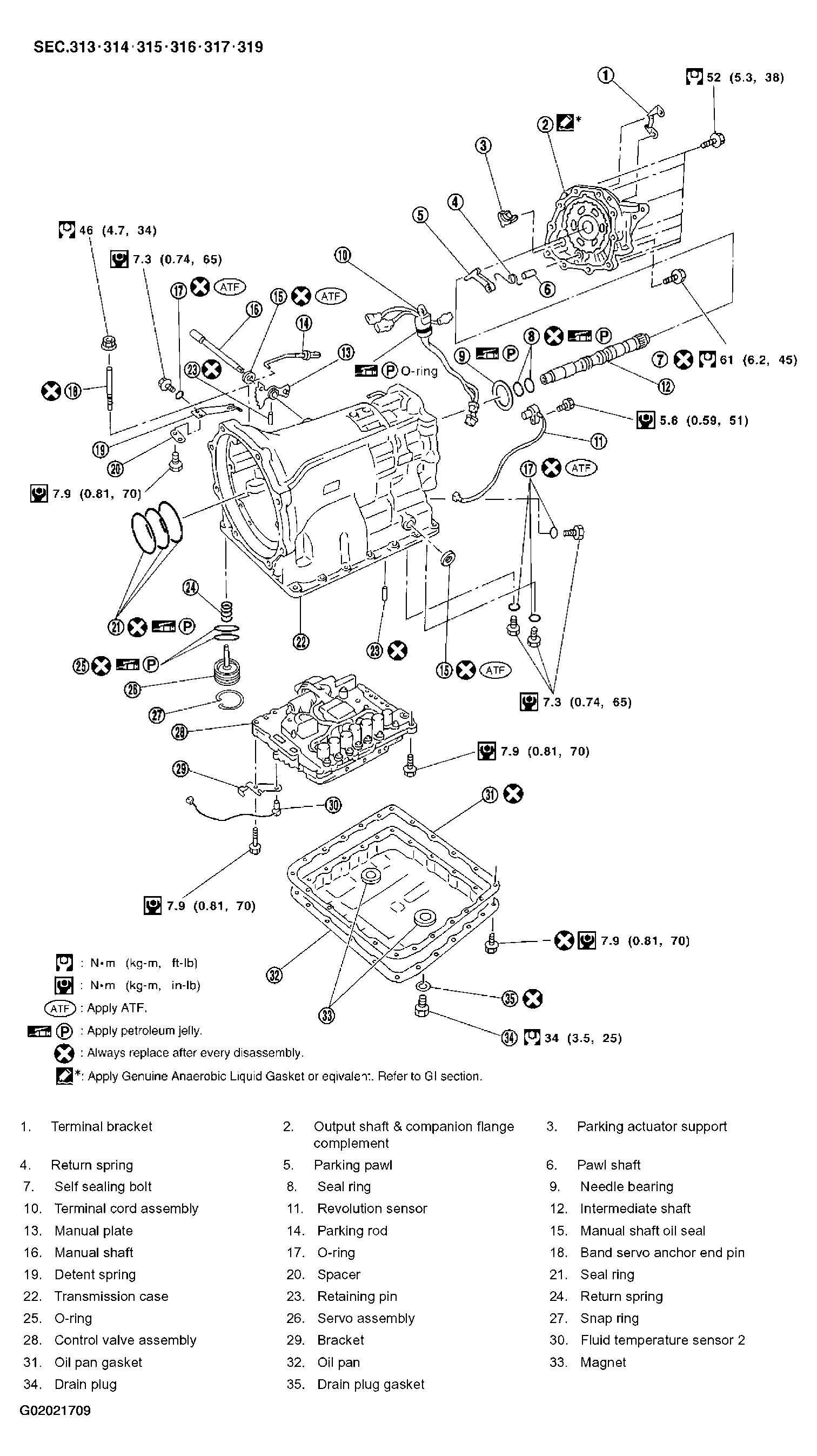

Fig 2: Overhauling Automatic Transmission - Exploded View (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

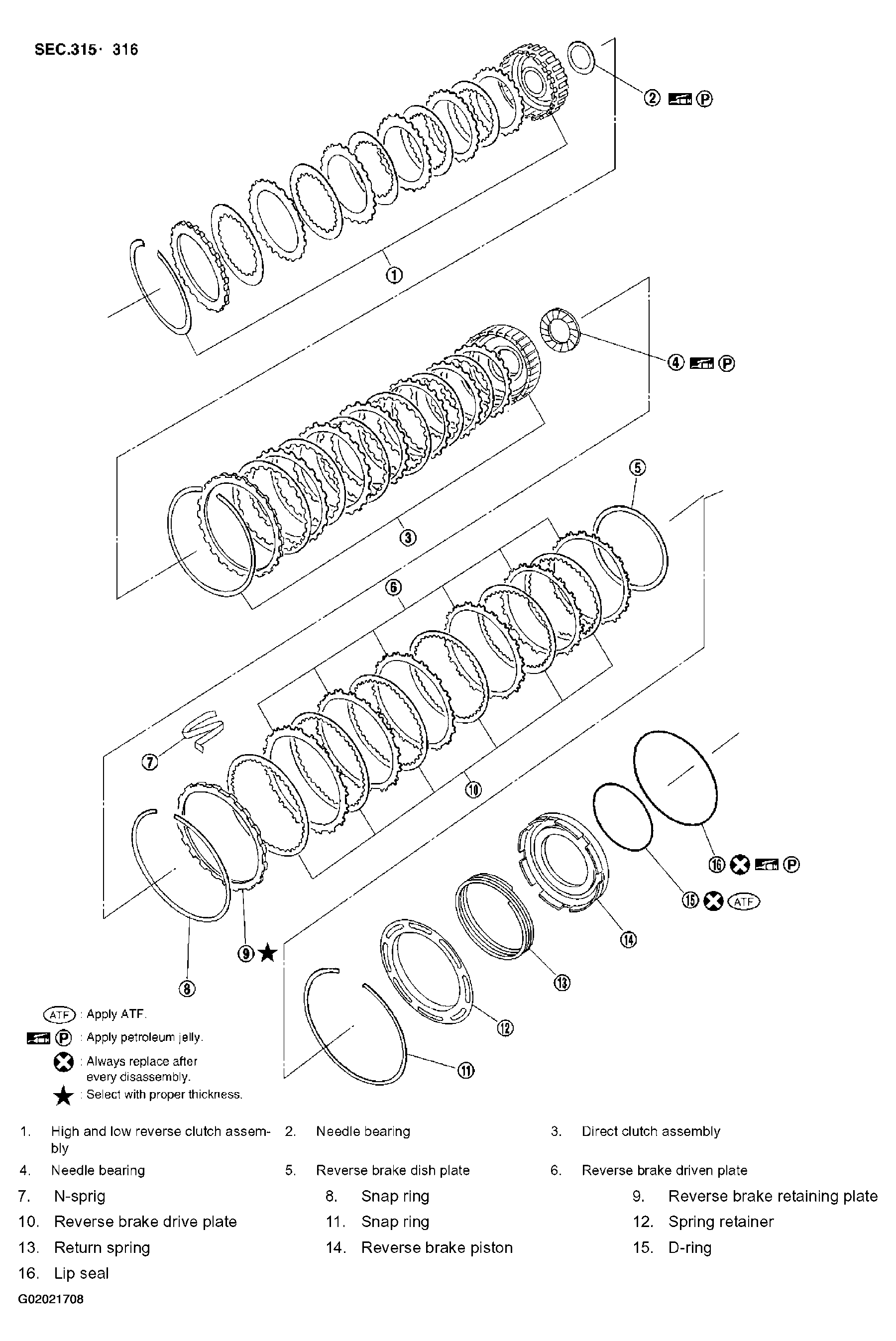

Fig 3: Overhauling Automatic Transmission - Exploded View (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
