Precautions
›
Precautions for A/T Assembly Replacement
›
EEPROM Erasing Patterns
EEPROM Erasing Patterns

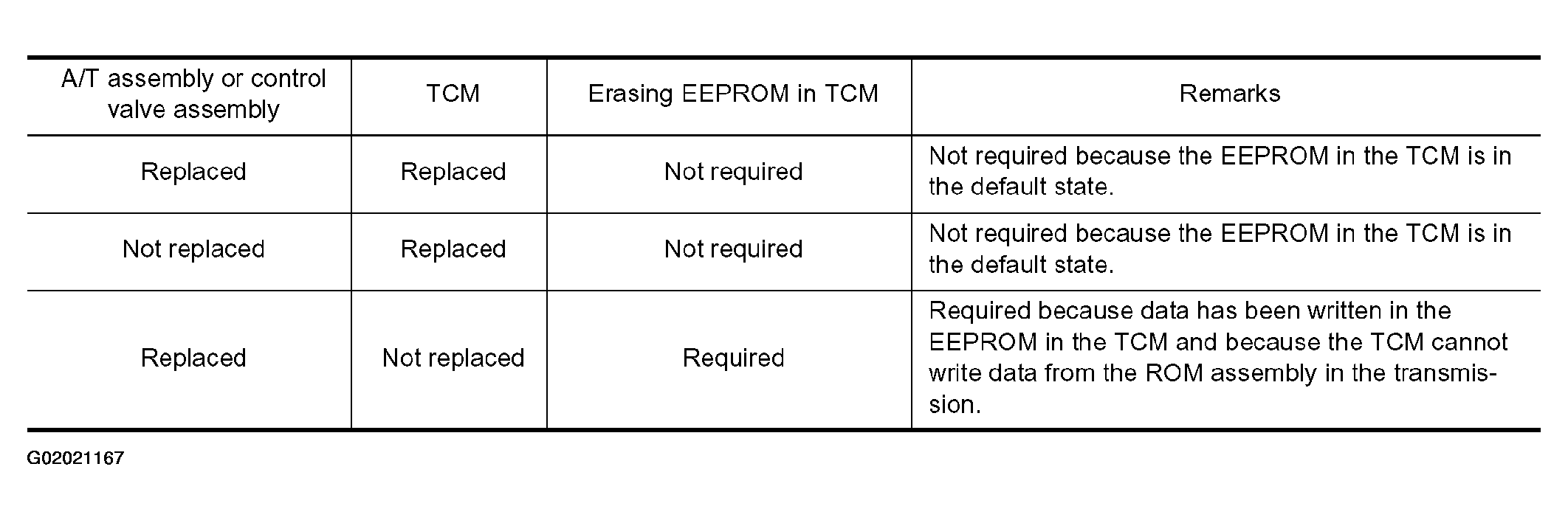

Fig 1: EEPROM Erasing Pattern Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
