Switch Operation

The system is operated by a master ON/OFF switch and four control switches, all mounted on the steering wheel

Fig 1: Locating ON/OFF Switch & Four Control Switches

Courtesy of NISSAN MOTOR CO., U.S.A.

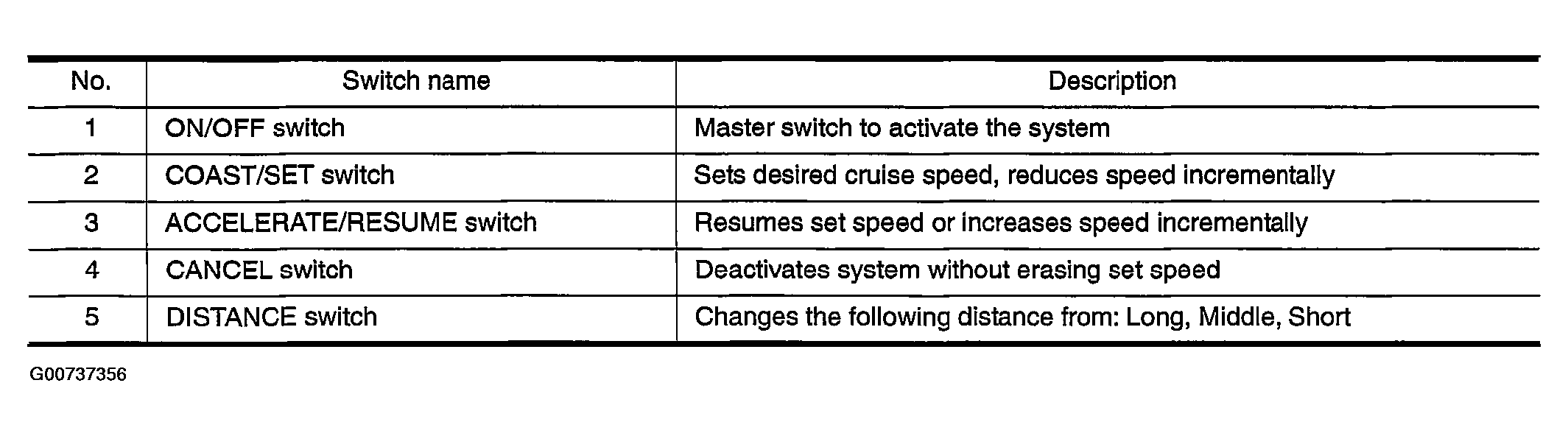

Fig 2: Switch Location & Description Table

Courtesy of NISSAN MOTOR CO., U.S.A.
