Terminals And Reference Value For ICC Unit

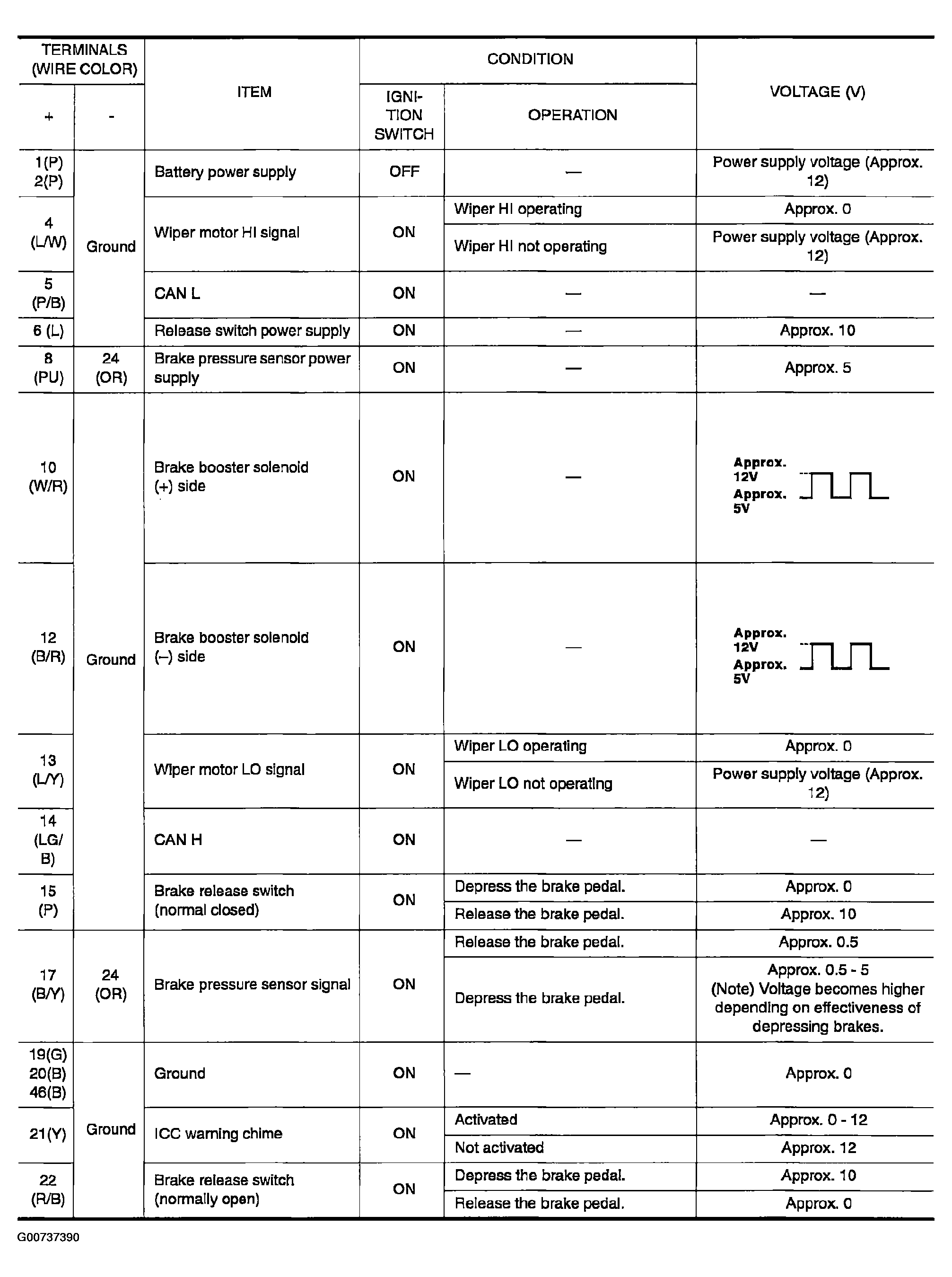

Fig 1: Terminals & Reference Value for ICC Unit Table (1 of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

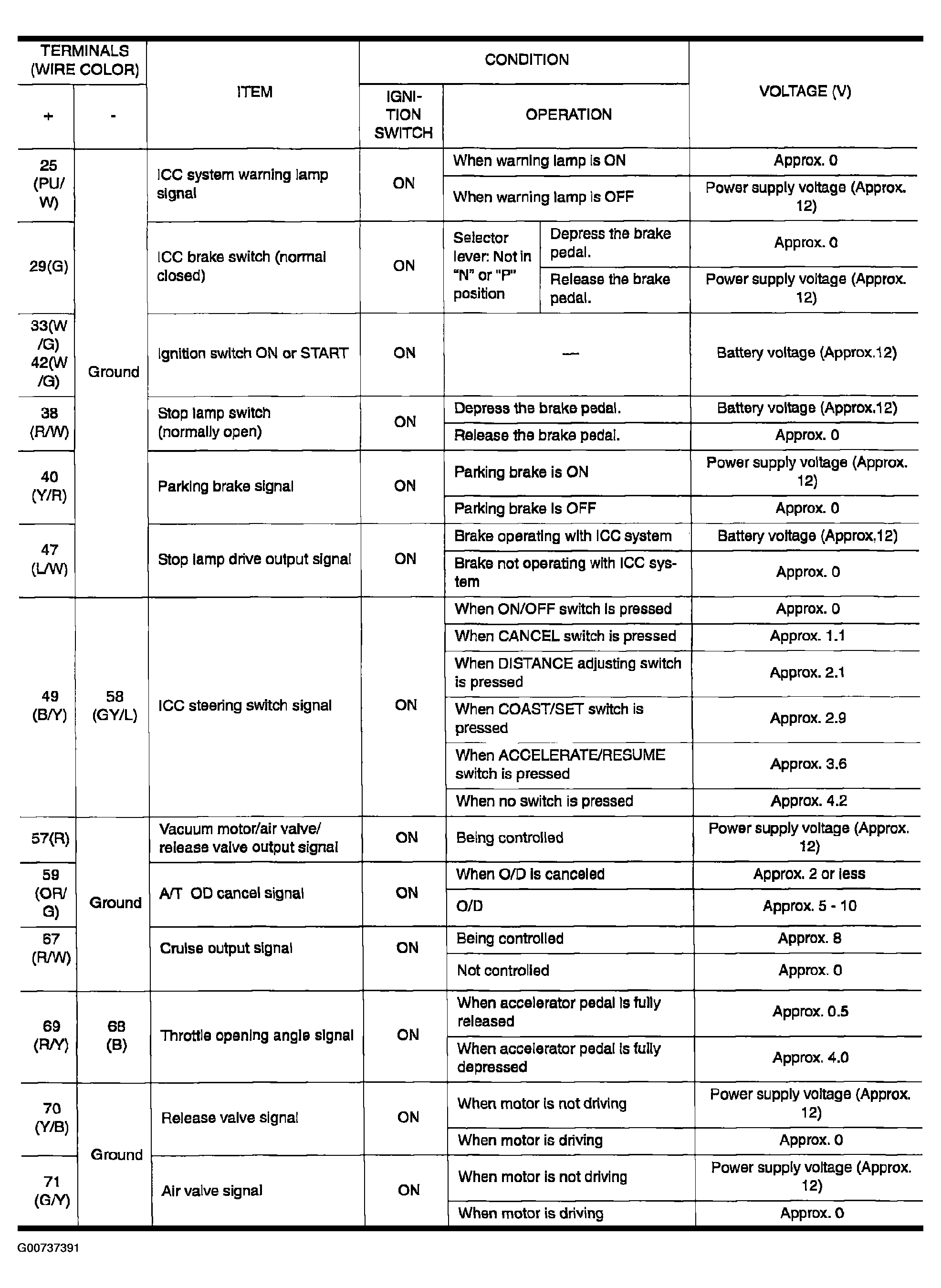

Fig 2: Terminals & Reference Value for ICC Unit Table (2 of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

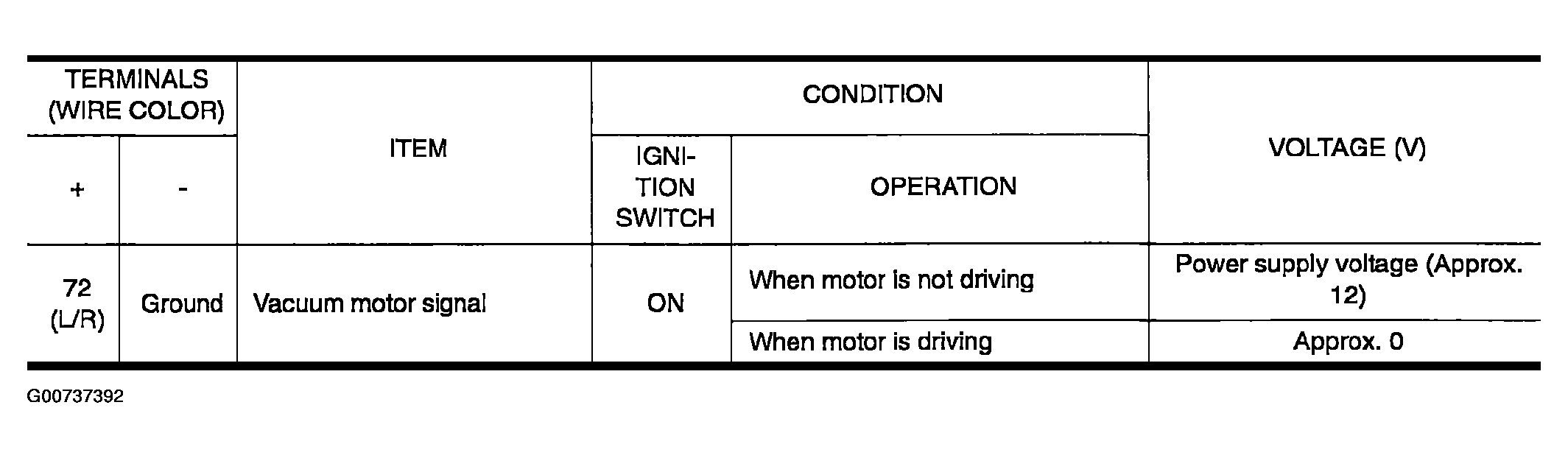

Fig 3: Terminals & Reference Value for ICC Unit Table (3 of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
