Terminals And Reference Value For ICC Warning Chime
Terminals And Reference Value For ICC Warning Chime

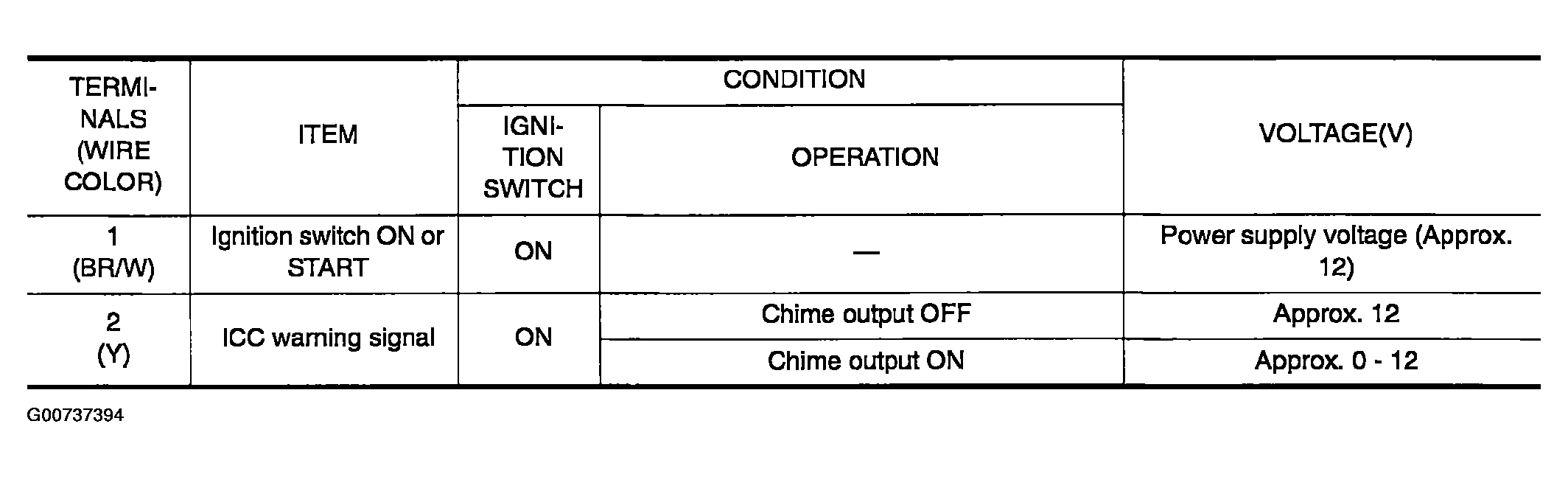

Fig 1: Terminals & Reference Value for ICC Warning Chime Table
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
