Navigation System Schematic
Navigation System Schematic

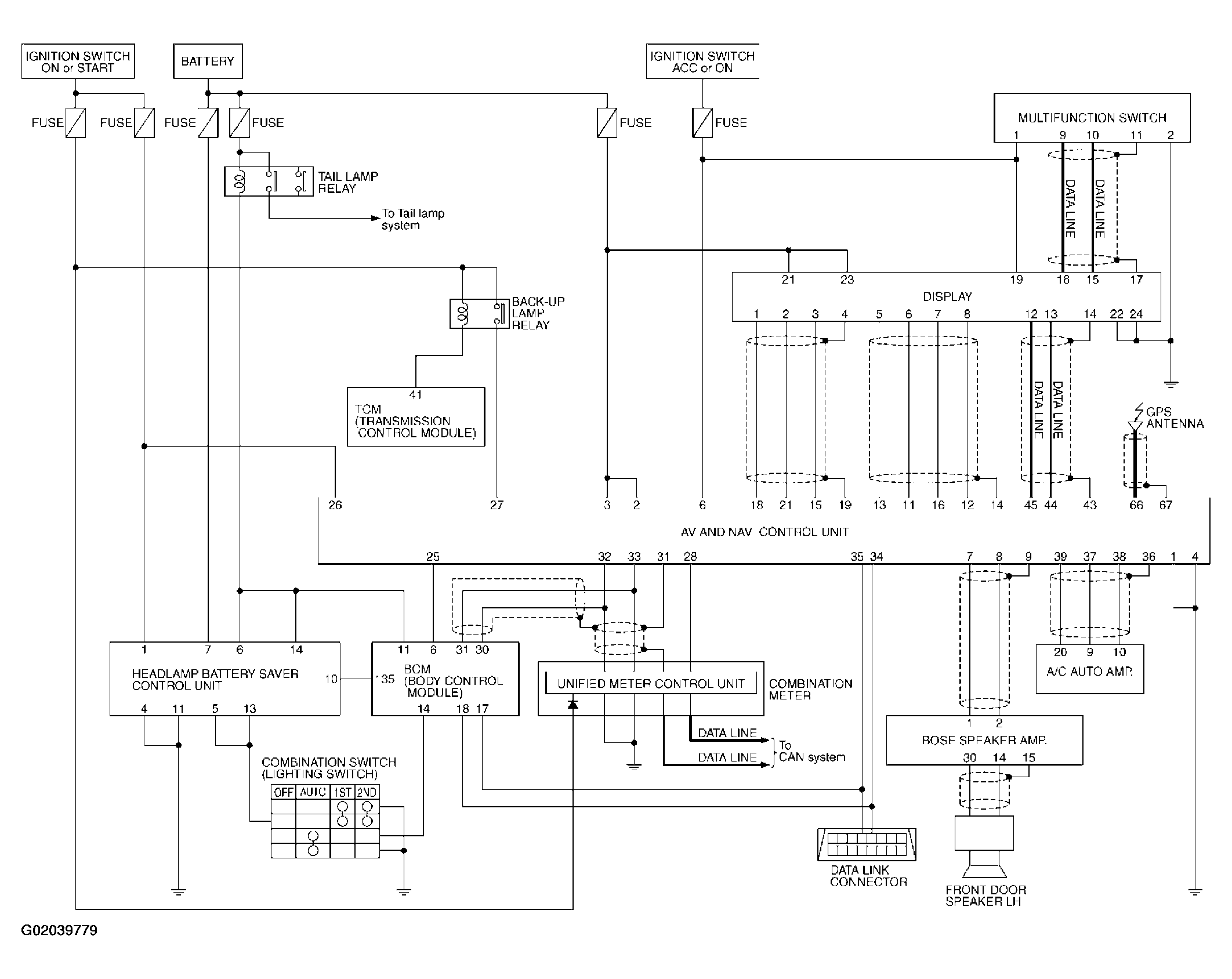

Fig 1: NAVI - Schematic
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
