Remote Keyless Entry System
›
Terminal and Reference Value For Driver Door Control Unit (LCU01)
Terminal and Reference Value For Driver Door Control Unit (LCU01)

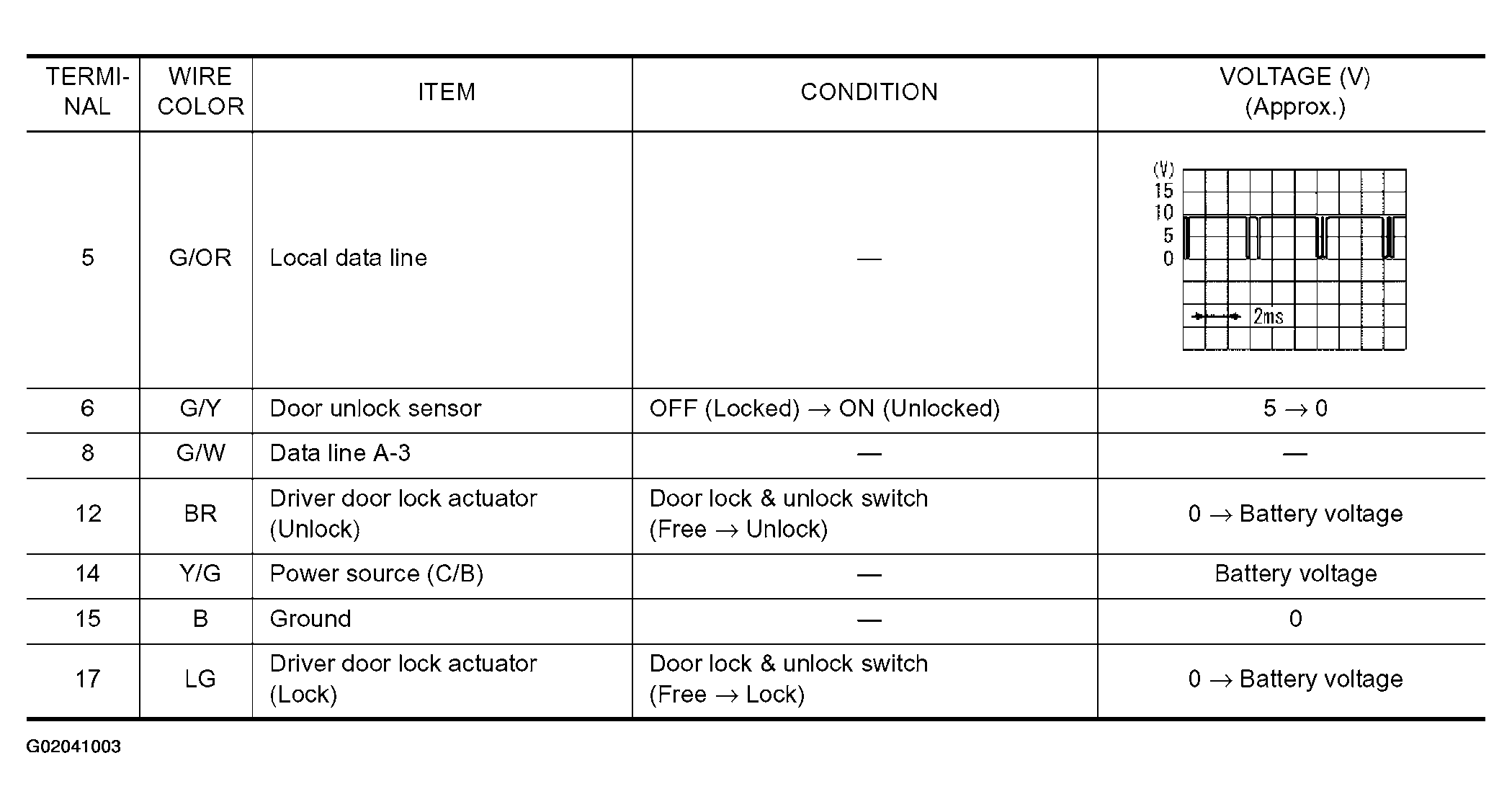

Fig 1: Terminal And Reference Value For Driver Door Control Unit (LCU01)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
