Can Communication
›
System Description
›
For ICC Models
›
Input/Output Signal Chart
Input/Output Signal Chart

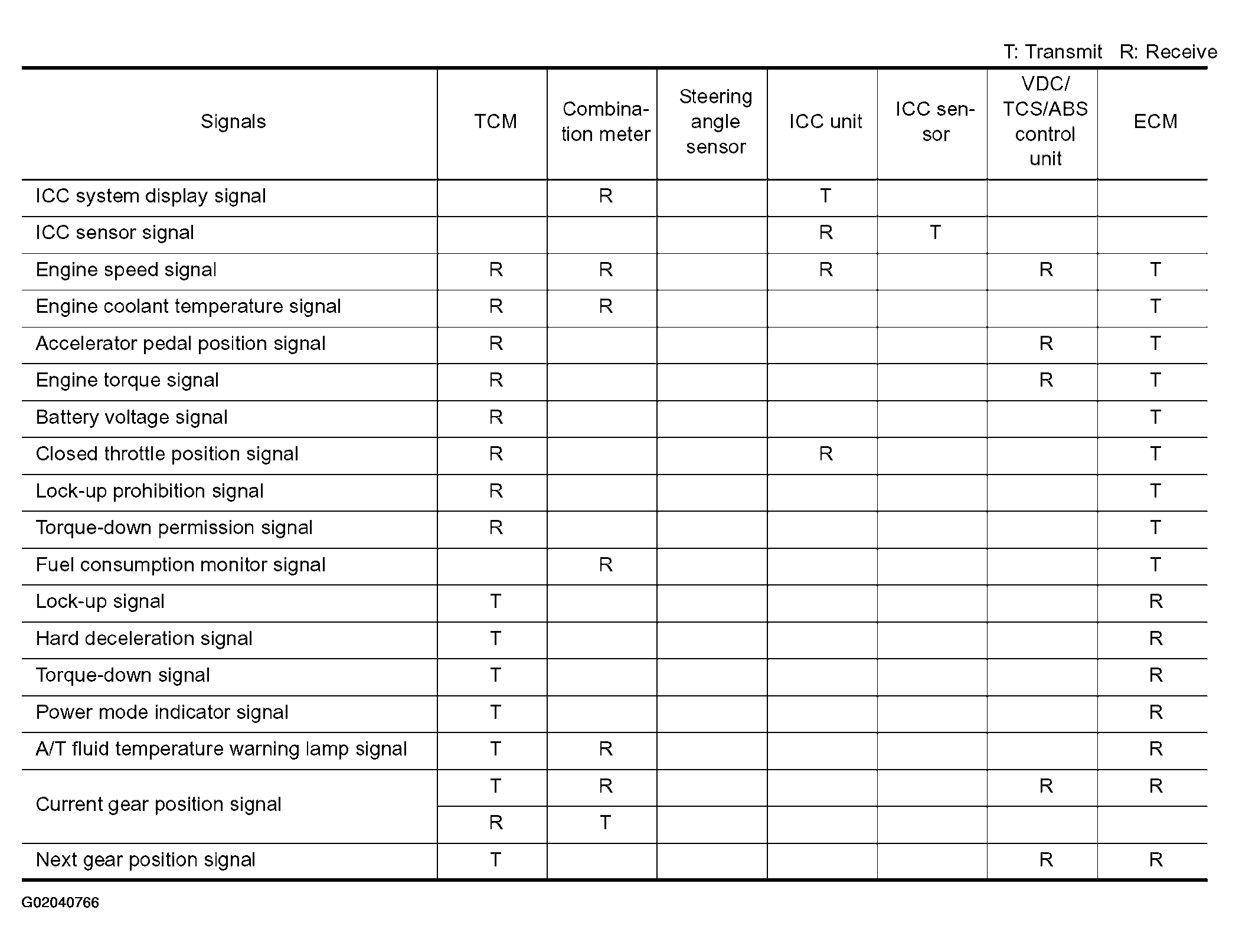

Fig 1: Input/Output Signal Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

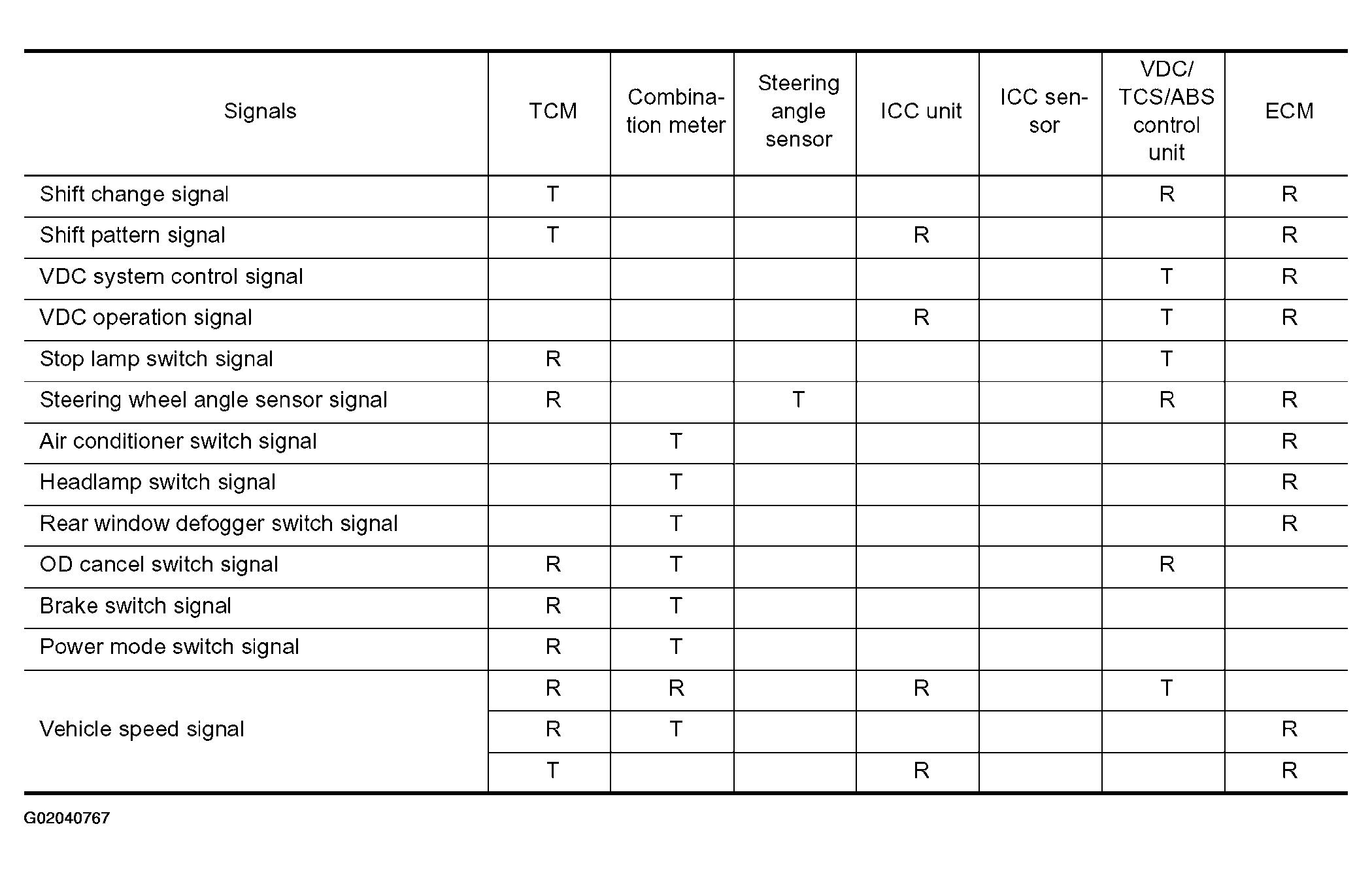

Fig 2: Input/Output Signal Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
