Operation Procedure
- Perform "BASIC INSPECTION " using information from customer.

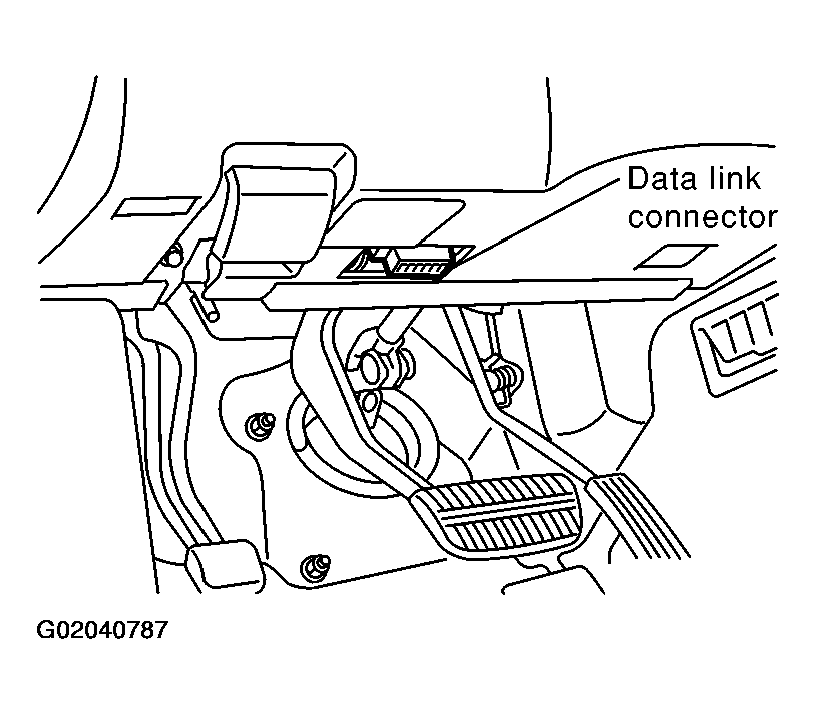

- After ignition switch is turned OFF, connect CONSULT-II and CONSULT-II CONVERTER to data link connector (data link connector is on lower instrument cover).
- Start engine and drive at approximately 30 km/h (19 MPH) for approximately 1 minute.
- After stopping vehicle, with engine still idling, touch "START (NISSAN BASED VHCL)", "VDC", and "SELF-DIAG RESULTS" on CONSULT-II screen in this order.
CAUTION: Just after starting engine, or turning ignition switch ON, "VDC" may not be displayed on system selection screen even if "START (NISSAN BASED VHCL)" is touched. In this case, start self-diagnosis again from step 2. If it cannot be shown after several attempts, VDC/TCS/ABS control unit may have malfunctioned. Repair or replace control unit.
- Self-diagnosis result is displayed. (If necessary, touch "PRINT" to print self-diagnosis result.)
- When "NO FAILURE" is shown, check ABS warning lamp, VDC OFF indicator lamp, SLIP indicator lamp. Refer to "FOR FAST AND ACCURATE DIAGNOSIS ".
- CONSULT-II self-diagnosis results are displayed without regard to occurrence timing. In some cases later ones (timing value is small) appear on next screen.
- Go to appropriate "Inspection" chart according to "Display Item List", and repair or replace as necessary.
- Start engine and drive at approximately 30 km/h (19 MPH) for approximately 1 minute.CAUTION:
- Check again to make sure that there is no malfunction on other parts.
- Turn ignition switch OFF to prepare for erasing memory.
- Start engine and touch "START (NISSAN BASED VHCL)", "VDC", "SELF-DIAGNOSIS RESULTS", and "ERASE MEMORY" on CONSULT-II screen in this order to erase memory.CAUTION: If memory cannot be erased, go to step 6 .
- Drive vehicle at approximately 30 km/h (19 MPH) and check that ABS warning lamp, VDC OFF indicator lamp, and SLIP indicator lamp stay off.
