Component Installation Location
Component Installation Location

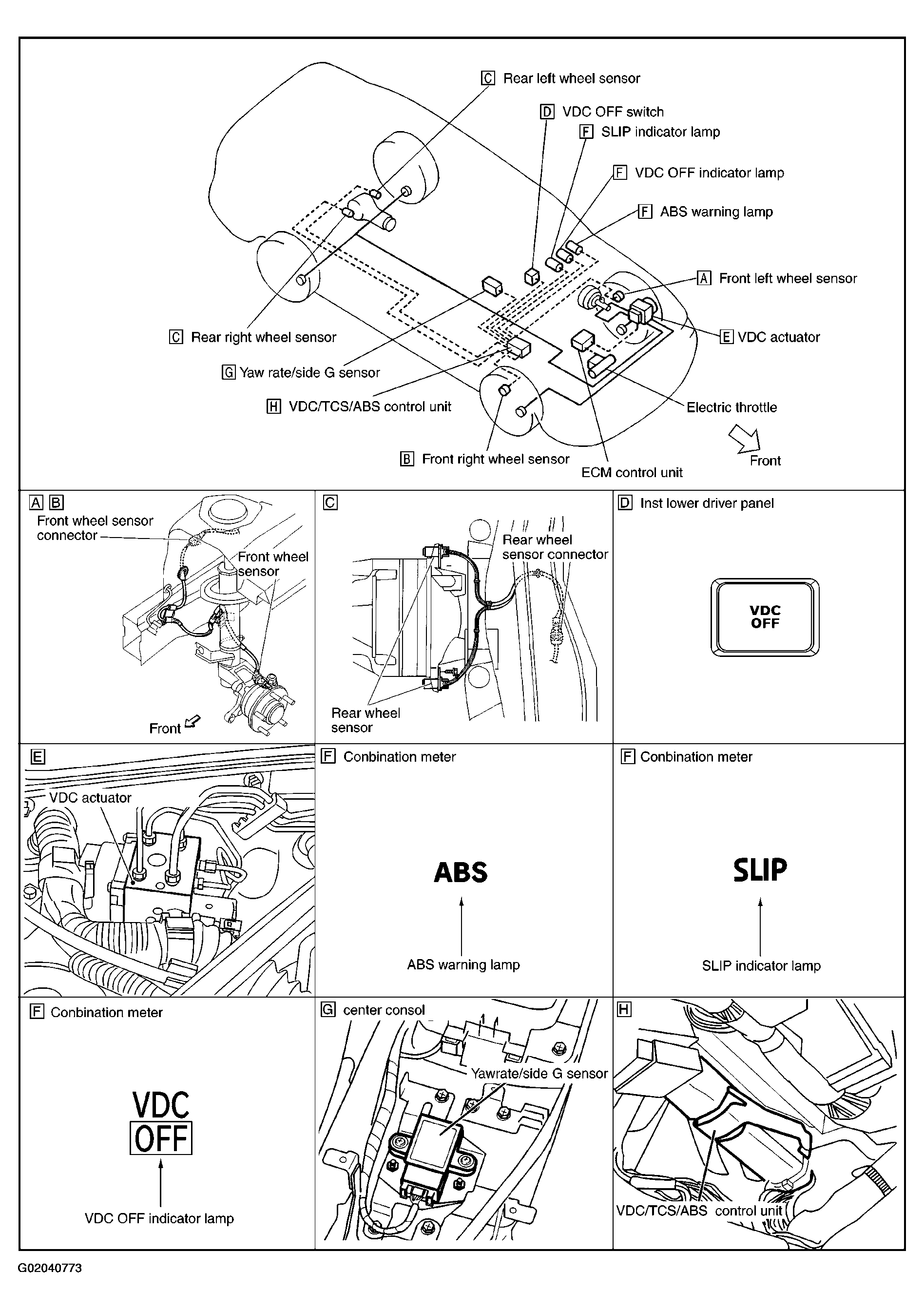

Fig 1: Installing Component Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
