Inspection 4 Pressure Sensor and Circuit Between Pressure Sensor and VDC/TCS/ABS Control Unit

Inspection Procedure

1. CHECKING SELF-DIAGNOSIS RESULTS (1)

   Check self-diagnosis results.

   Fig 1: Checking Self-Diagnosis Results - Pressure Sensor

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Does "PRESSURE SENSOR" appear on self-diagnosis display?

   1. YES >> GO TO 2.
   2. NO >> Inspection is completed.
   Fig 2: Inspecting Pressure Sensor And Circuit Between Pressure Sensor And VDC/TCS/ABS Control Unit

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. CHECKING SELF-DIAGNOSIS RESULTS (2)
   1. Disconnect pressure sensor VDC actuator connector E21 and VDC/TCS/ABS control unit connectors E218. Then reconnect them securely.
   2. Perform VDC/TCS/ABS control unit self-diagnosis again.

   OK or NG

   1. OK >> Poor connection of connectors. Repair or replace suspect connector. Perform self-diagnosis again.
   2. NG >> GO TO 3.
3. CHECKING PRESSURE SENSOR CIRCUIT
   1. Disconnect VDC actuator connector E21 pressure sensor and VDC/TCS/ABS control unit connector E218.
   2. Check continuity between VDC/TCS/ABS control unit harness connector E218 and VDC actuator pressure sensor harness connector E21.
      Fig 3: Checking Continuity Between VDC/TCS/ABS Control Unit Harness Connector E218 And VDC Actuator Pressure Sensor Harness Connector E21

      Courtesy of NISSAN MOTOR CO., U.S.A.

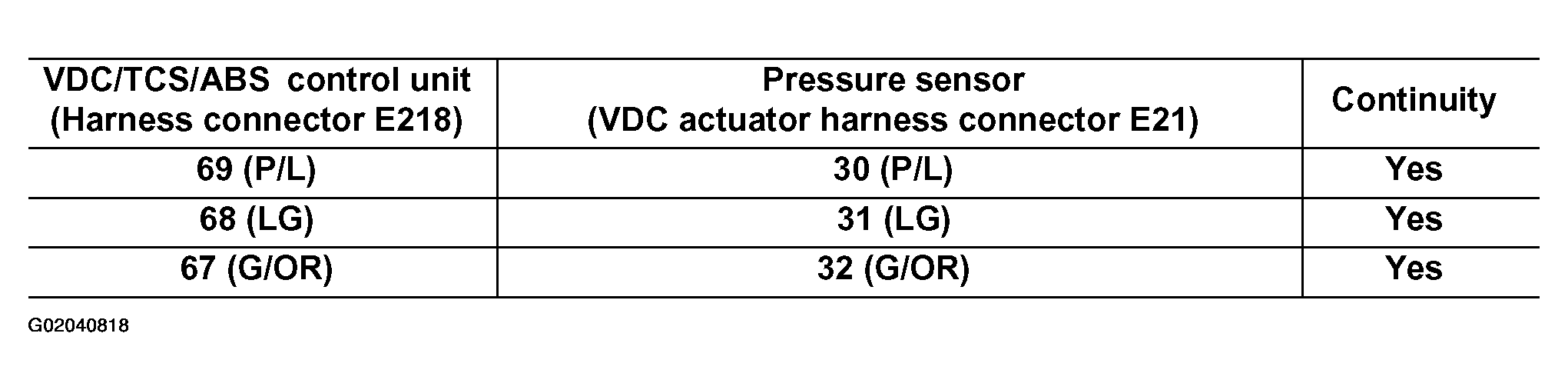

      Fig 4: Continuity Specifications Between VDC/TCS/ABS Control Unit Harness Connector E218 And VDC Actuator Pressure Sensor Harness Connector E21

      Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   1. OK >> GO TO 4.
   2. NG >> Open or short in harness. Repair or replace the suspect harness.
4. CHECKING PRESSURE SENSOR

   Check pressure sensor value on "DATA MONITOR".

   Fig 5: Pressure Sensor Data Monitor

   Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   1. OK >> Perform VDC/TCS/ABS control unit self-diagnosis again.
   2. NG >> Pressure sensor malfunction. Replace VDC actuator (inside pressure sensor).
