Terminals and Reference Value for AV Control Unit

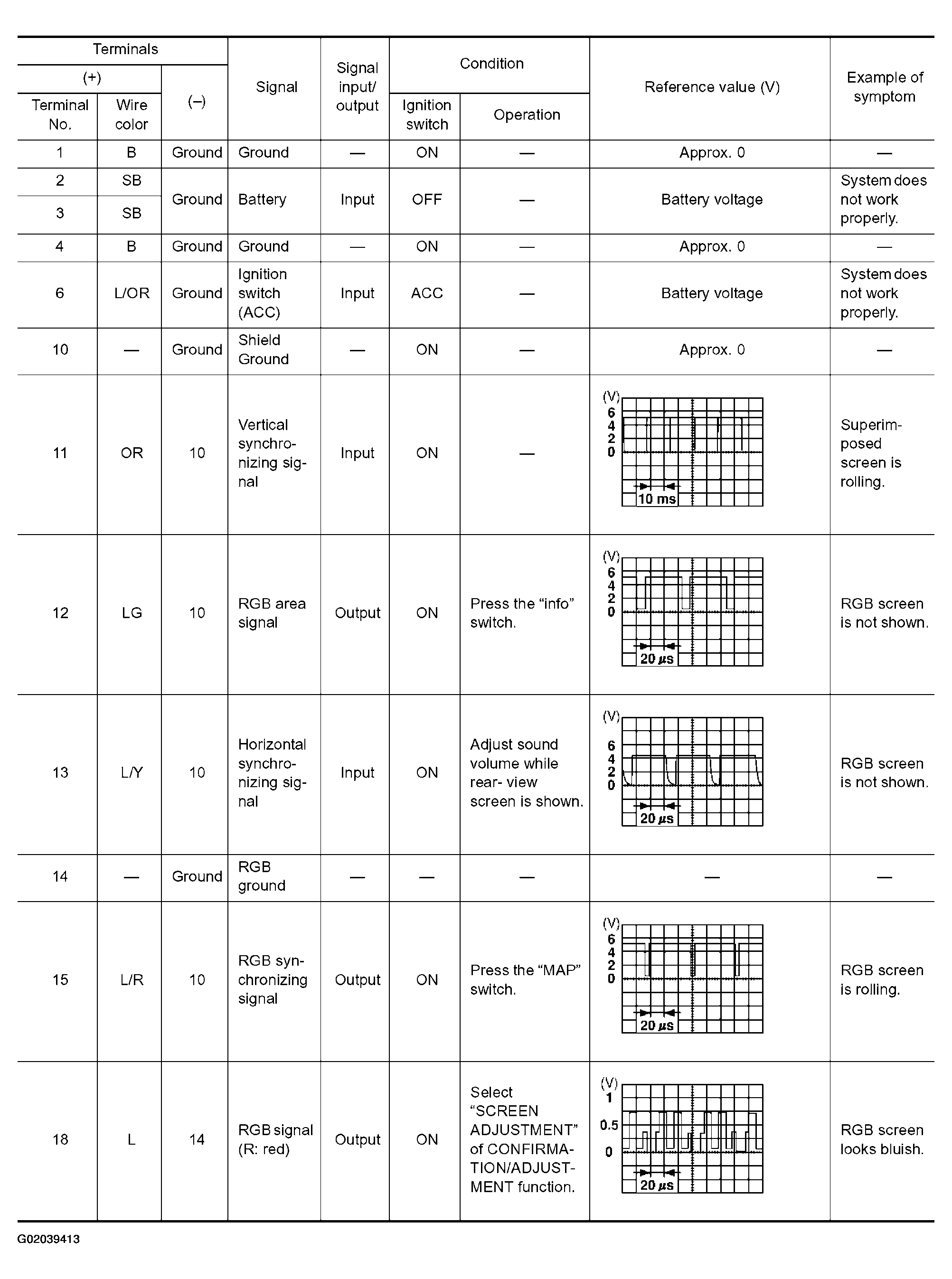

Fig 1: Terminals And Reference Value For AV Control Unit (Terminals 1 - 18)

Courtesy of NISSAN MOTOR CO., U.S.A.

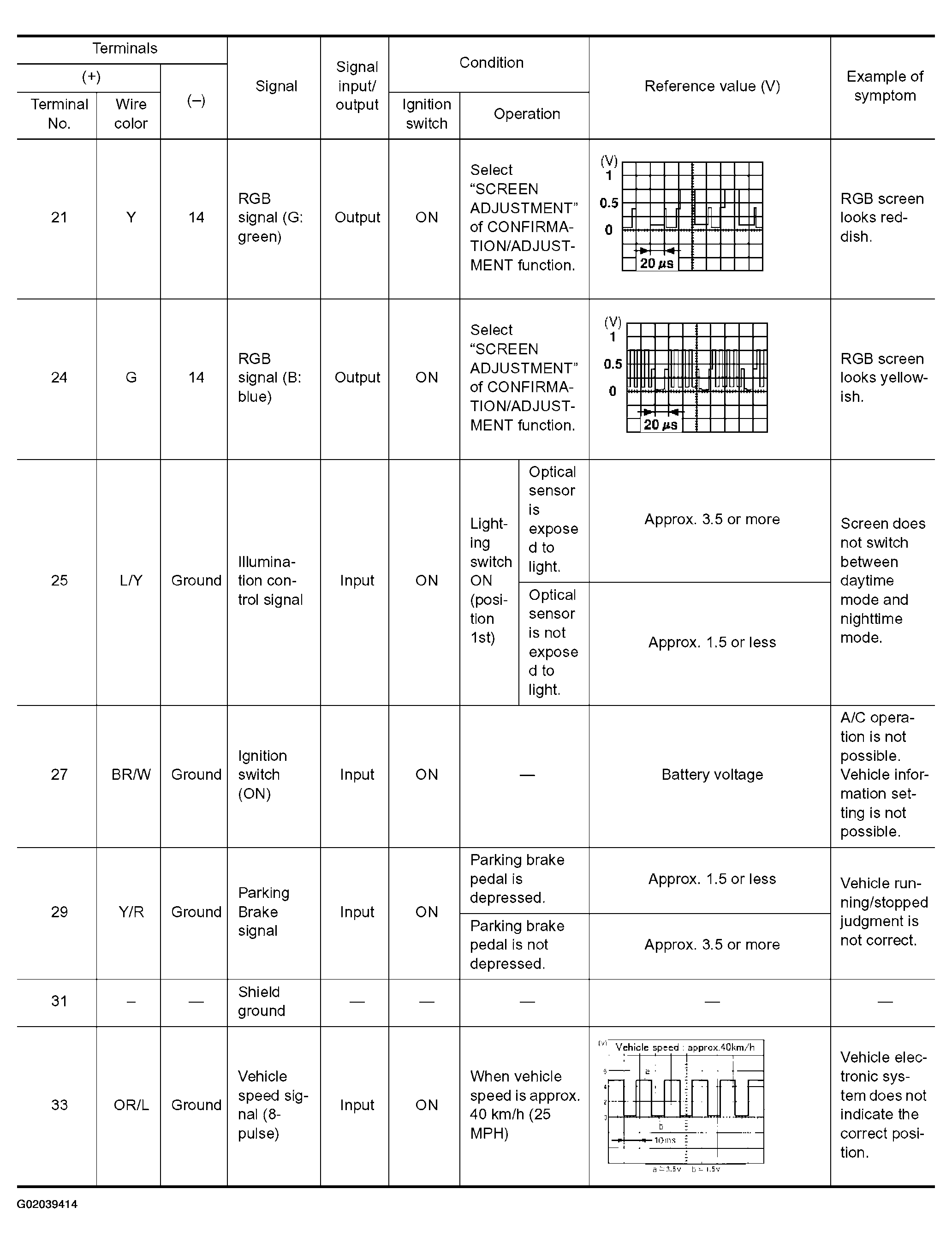

Fig 2: Terminals And Reference Value For AV Control Unit (Terminals 21 - 33)

Courtesy of NISSAN MOTOR CO., U.S.A.

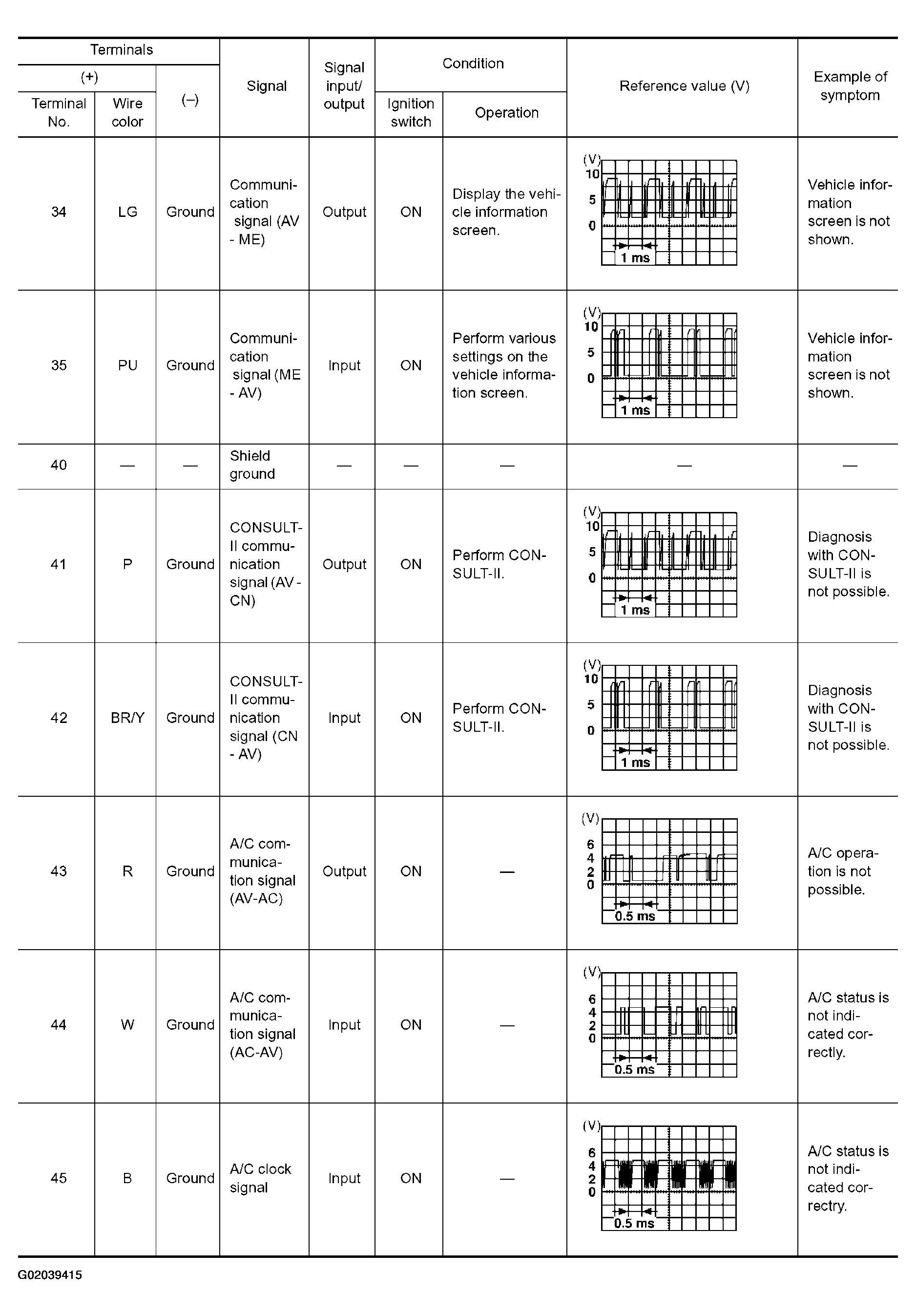

Fig 3: Terminals And Reference Value For AV Control Unit (Terminals 34 - 45)

Courtesy of NISSAN MOTOR CO., U.S.A.

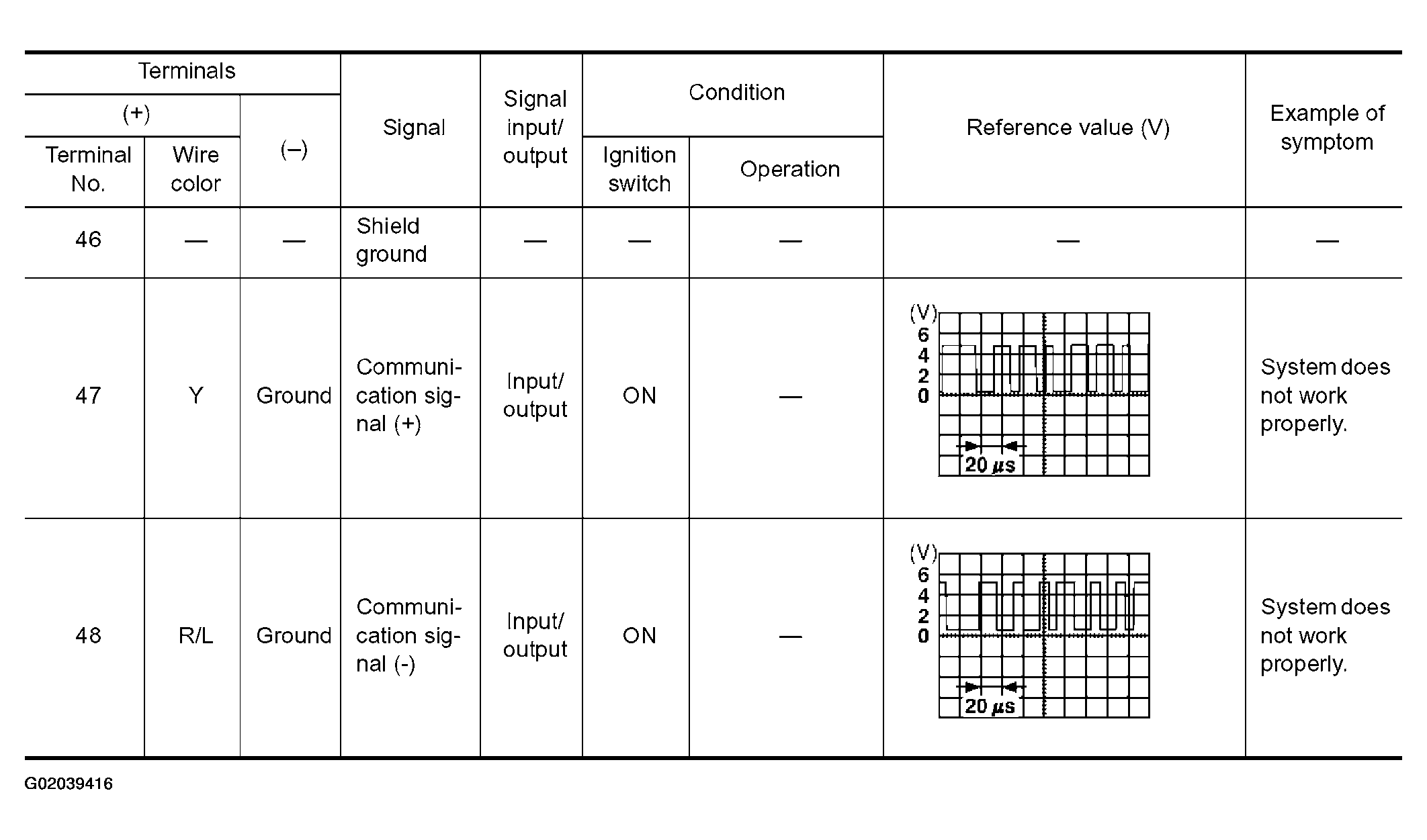

Fig 4: Terminals And Reference Value For AV Control Unit (Terminals 46 - 48)

Courtesy of NISSAN MOTOR CO., U.S.A.
