Terminals and Reference Value for Multifunction Switch

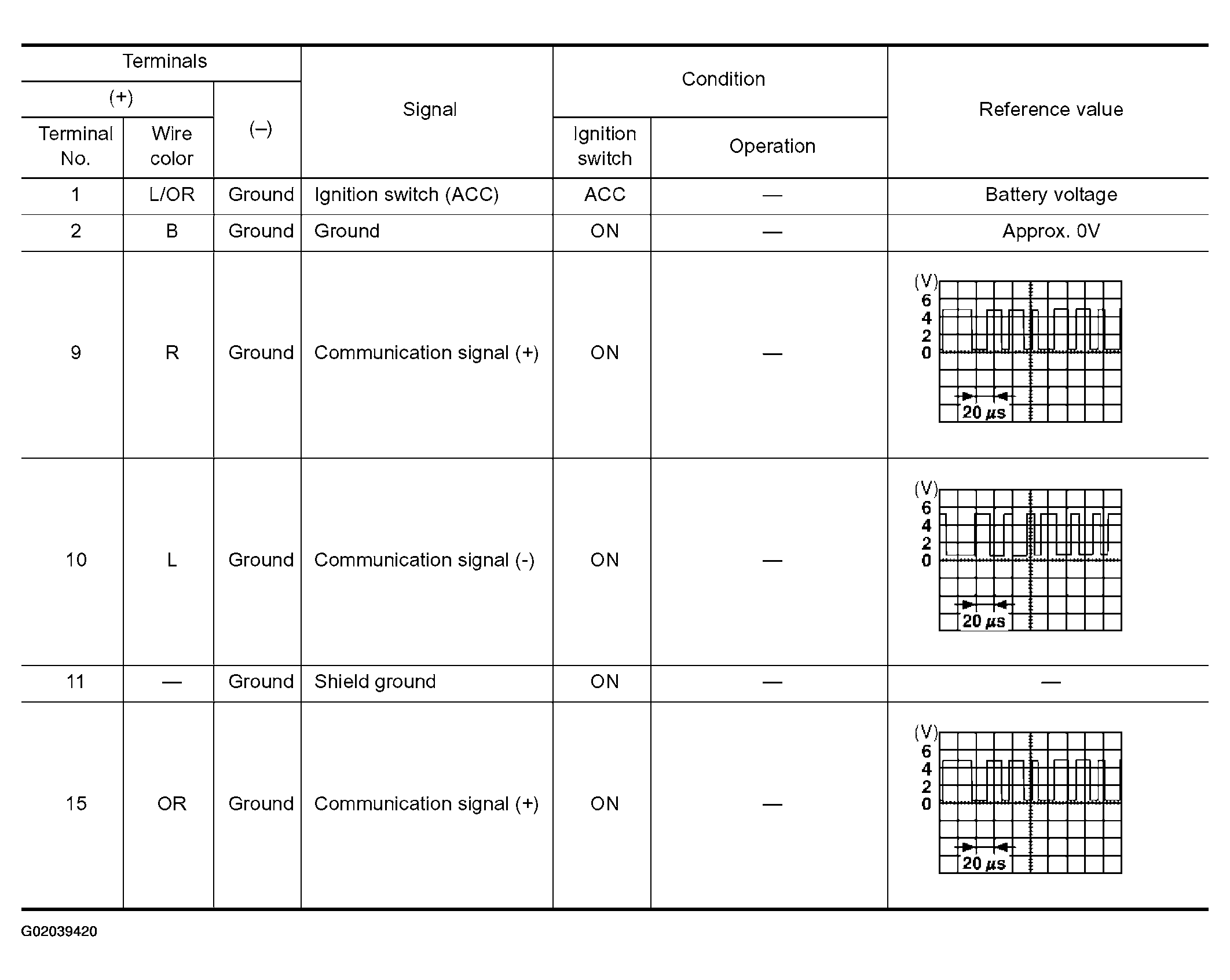

Fig 1: Terminals and Reference Value for Multifunction Switch (Terminals 1 - 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

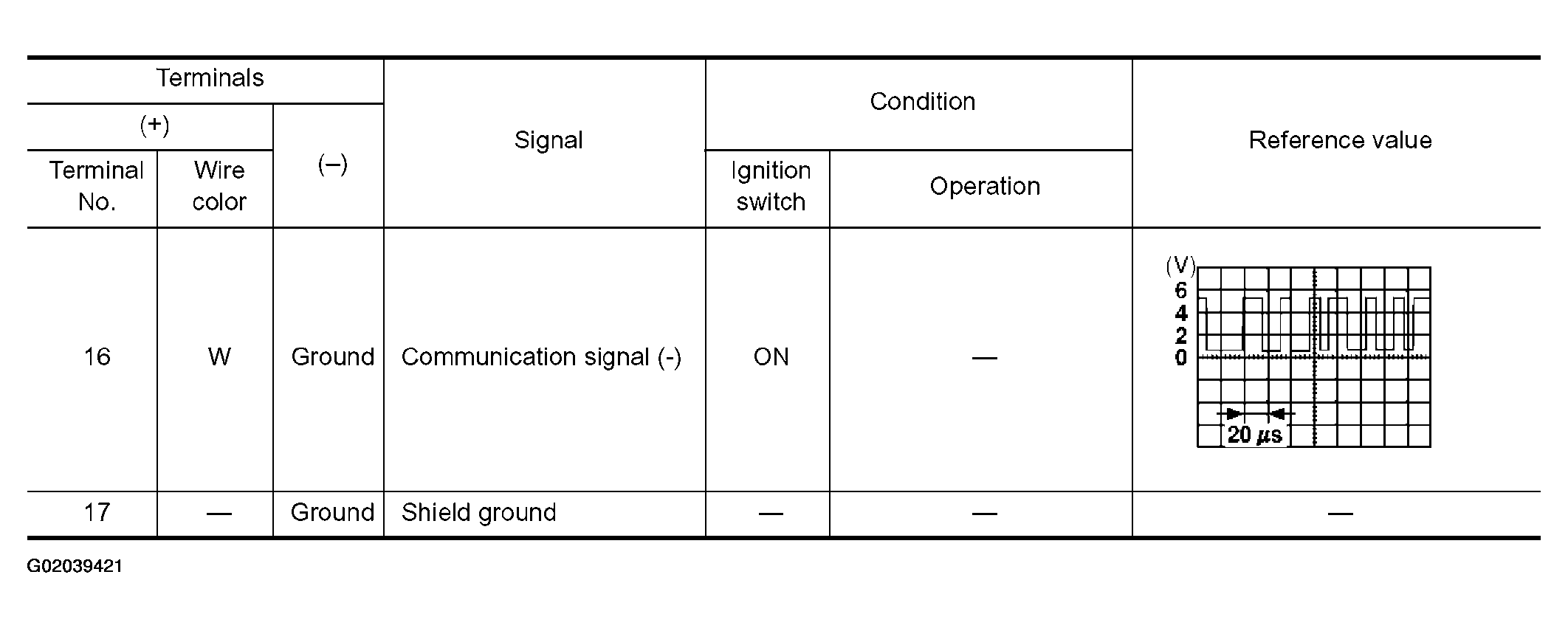

Fig 2: Terminals and Reference Value for Multifunction Switch (Terminals 16 - 17)

Courtesy of NISSAN MOTOR CO., U.S.A.
