Section 198 (Overhaul): Overhaul: Components

WARNING: This page is about a different car, the 2004 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.

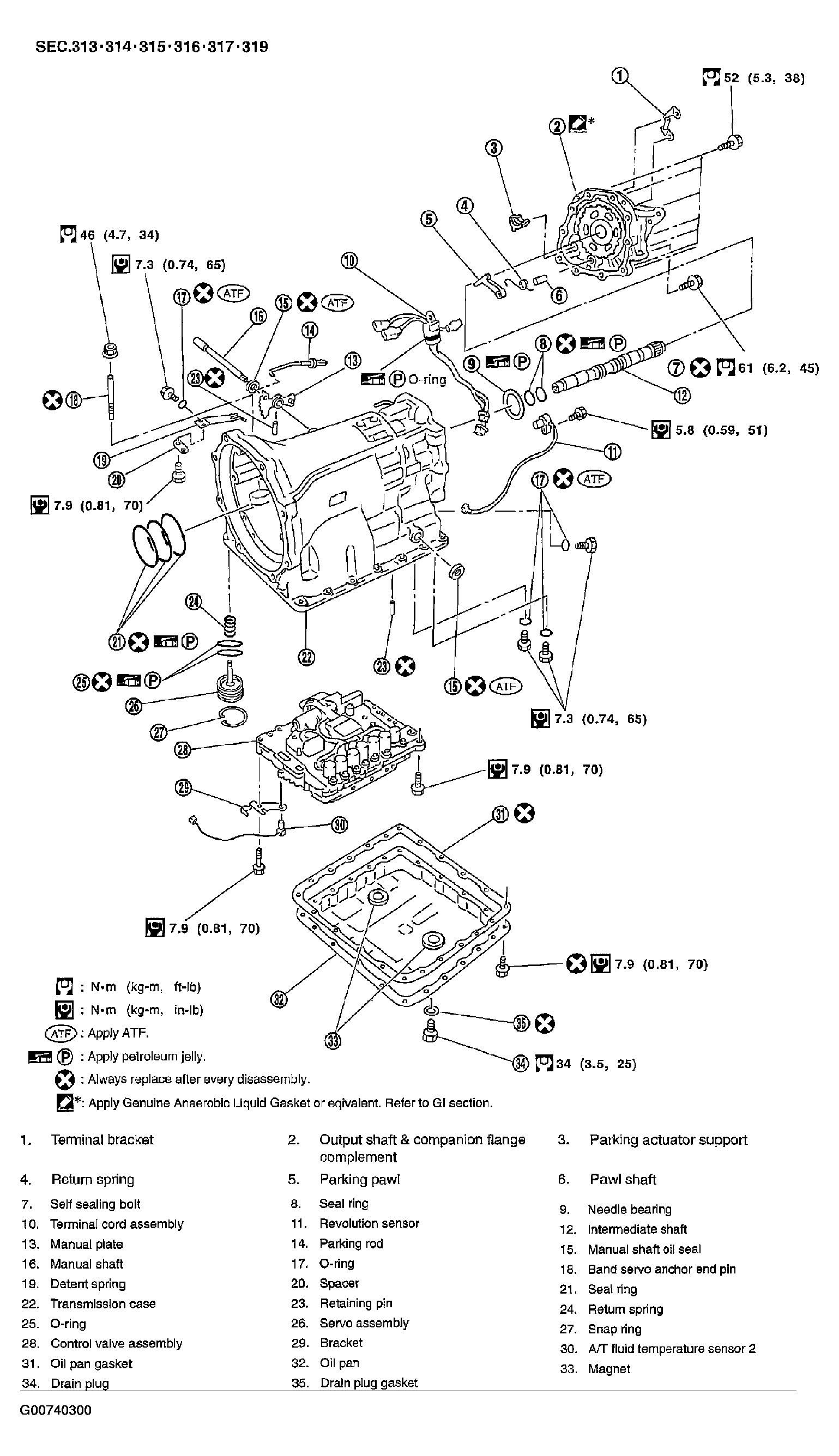

Fig 1: Exploded View Of Transmission (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Exploded View Of Transmission (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

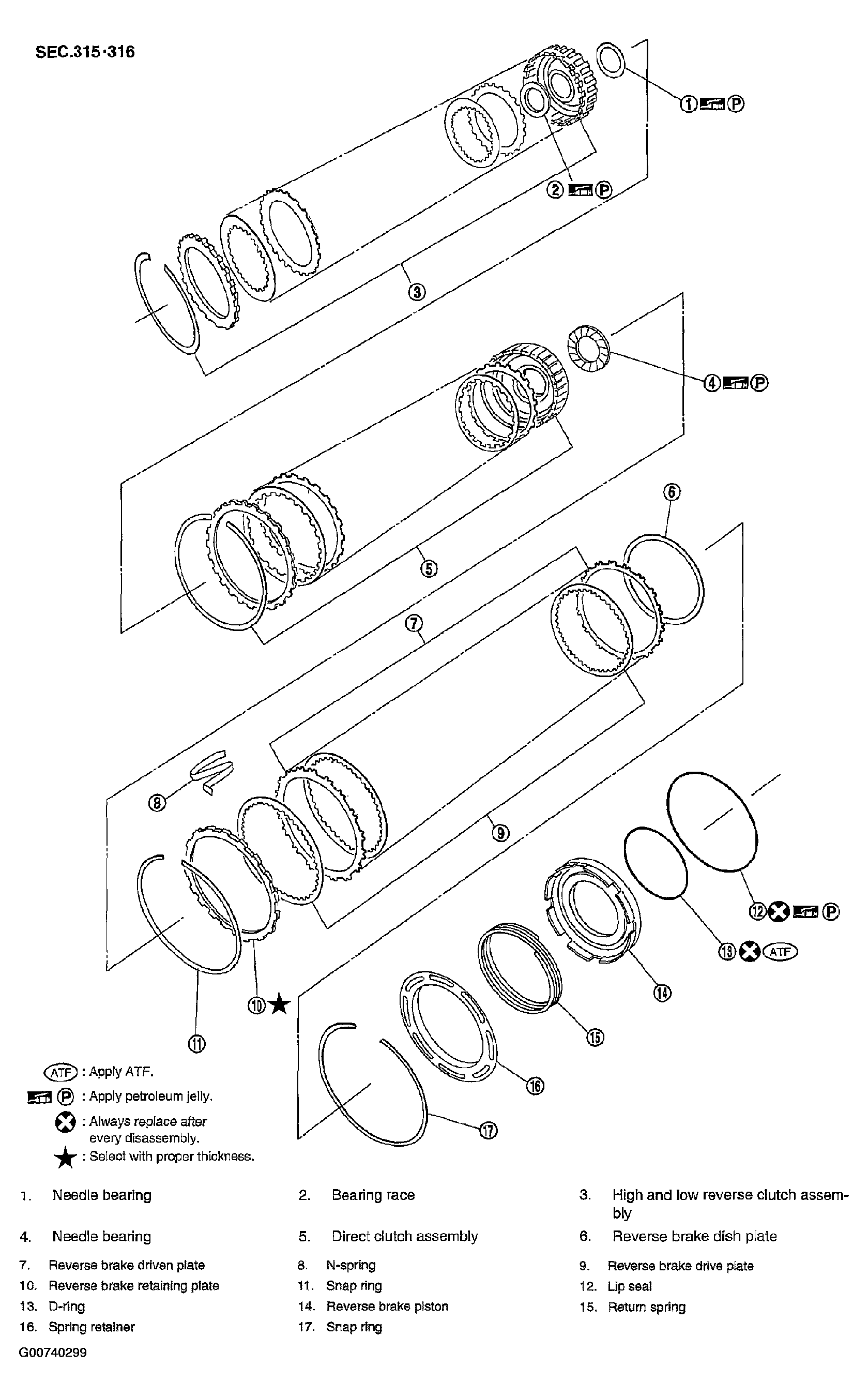

Fig 3: Exploded View Of Transmission (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
