Consult-II Basic Operation Procedure

WARNING: This page is about a different car, the 2004 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "OFF".
  2. Connect "CONSULT-II" and CONSULT-II CONVERTER to data link connector.

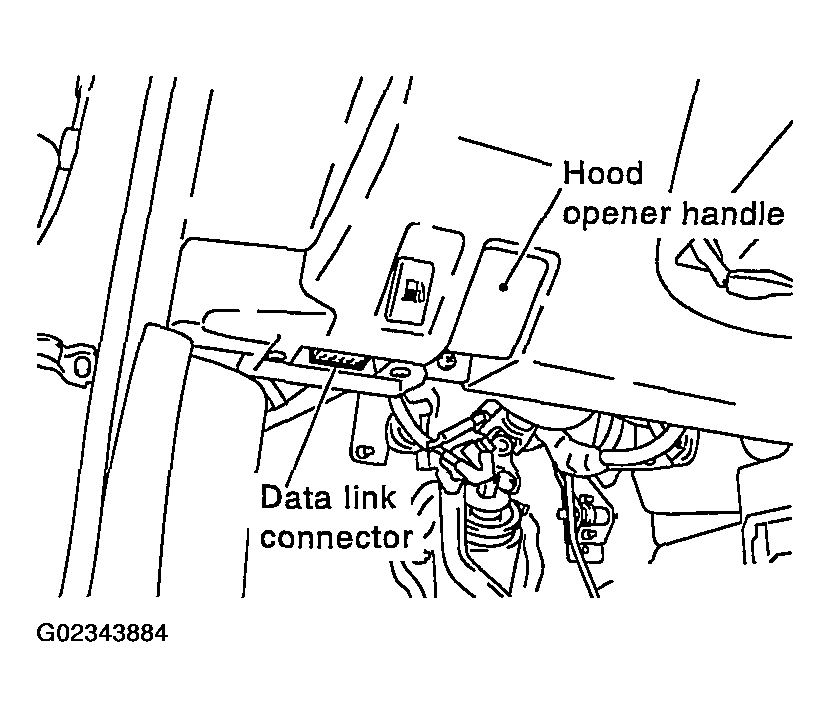

    Fig 1: Locating Data Link Connector
    G02343884Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch "ON".
  4. Touch "START (NISSAN BASED VHCL)".
    Fig 2: CONSULT-II Display Screen "START (NISSAN BASED VHCL)"
    G02343885Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "IVMS" on the "SELECT SYSTEM" screen.

    If "BCM" is not indicated, refer to "CONSULT-II DATE LINK CONNECTOR (DLC) CIRCUIT ".

    Fig 3: CONSULT-II Display Screen "IVMS"
    G02343886Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Check the model specification, and touch either "WITH SUNROOF" or "WITHOUT SUNROOF" on the "SELECT SYSCOND" screen.

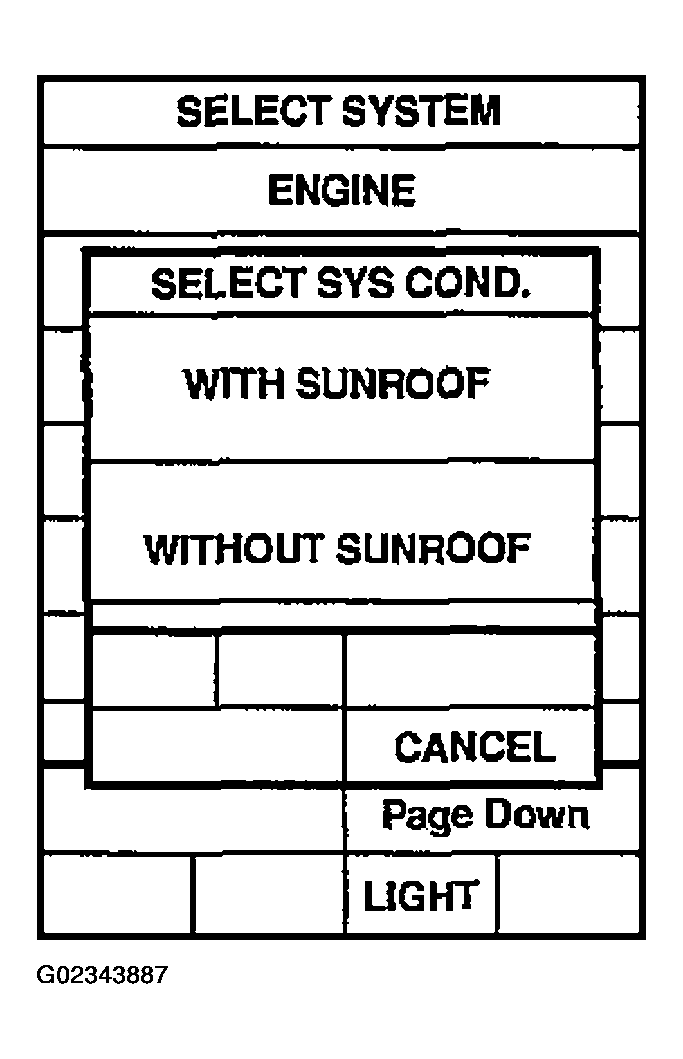

    7. Fig 4: CONSULT-II Display Screen "SELECT SYSCOND"
    G02343887Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch "OK". If the selection is wrong, touch "CANCEL".
  8. Select the desired part to be diagnosed on the "SELECT TEST ITEM" screen.
