For detailed ground distribution, refer to
, "GROUND DISTRIBUTION
".

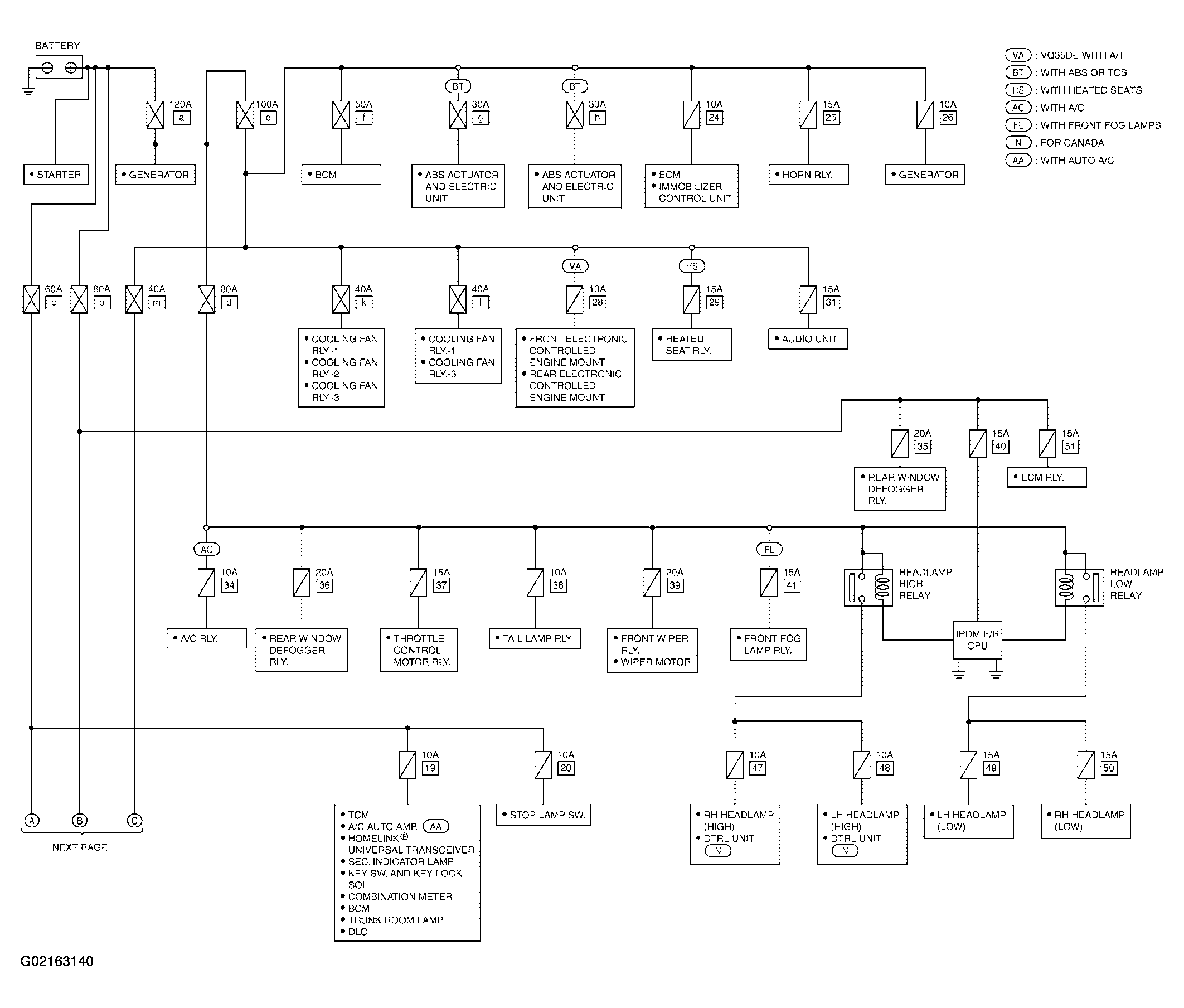

Fig 1: Power Supply Routing Circuit Schematic (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

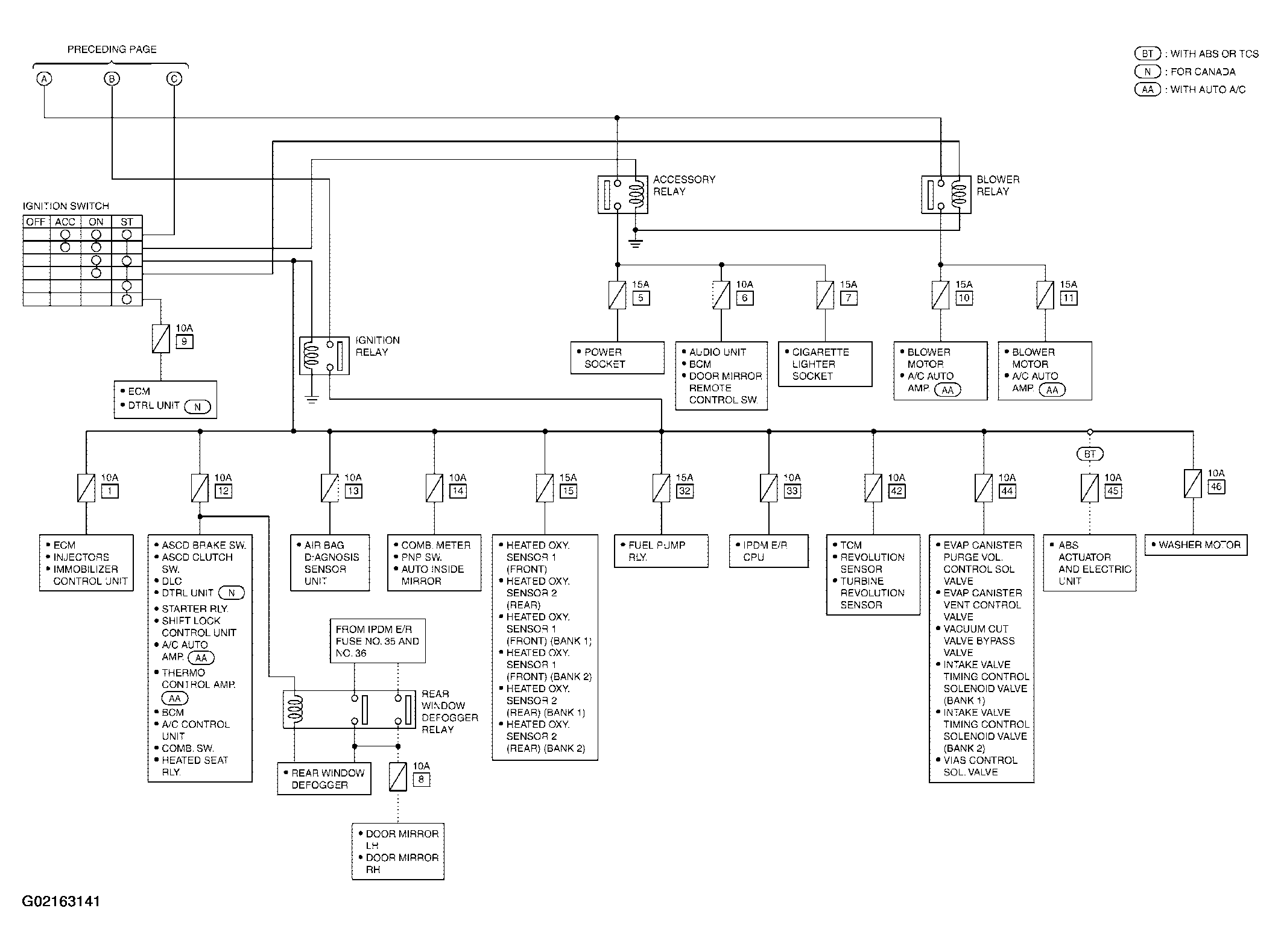

Fig 2: Power Supply Routing Circuit Schematic (2 Of 2)
