Removal and Installation: Notes

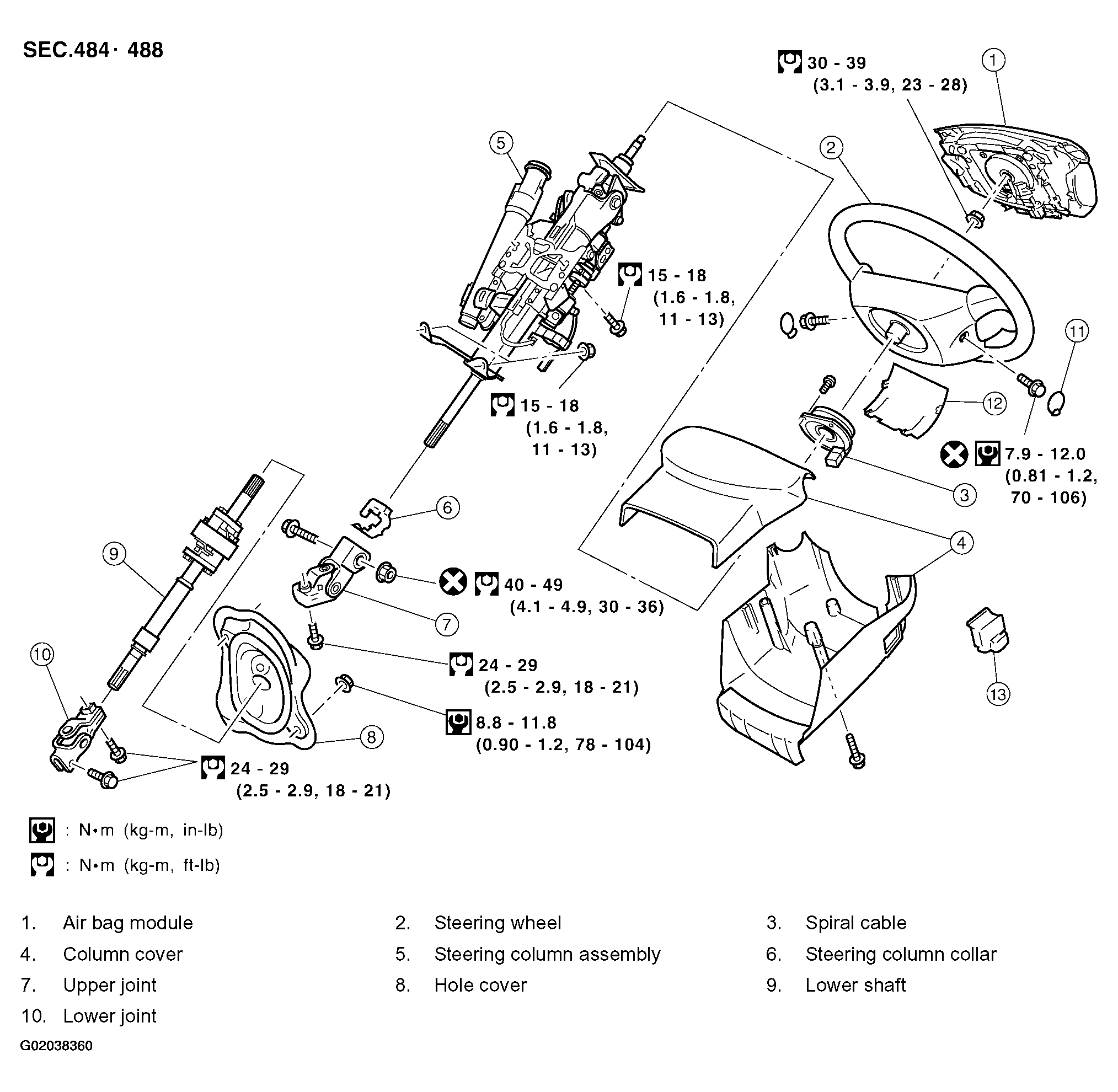

Fig 1: Exploded View Of Steering Column Components And Torque Identifications

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Care must be taken not to give axial impact to steering column assembly during removal and installation.
