Front Suspension: Description

NOTE: For information on active damper suspension system, see appropriate ELECTRONIC SUSPENSION - Q45 article.

Q45 uses MacPherson struts and a stabilizer bar. See Fig 1 .

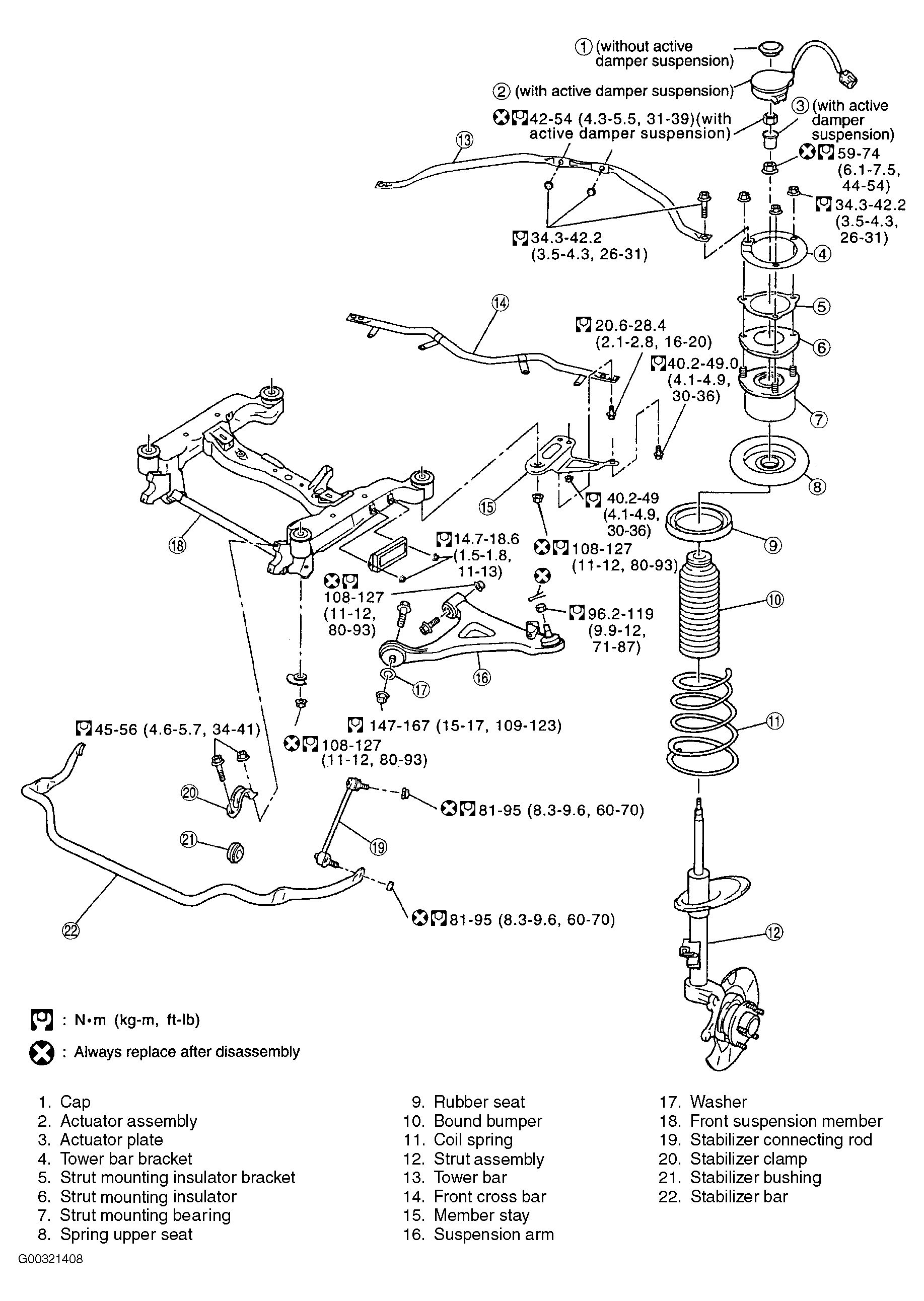

Fig 1: Exploded View Of Front Suspension Components

Courtesy of NISSAN MOTOR CO., U.S.A.
