Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Automatic Transaxle
›
A/T Control System
›
CAN Communication
›
For ICC Models
›
Input/Output Signal Chart
Input/Output Signal Chart

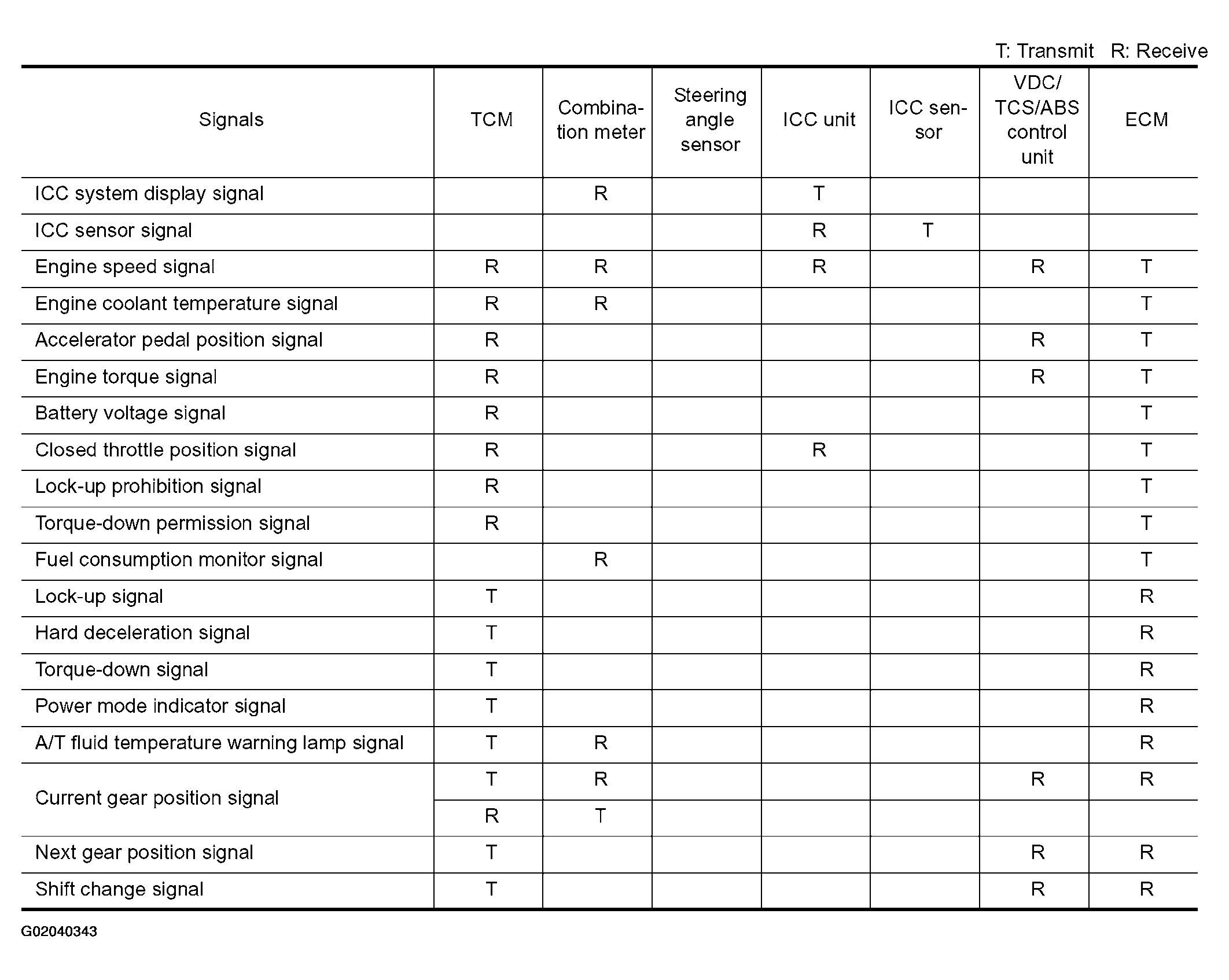

Fig 1: CAN Communication System Input/Output Signal Chart (ICC Model) (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

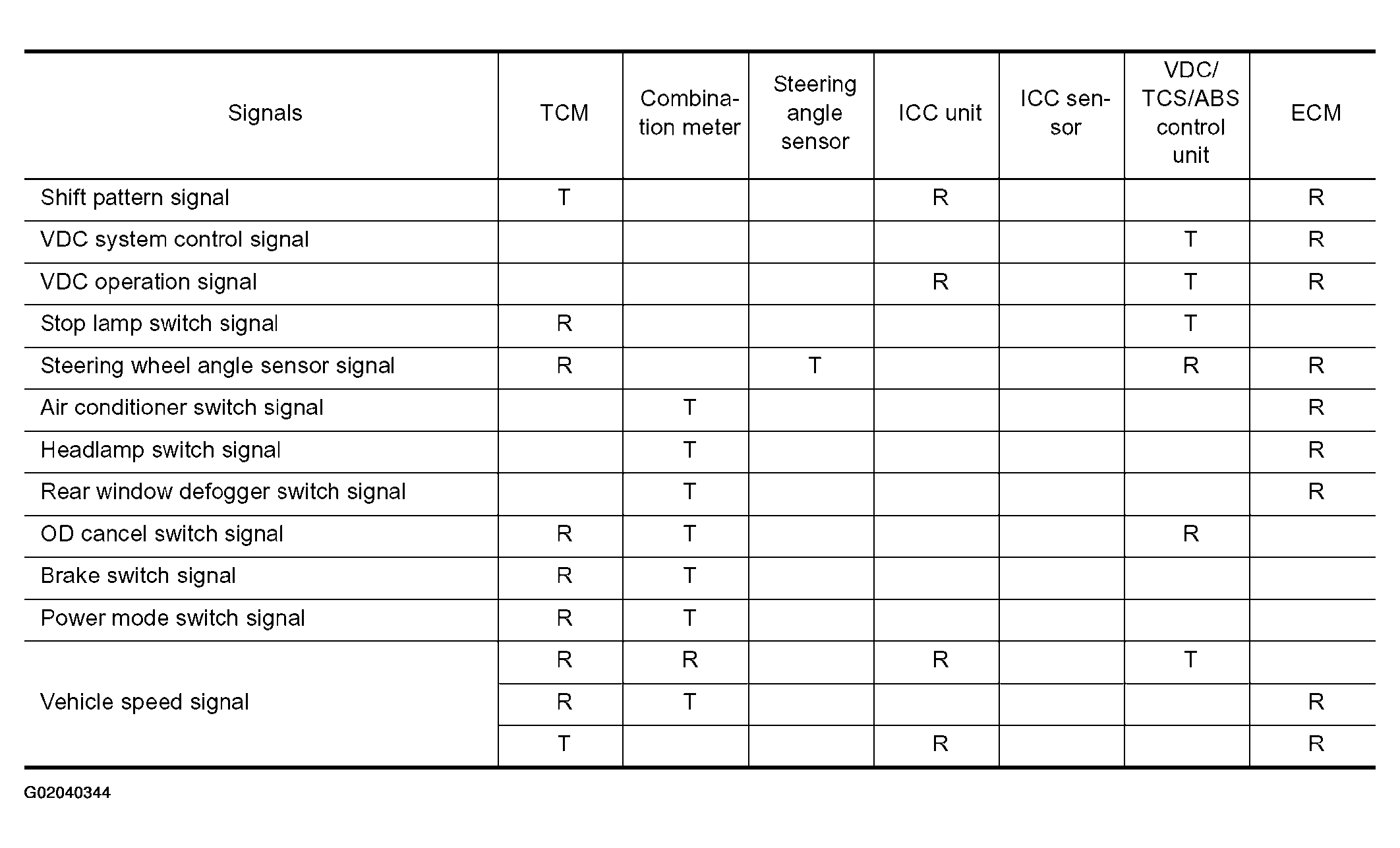

Fig 2: CAN Communication System Input/Output Signal Chart (ICC Model) (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
