A/T Control System
›
CAN Communication
›
For VDC Models
›
Input/Output Signal Chart
Input/Output Signal Chart

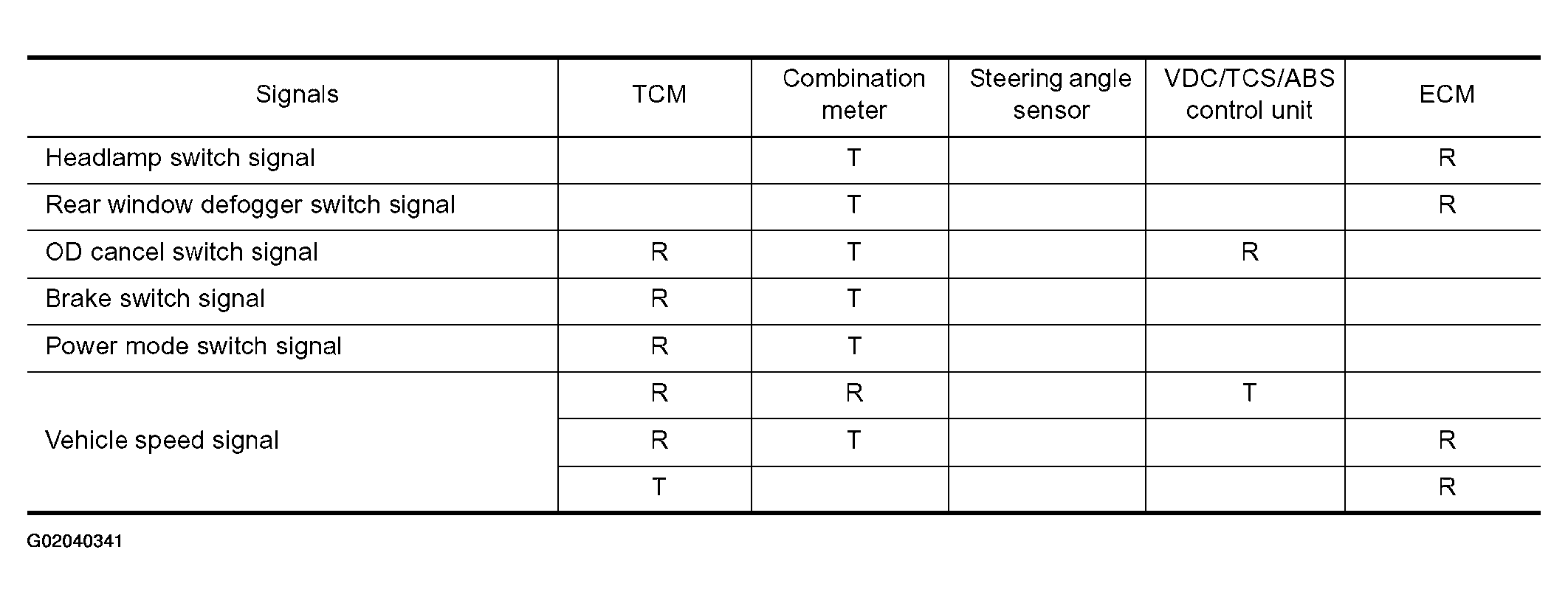

Fig 1: CAN Communication System Input/Output Signal Chart (VDC Model) (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

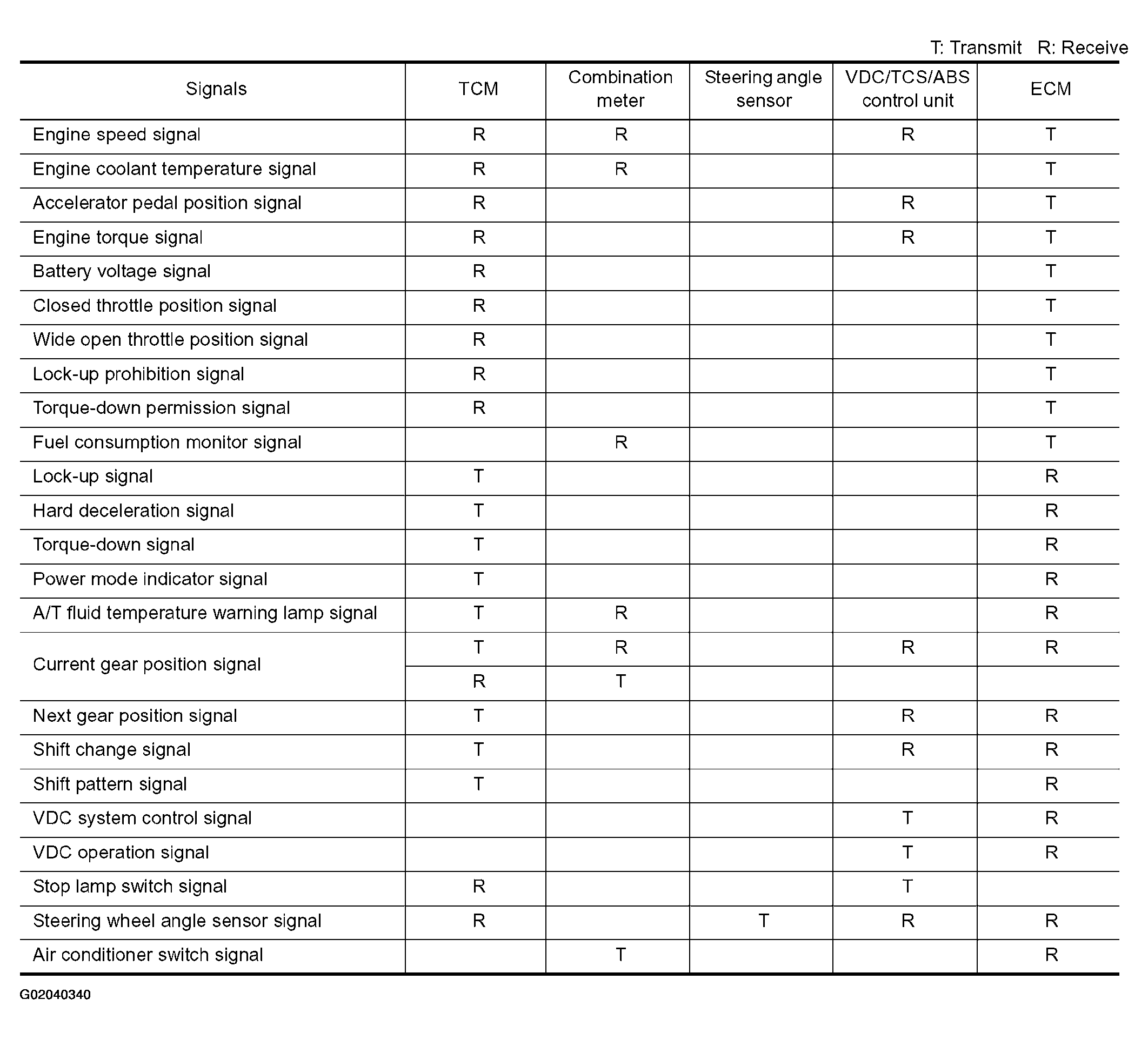

Fig 2: CAN Communication System Input/Output Signal Chart (VDC Model) (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
