Cross-Sectional View

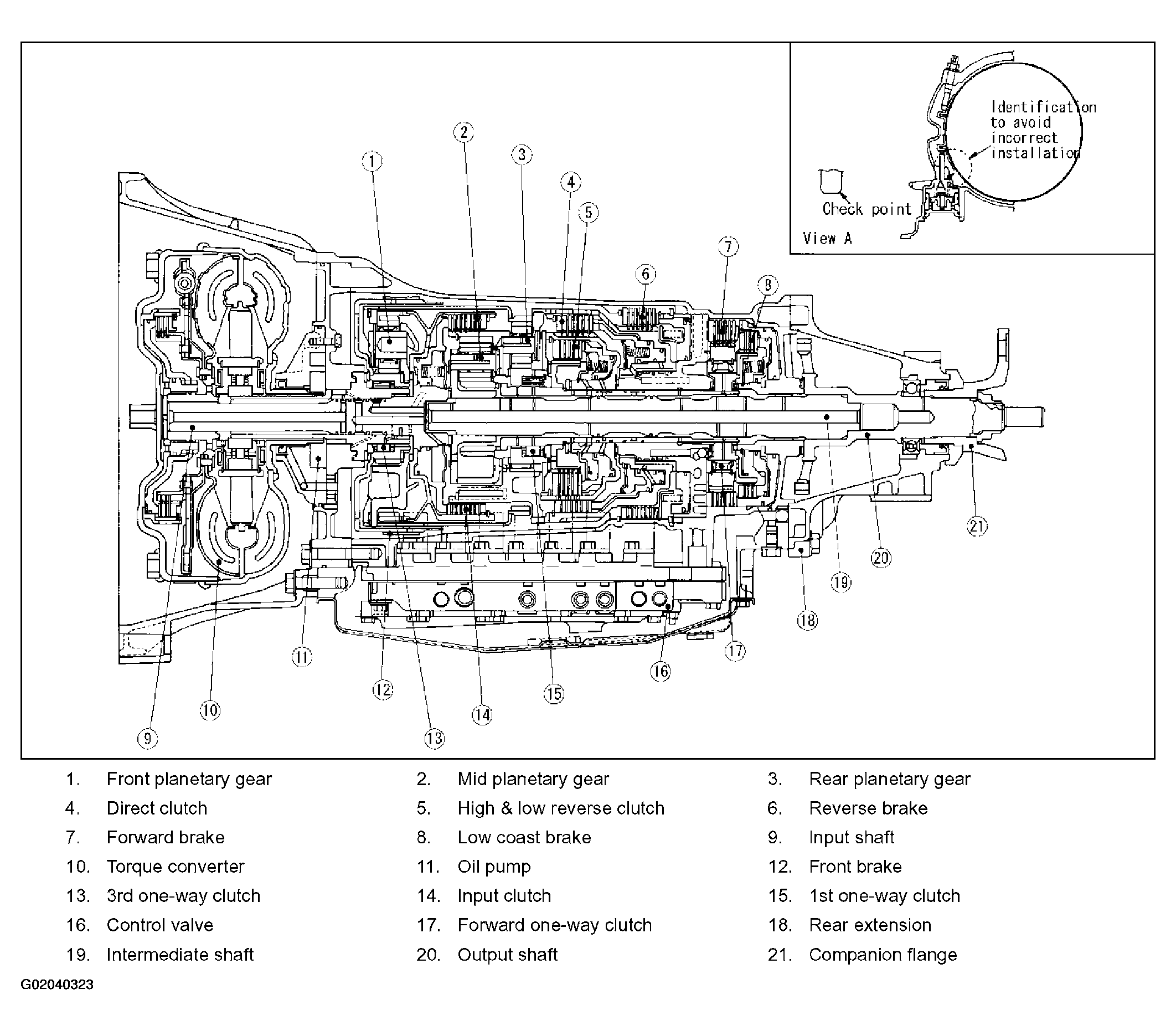

Fig 1: Cross Sectional View Of Automatic Transmission
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
