"R" Position

The front brake fastens the front sun gear.
The high and low reverse clutch is coupled and the mid sun gear and rear sun gear are connected.
The reverse brake fastens the rear carrier.

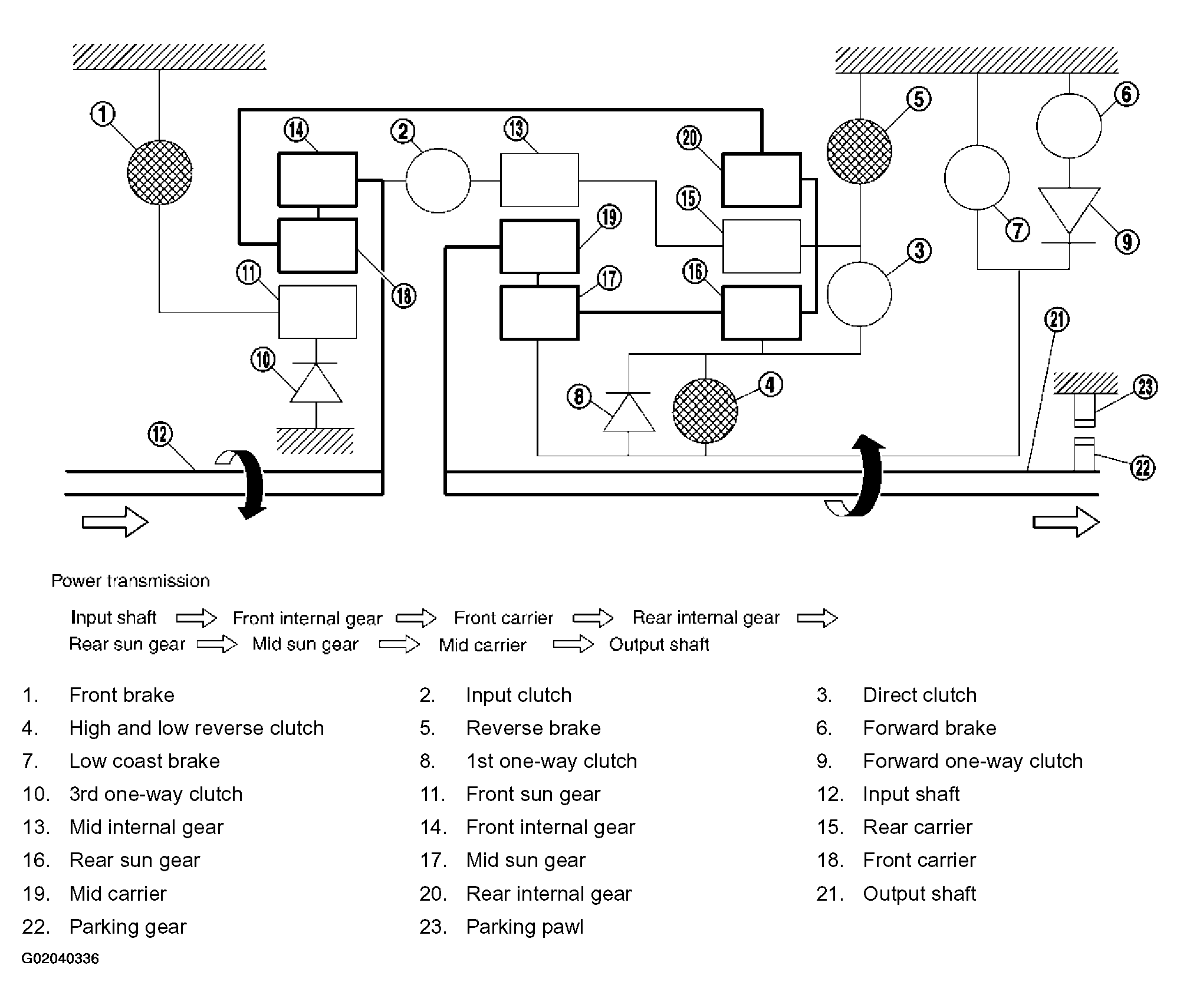

Fig 1: "R" Position Construction Layout
Courtesy of NISSAN MOTOR CO., U.S.A.
