PNP Switch

Selector lever to various positions to check the continuity between terminals on the PNP switch and ground.

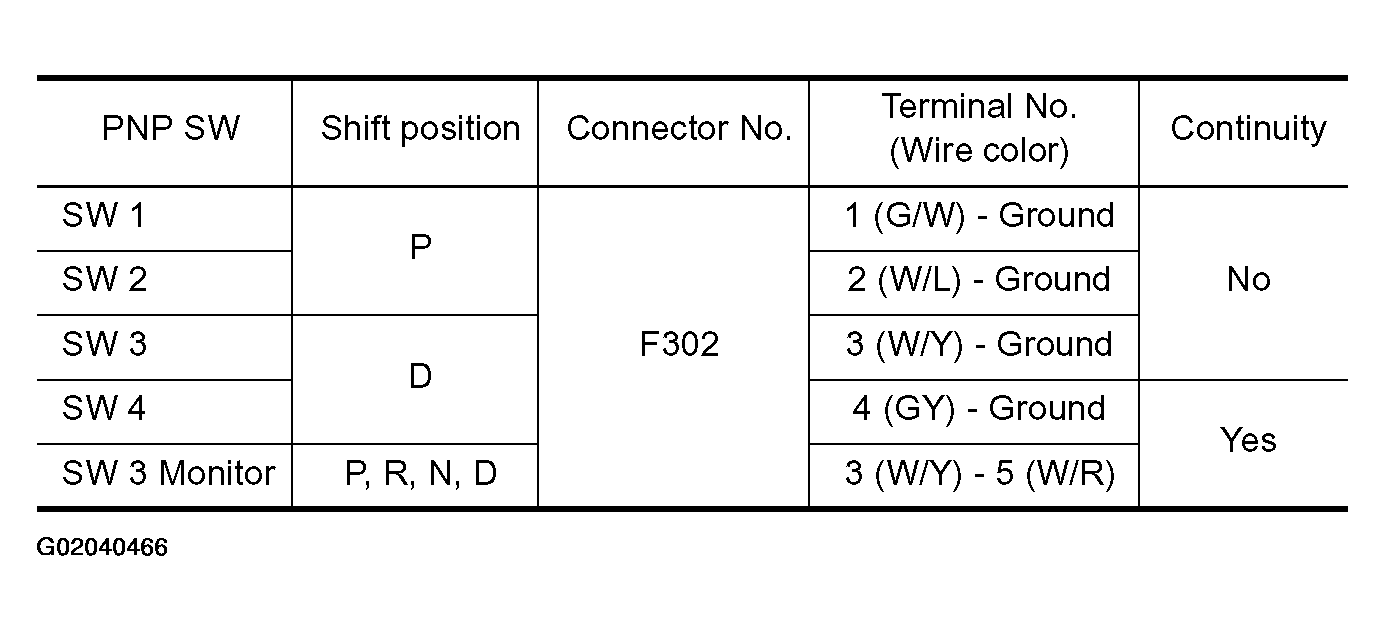

Fig 1: PNP Switch Terminal Connector Continuity Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

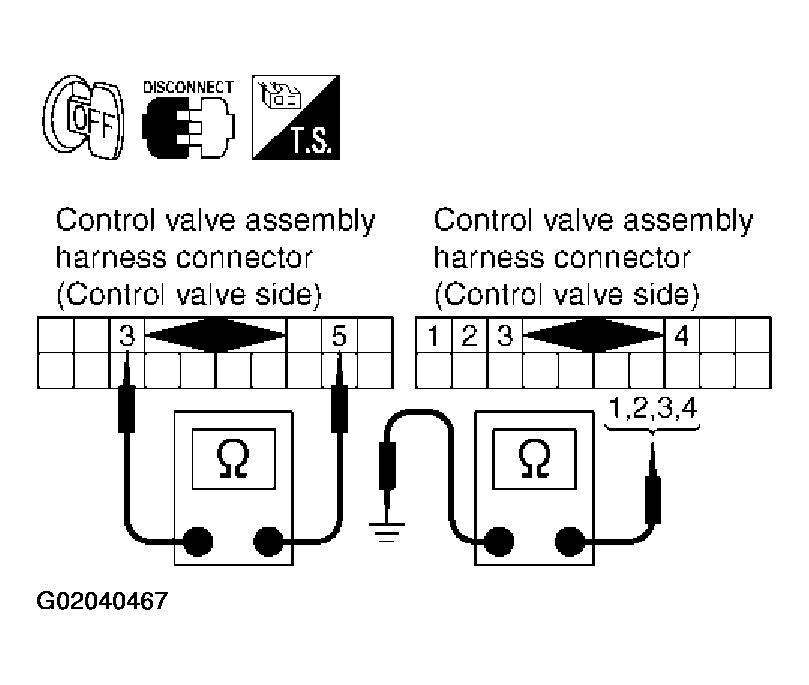

Fig 2: Inspecting PNP Switch (DTC P0705)
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, check the continuity with the control linkage disconnected. (Refer to Step 1 above.)
If OK with the control linkage disconnected, adjust the control linkage. Refer to "ADJUSTMENT OF A/T POSITION ".
If NG even when the control linkage is disconnected, replace the control valve assembly. Refer to "CONTROL VALVE ASSEMBLY ".
