A/T PV IGN Relay

Apply 12V direct current between A/T PV IGN relay terminals 1 and 2.
Check continuity between relay terminals 3 and 5.

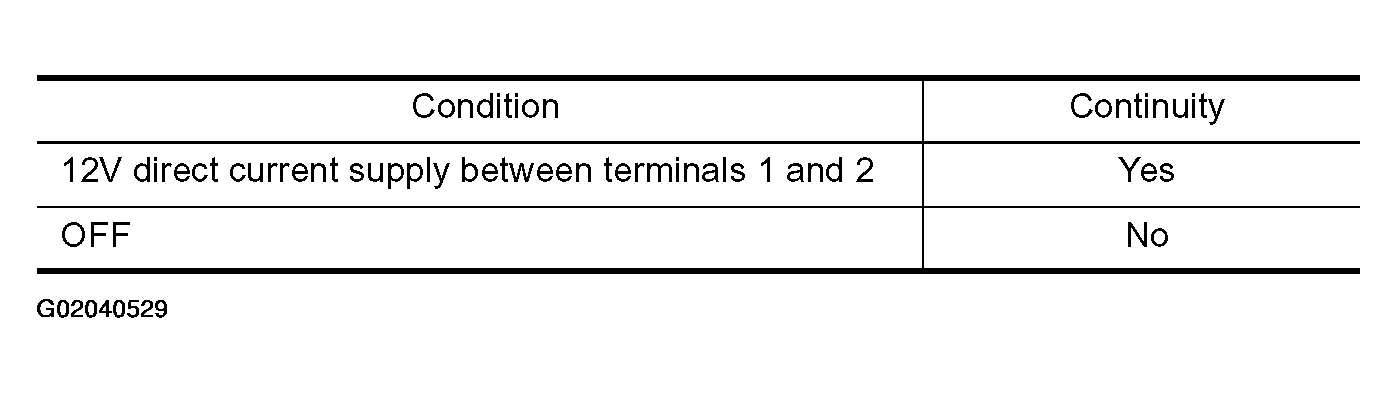

Fig 1: Relay Condition Continuity Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

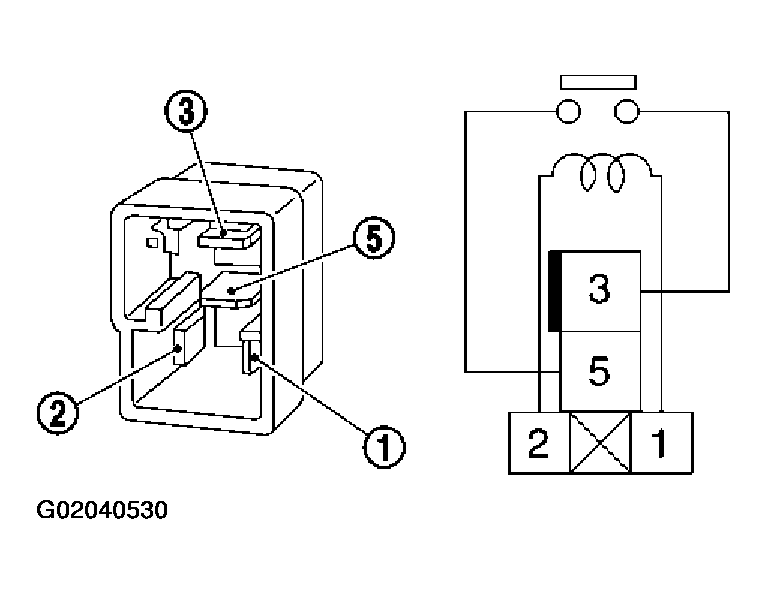

Fig 2: Inspecting A/T PV IGN Relay
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace A/T PV IGN relay.
