Diagnostic Procedure

  1. INPUT SIGNALS (WITH CONSULT-II)

    WITH CONSULT-II

    1. Start engine.
    2. Select "ECU INPUT SIGNALS" or "MAIN SIGNALS" in "DATA MONITOR" mode for "A/T" with CONSULT-II.
    3. Accelerate vehicle in the "D" position (3rd --> 4th gear), and confirm the ON/OFF actuation of the "ATF PRES SW 1".

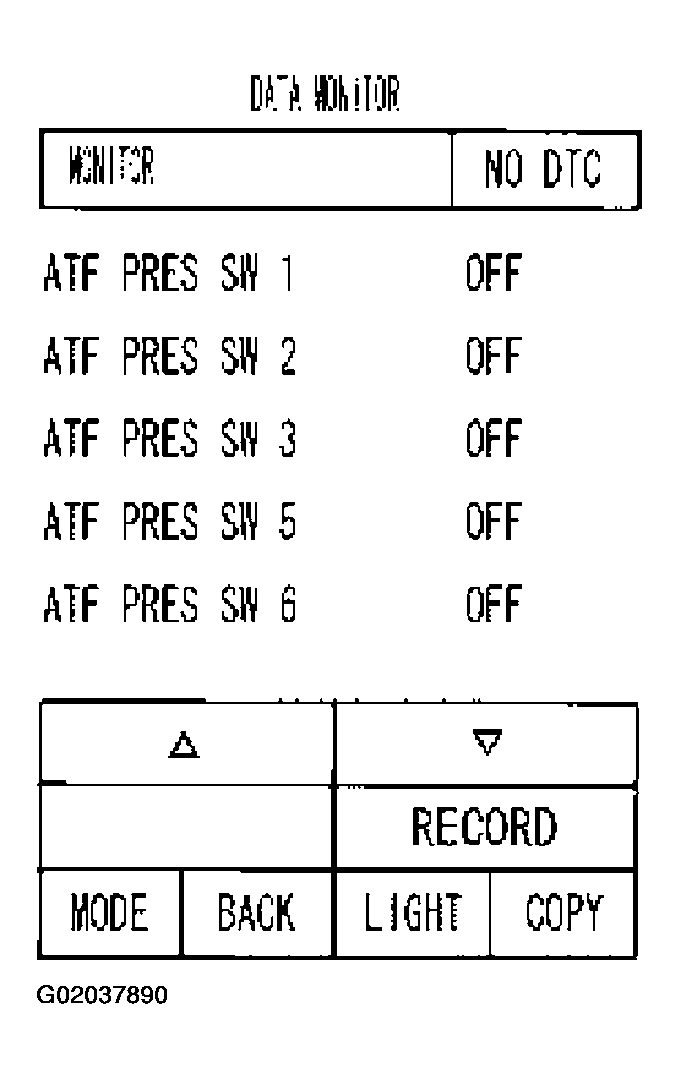

      Fig 1: Display Input Signals Sheet (With Consult-II)
      G02037890Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK >> GO TO  5.
    2. NG >> GO TO  3.
  2. INPUT SIGNALS (WITHOUT CONSULT-II)

    Without CONSULT-II

    1. Start engine.
    2. Accelerate vehicle in the "D" position (3rd --> 4th gear).
      Fig 2: Display Input Signals Sheet (With Consult-II)
      G02037891Courtesy of NISSAN MOTOR CO., U.S.A.
      Fig 3: Checking Input Signals Sheet (With Consult-II)
      G02037892Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK >> GO TO  5.
    2. NG >> GO TO 3.
  3. CHECK HARNESS BETWEEN TCM AND A/T UNIT ASSEMBLY HARNESS CONNECTOR
    1. Turn ignition switch to "OFF" position.
    2. Disconnect TCM connector.
    3. Check continuity between A/T unit assembly harness connector and TCM connector.

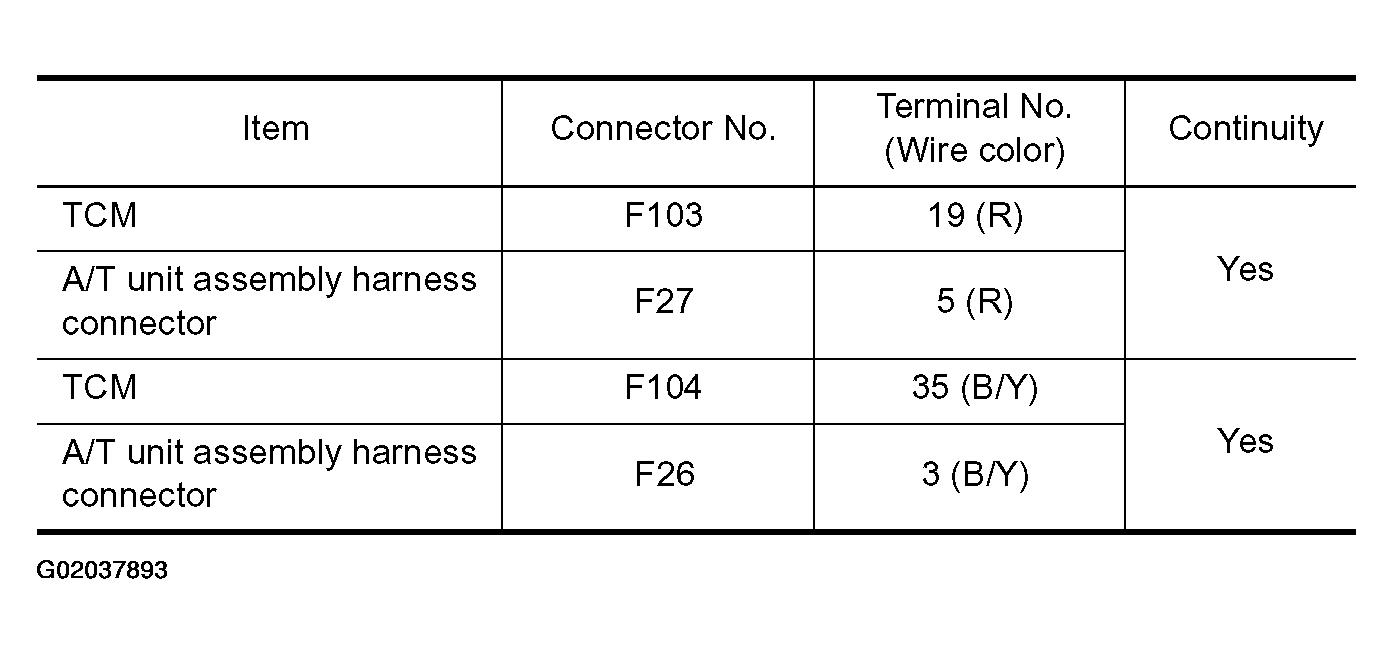

      Fig 4: Identifying A/T Unit Assembly Harness Connector And TCM Connector Table
      G02037893Courtesy of NISSAN MOTOR CO., U.S.A.

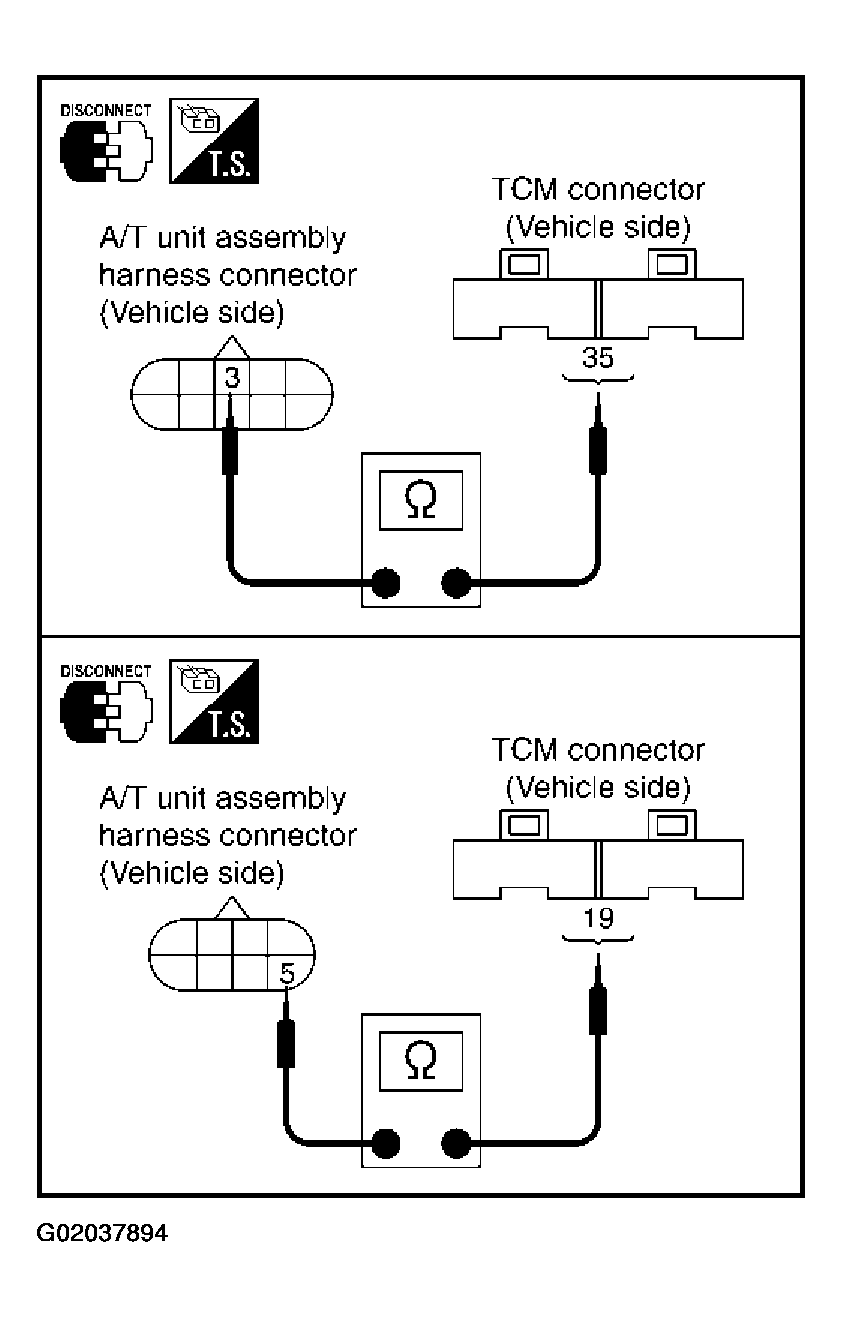

      Fig 5: Checking Harness Between TCM And A/T Unit Assembly Harness Connector
      G02037894Courtesy of NISSAN MOTOR CO., U.S.A.
    4. If OK, check harness for short to ground and short to power.
    5. Reinstall any part removed.

    OK or NG

    1. OK >> GO TO 4.
    2. NG >> Repair open circuit or short to ground or short to power in harness or connectors.
  4. CHECK TERMINAL CORD ASSEMBLY
    1. Remove oil pan. Refer to "CONTROL VALVE ASSEMBLY ".
    2. Disconnect A/T unit assembly harness connector and control valve assembly harness connector.
    3. Check continuity between A/T unit assembly harness connector and control valve assembly harness connector.

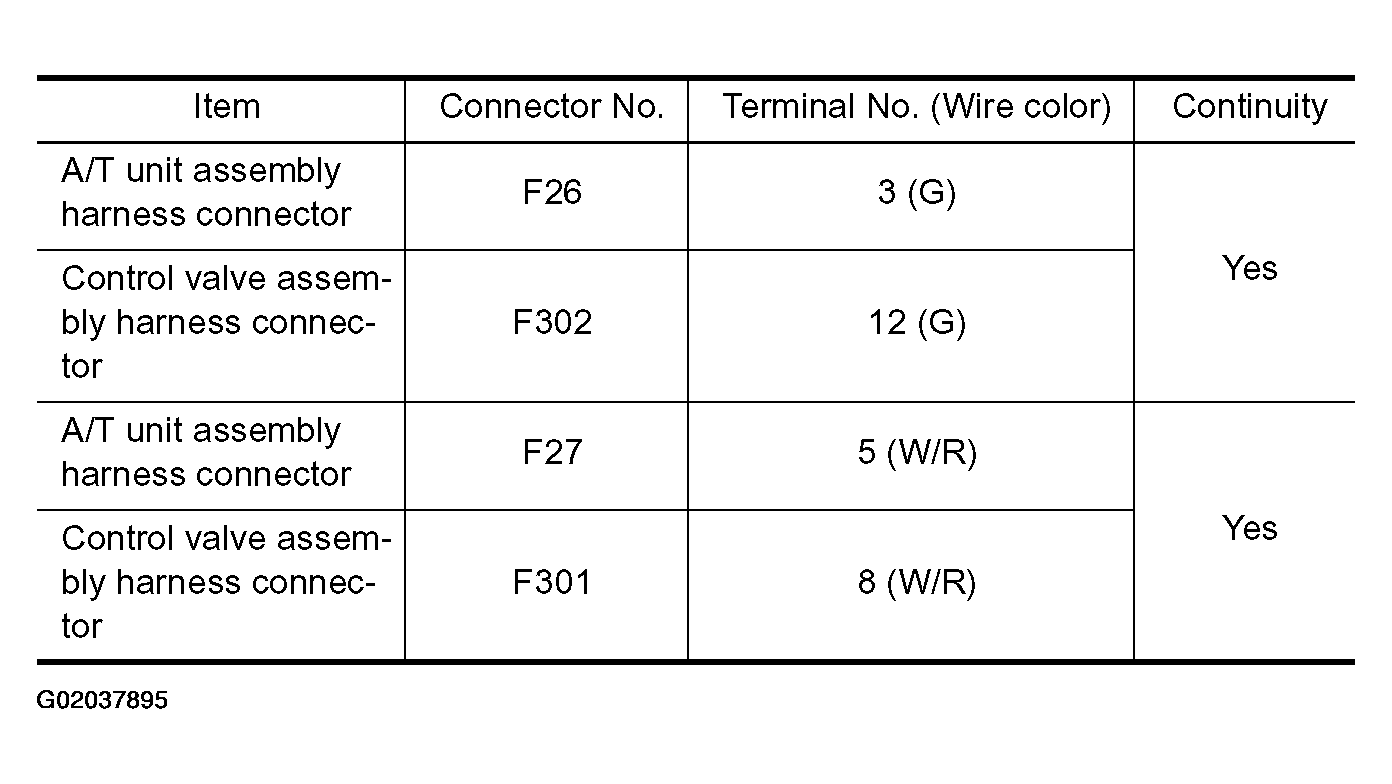

      Fig 6: Identifying A/T Unit Assembly Harness Connector And TCM Connector Table
      G02037895Courtesy of NISSAN MOTOR CO., U.S.A.

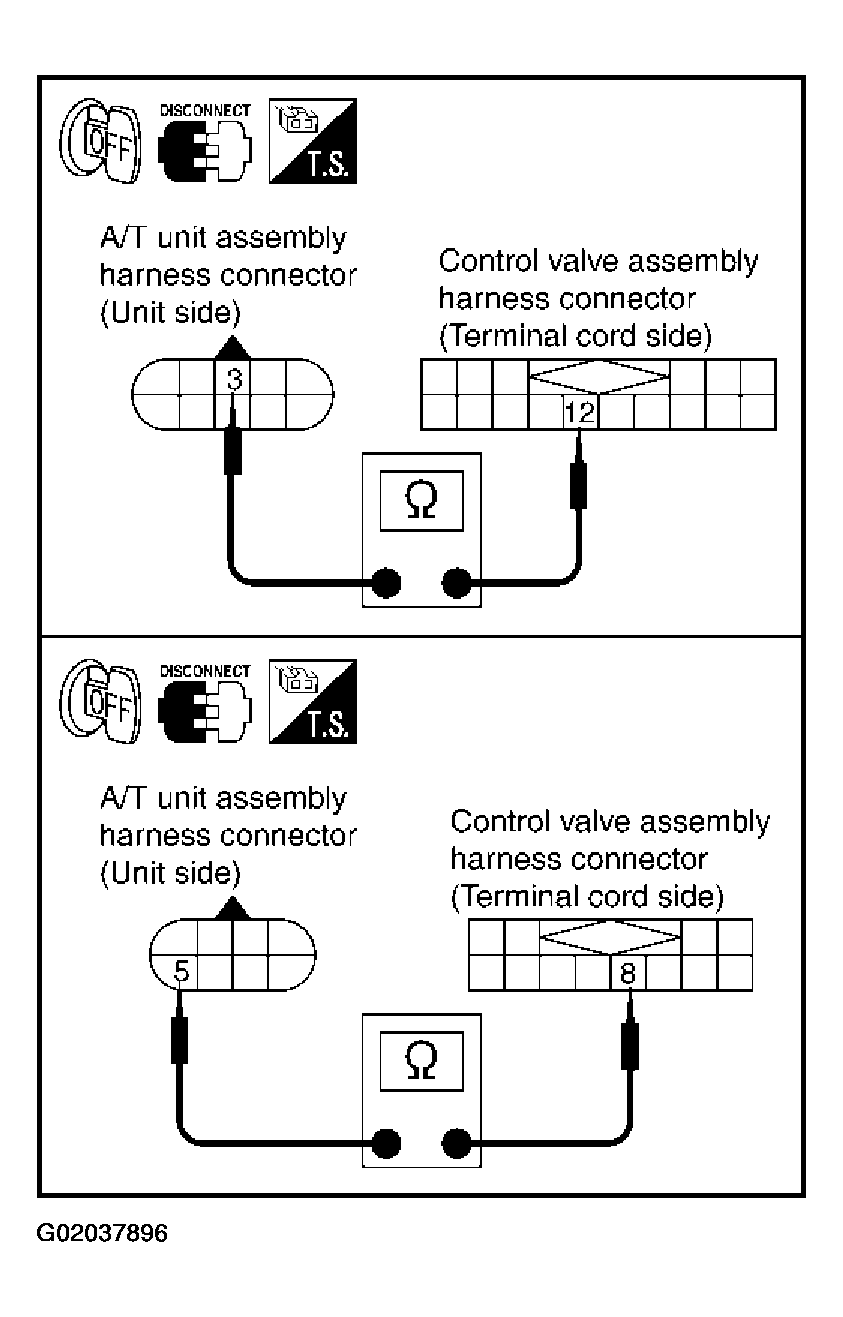

      Fig 7: Checking Harness Between TCM And A/T Unit Assembly Harness Connectors
      G02037896Courtesy of NISSAN MOTOR CO., U.S.A.
    4. If OK, check harness for short to ground and short to power.
    5. Reinstall any part removed.

    OK or NG

    1. OK >> Replace the control valve assembly. Refer to "CONTROL VALVE ASSEMBLY ".
    2. NG >> Repair open circuit or short to ground or short to power in harness or connectors.
  5. CHECK DTC

    Perform "DTC Confirmation Procedure". Refer to "DTC CONFIRMATION PROCEDURE ".

    OK or NG

    1. OK >> INSPECTION END
    2. NG >> GO TO 6.
  6. PERFORM TCM INSPECTION
    1. Perform TCM input/output signal inspection.
    2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

    OK or NG

    1. OK >> INSPECTION END
    2. NG >> Repair or replace damaged parts.
