Oil Channel
Oil Channel

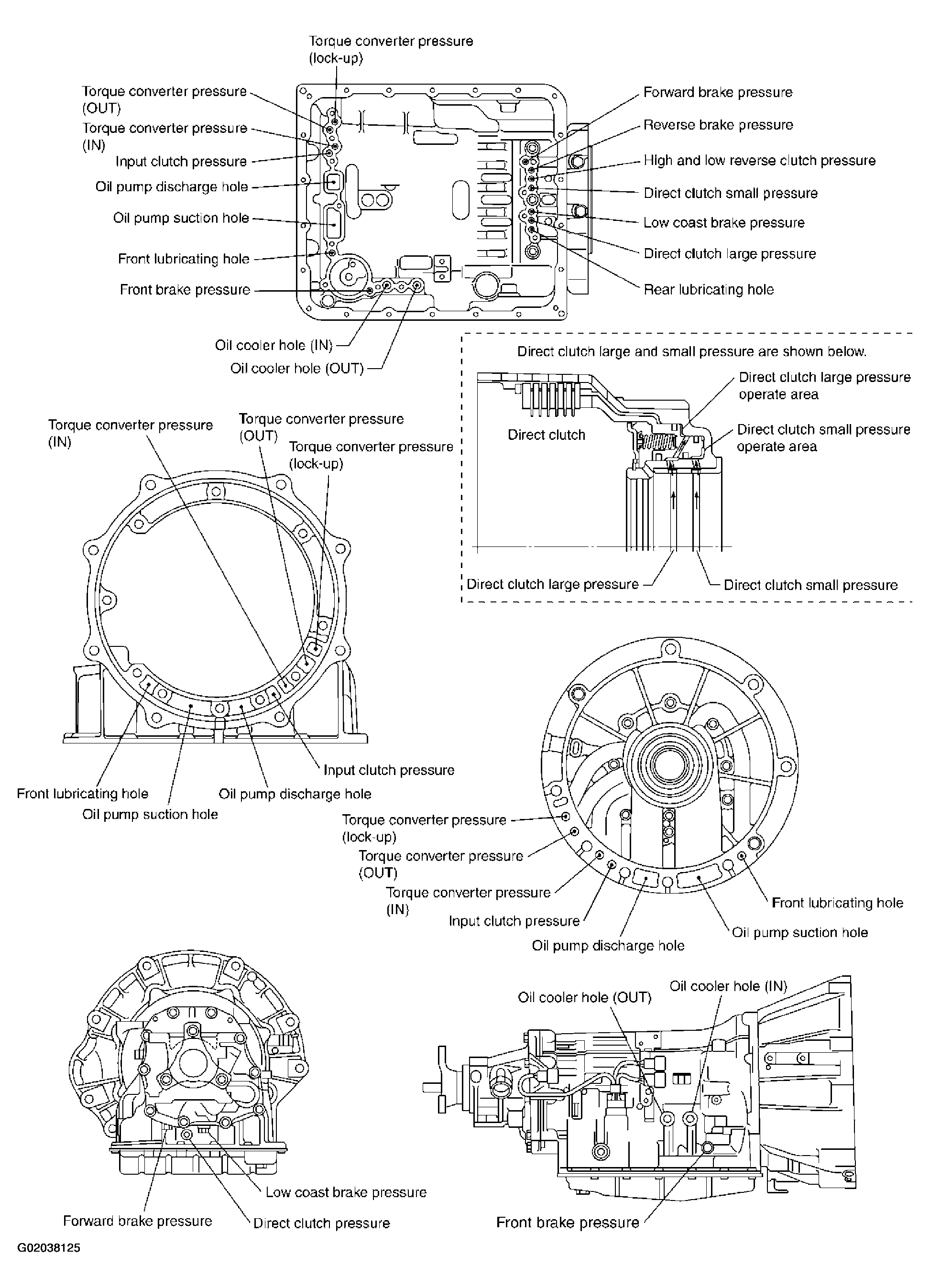

Fig 1: Locating Oil Channel Components Of Overhaul
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
