Home › Infiniti › 2003 › Q45 › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transaxle › Repair For Component Parts › Direct Clutch › Components

Direct Clutch: Components

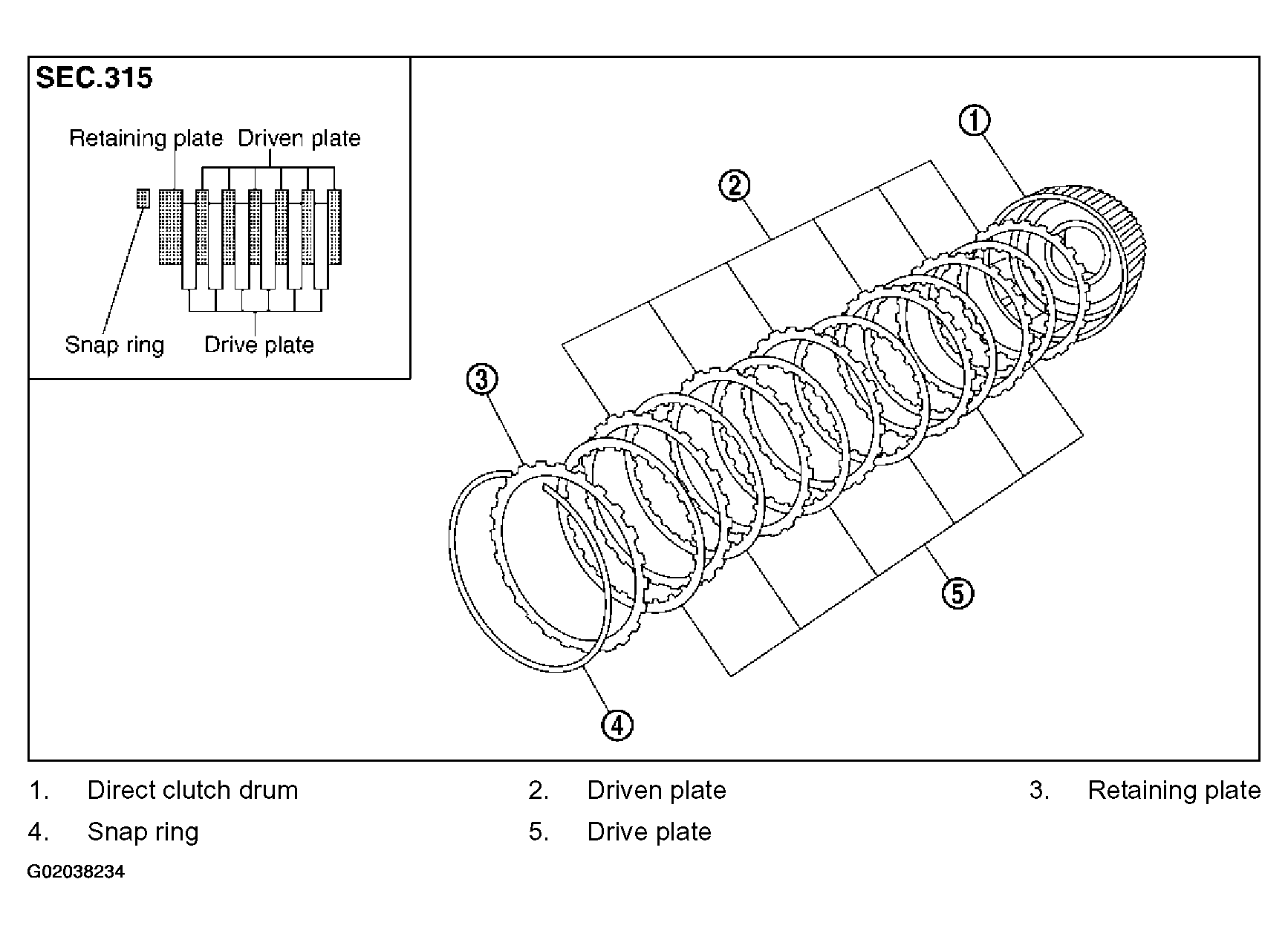

Fig 1: Repairing Direct Clutch Components
G02038234Courtesy of NISSAN MOTOR CO., U.S.A.
