Vehicle Speed When Performing and Releasing Slip Lock-up

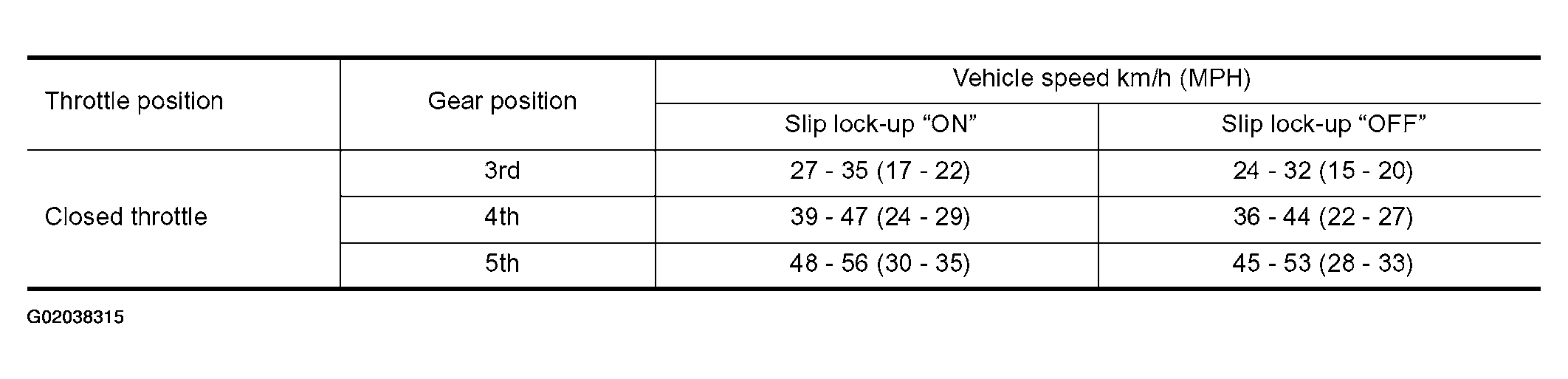

Fig 1: Identifying Vehicle Speed When Performing And Releasing Slip Lock-Up Table

Courtesy of NISSAN MOTOR CO., U.S.A.

• At closed throttle, the accelerator opening is less than 1/8.
