Vehicle Speed When Shifting Gears

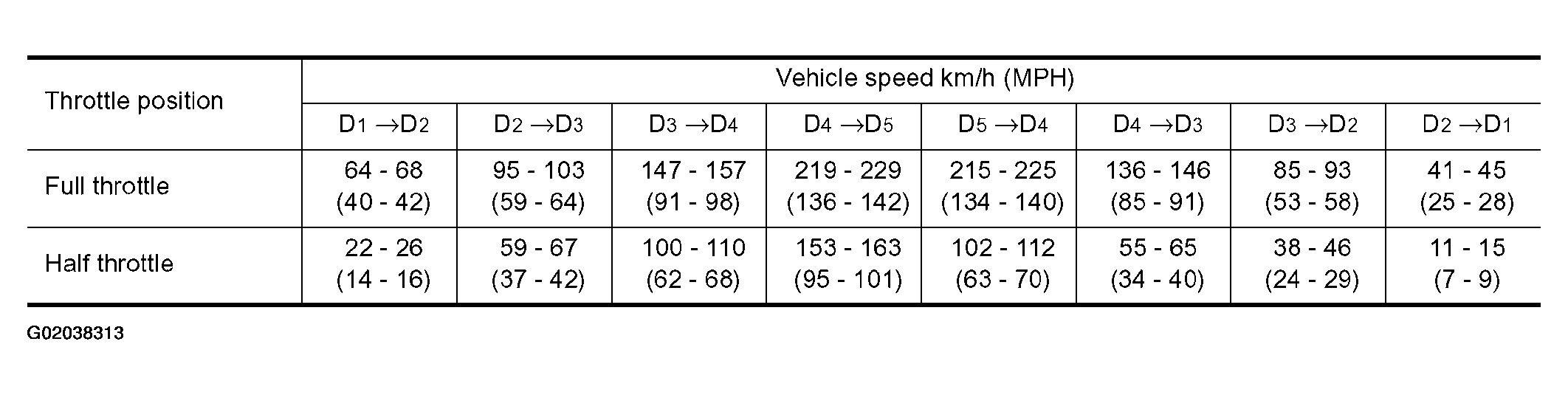

Fig 1: Identifying Vehicle Speed When Shifting Gears Table

Courtesy of NISSAN MOTOR CO., U.S.A.

• At half throttle, the accelerator opening is 4/8 of the full opening.
