Consult-II Reference Value
Consult-II Reference Value

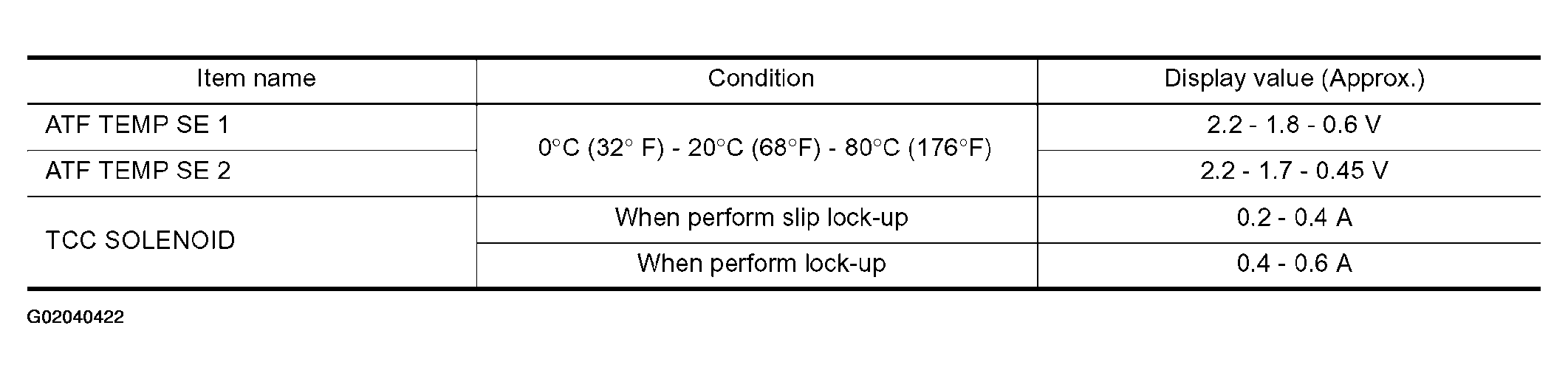

Fig 1: CONSULT-II Reference Value Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
