"Tracking" Mode

  1. Start the engine.
  2. Push the "MAP" switch.
  3. Touch "Setting".
  4. Touch "System Setting".

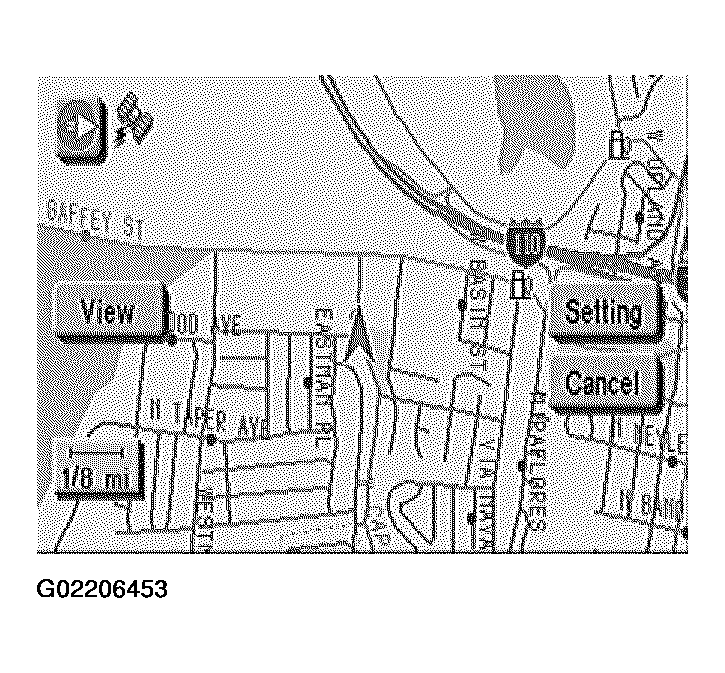

    Fig 1: Tracking Mode Display
    G02206453Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "Tracking".

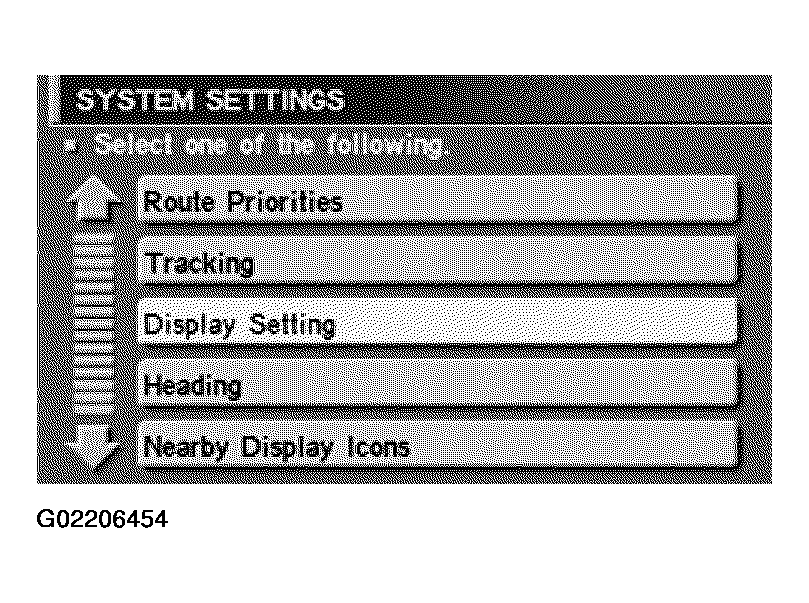

    Fig 2: Tracking Selection Display
    G02206454Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch the "On" or "Off" icon.
    • If you don't need a trail on the map, select "Off".
    • If you need a trail on the map, select "On".
  7. Push the "MAP" switch to return the display to the current location map.
NOTE: When a trail display is turned OFF, trail data is erased from the memory.

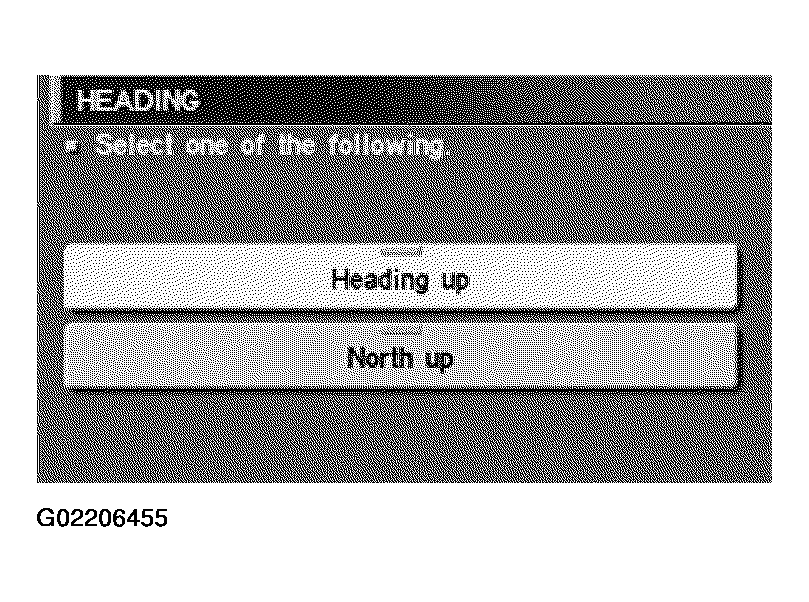

Fig 3: Heading Display For On/Off Trail On The Map
G02206455Courtesy of NISSAN MOTOR CO., U.S.A.
