Symptom Chart

NOTE:

Always check keyfob battery before replacing keyfob.
The panic alarm operation of remote keyless entry system does not activate with the ignition key inserted in the ignition key cylinder.

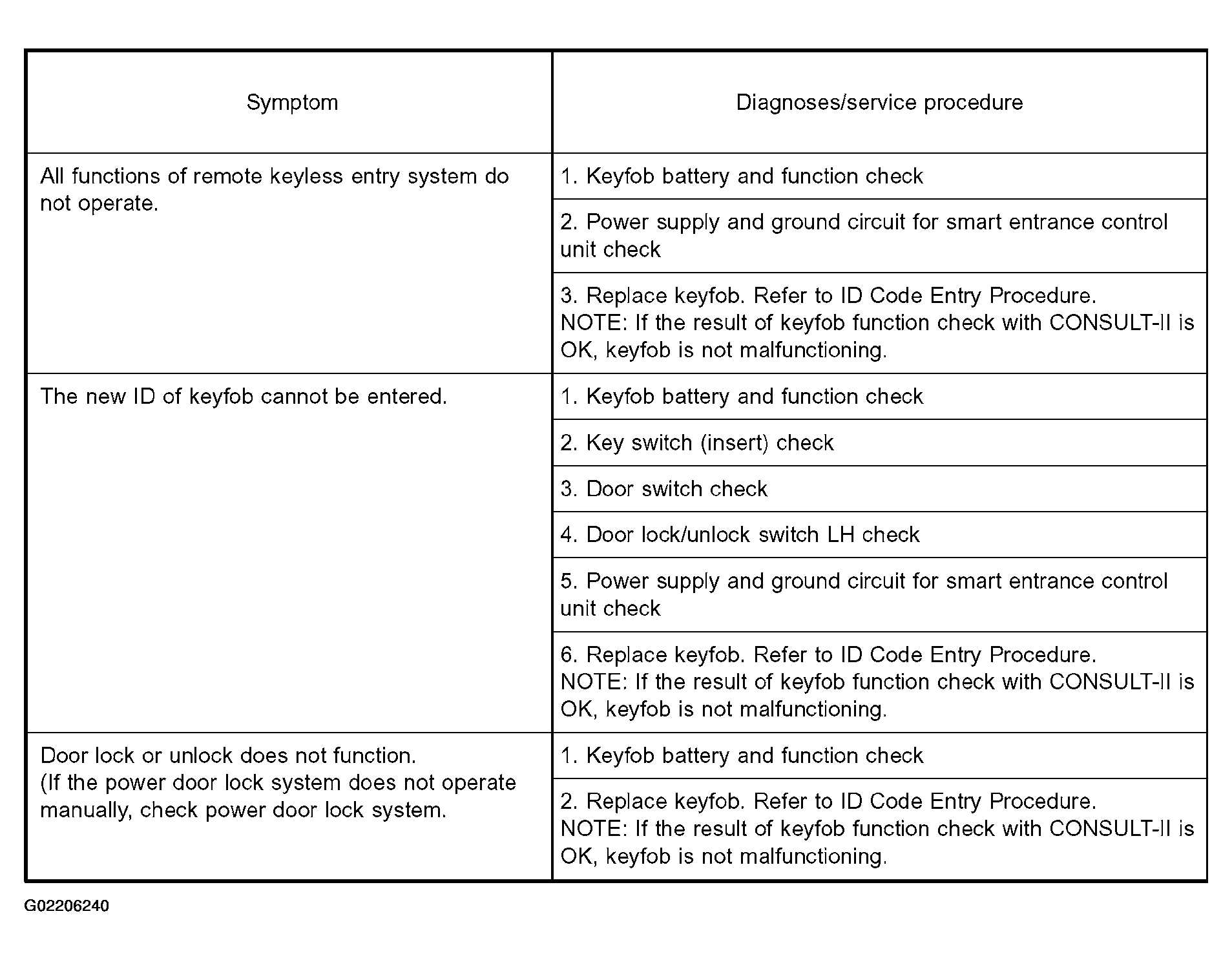

Fig 1: Trouble Diagnoses Symptom Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

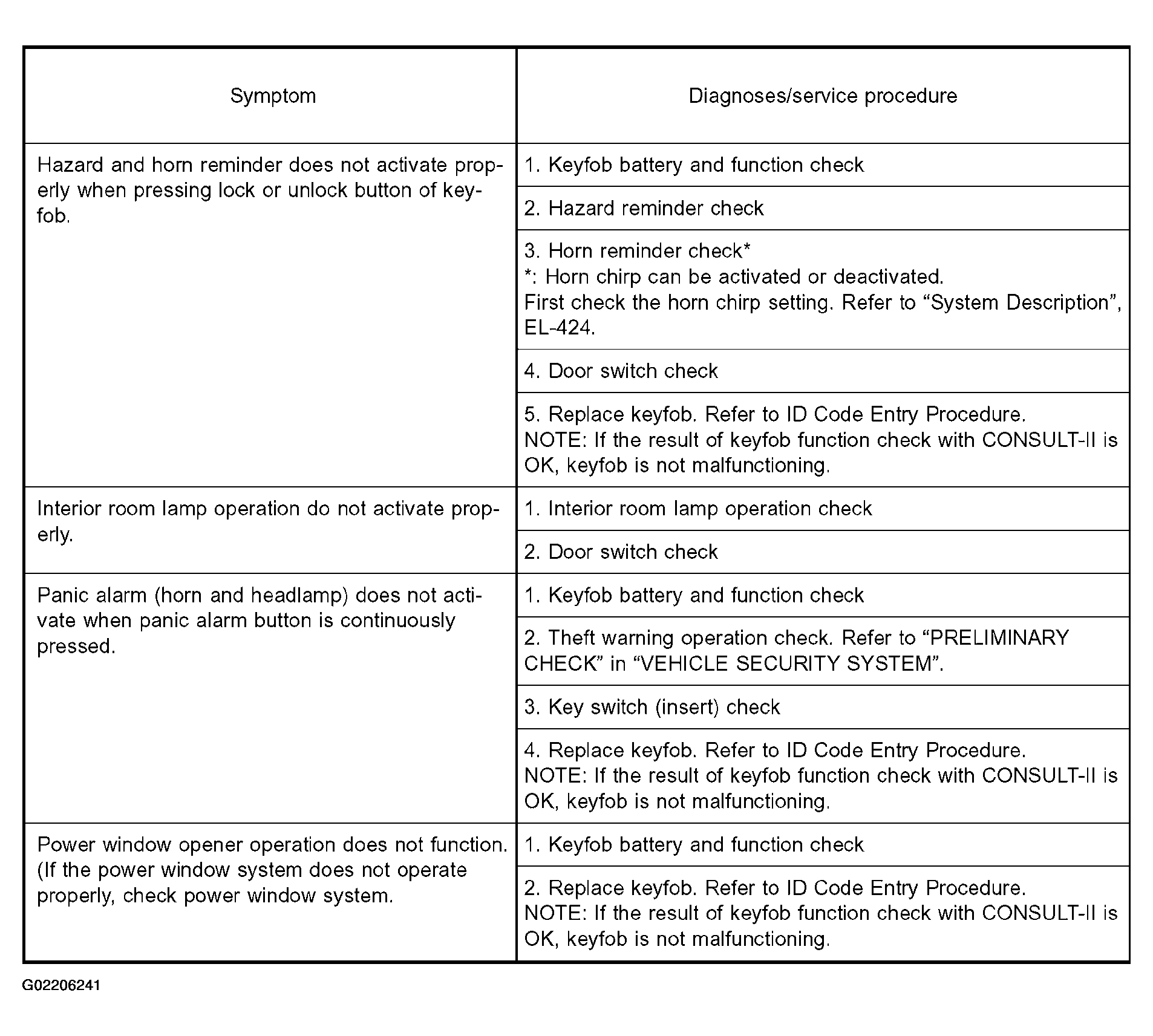

Fig 2: Trouble Diagnoses Symptom Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
