Automatic Speed Control Device (ASCD)
›
Electrical Component Inspection
›
Park/Neutral Position Switch
Park/Neutral Position Switch

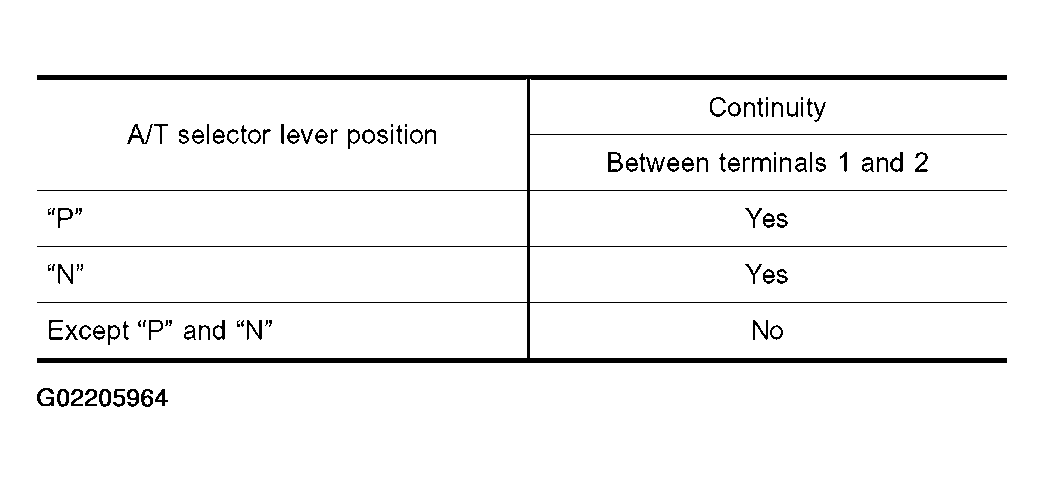

Fig 1: Checking Continuity Of Park Neutral Switch (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

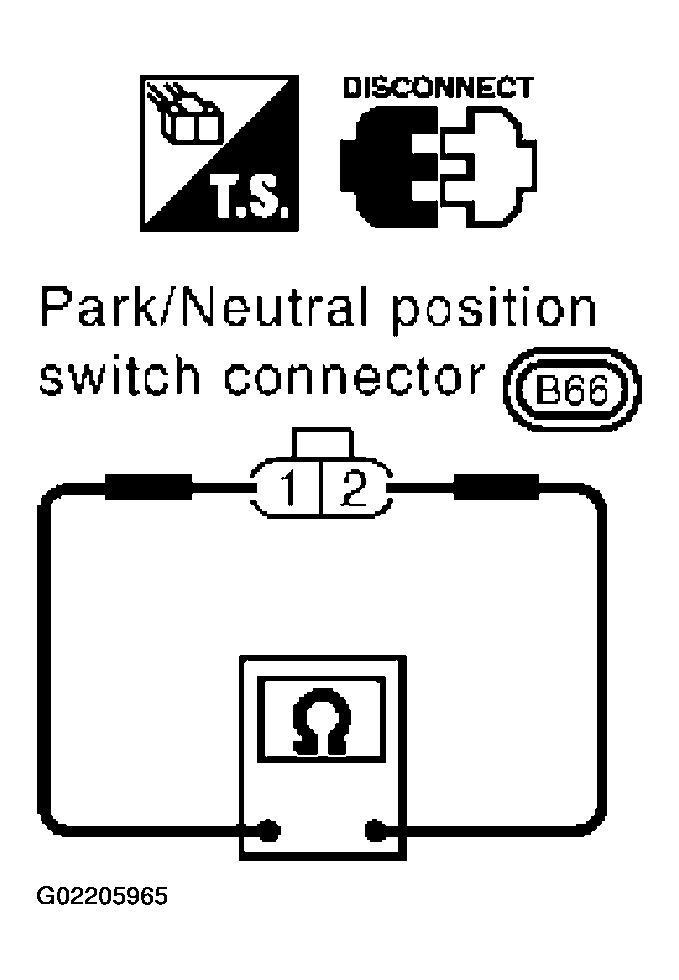

Fig 2: Checking Continuity Of Park Neutral Switch (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
