ASCD Brake/Stop Lamp Switch Check

1. Disconnect ASCD control unit harness connector.
2. Turn ignition switch ON.
3. Check voltage between ASCD control unit harness connector M3 terminal 8 and ground.

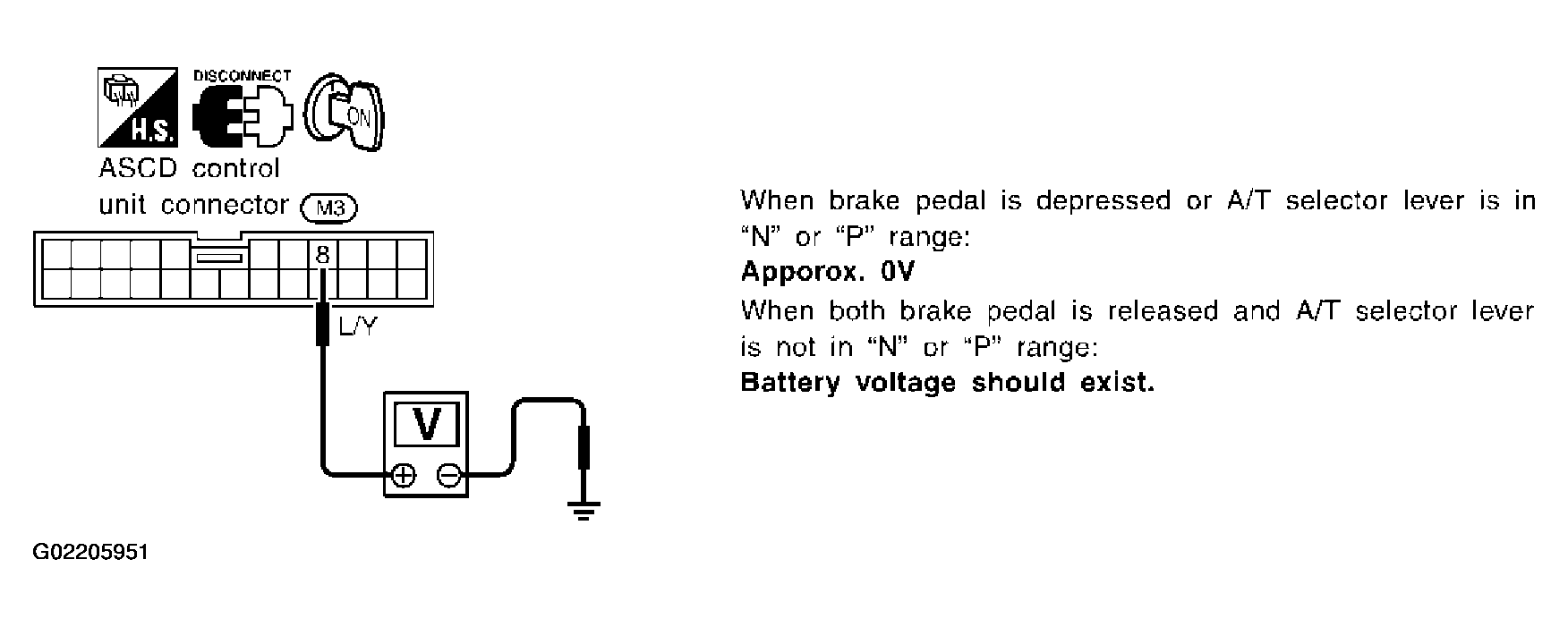

   Fig 1: Checking Voltage Between ASCD Control Unit Harness Connector M3 Terminal 8 And Ground (ASCD Brake Switch)

   Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to wiring diagram in WIRING DIAGRAM - ASCD -  .

OK or NG

1. OK : GO TO 2.
2. NG : Check the following.
   • ASCD brake switch

     Refer to "ELECTRICAL COMPONENT INSPECTION  .

   • Park/neutral position switch

     Refer to "ELECTRICAL COMPONENT INSPECTION  .

   • Park/neutral position relay
   • Harness for open or short

1. Disconnect ASCD control unit harness connector.
2. Check voltage between ASCD control unit harness connector terminal 23 and ground.

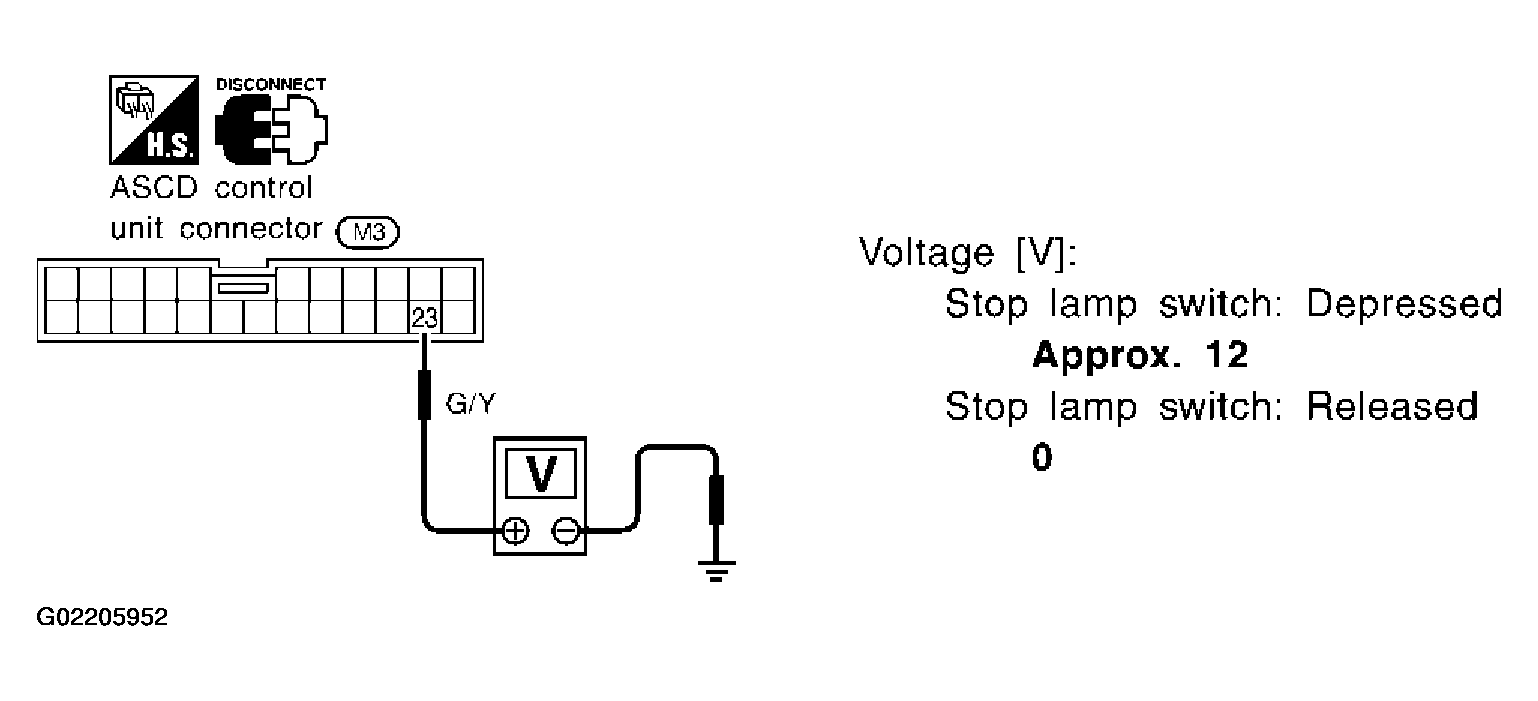

   Fig 2: Checking Voltage Between ASCD Control Unit Harness Connector Terminal 23 And Ground (Stop Lamp Switch Circuit)

   Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to wiring diagram in WIRING DIAGRAM - ASCD -  .

OK or NG

1. OK : ASCD brake/stop lamp switch is OK.
2. NG : Check the following.
   • 10A fuse [No. 14, located in the fuse block (J/B)]
   • Harness for open or short between ASCD control unit and stop lamp switch
   • Harness for open or short between fuse and stop lamp switch
   • Stop lamp switch

     Refer to "ELECTRICAL COMPONENT INSPECTION  .
