Engine Controls - Self-Diagnostics
›
Connector Identification
›
Engine Control Harness
Engine Control Harness

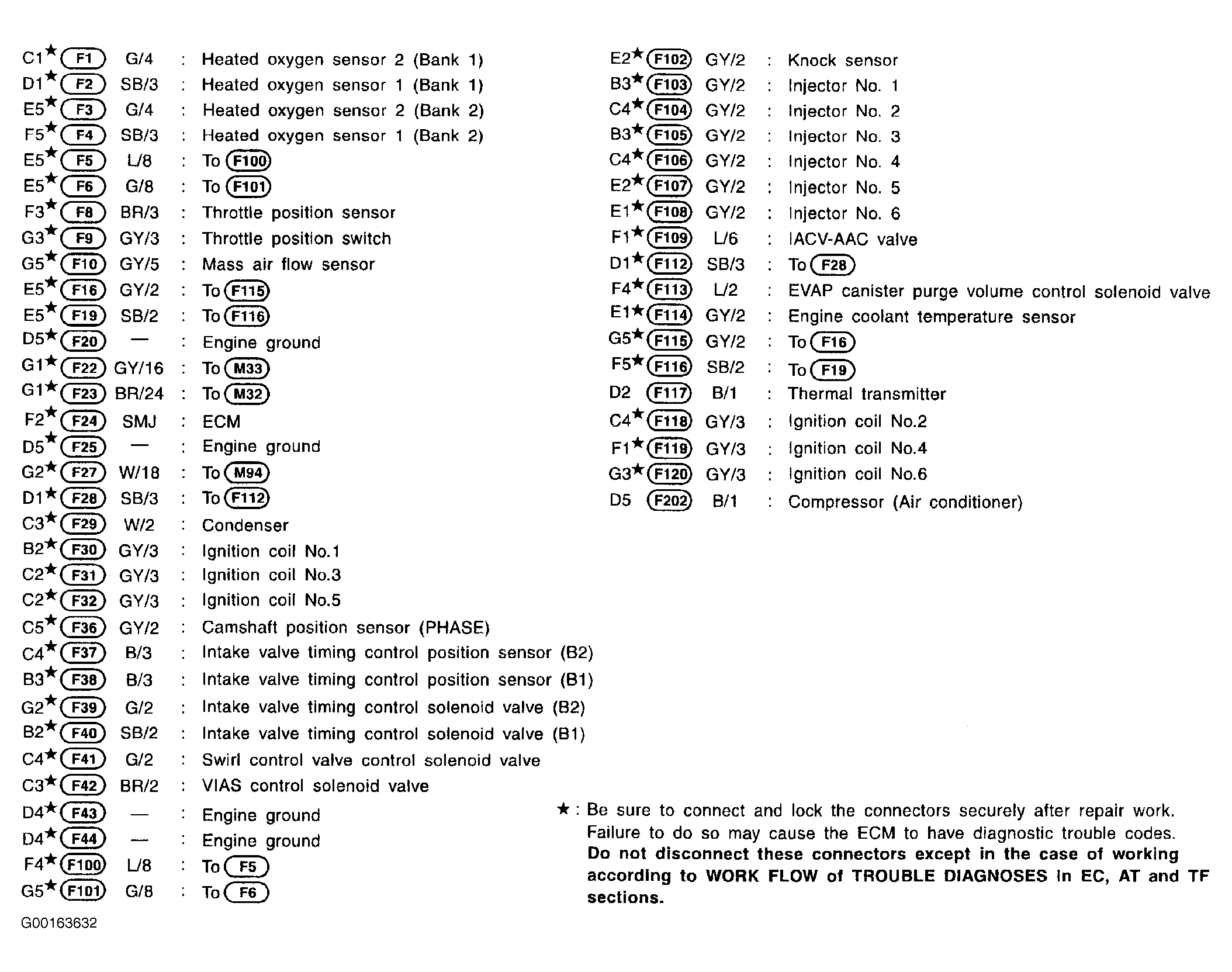

Fig 1: Identifying Engine Control Harness Routing (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

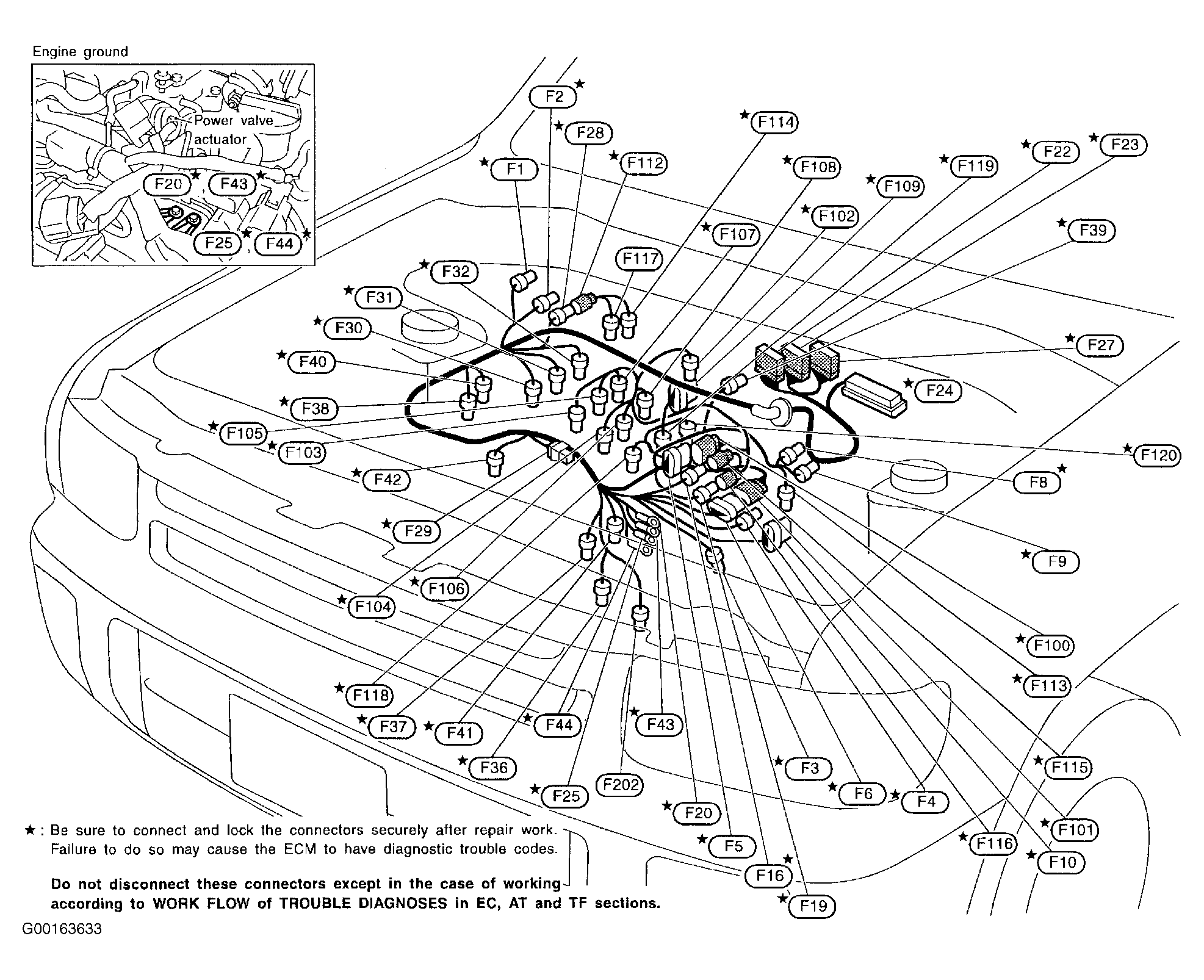

Fig 2: Identifying Engine Control Harness Routing (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

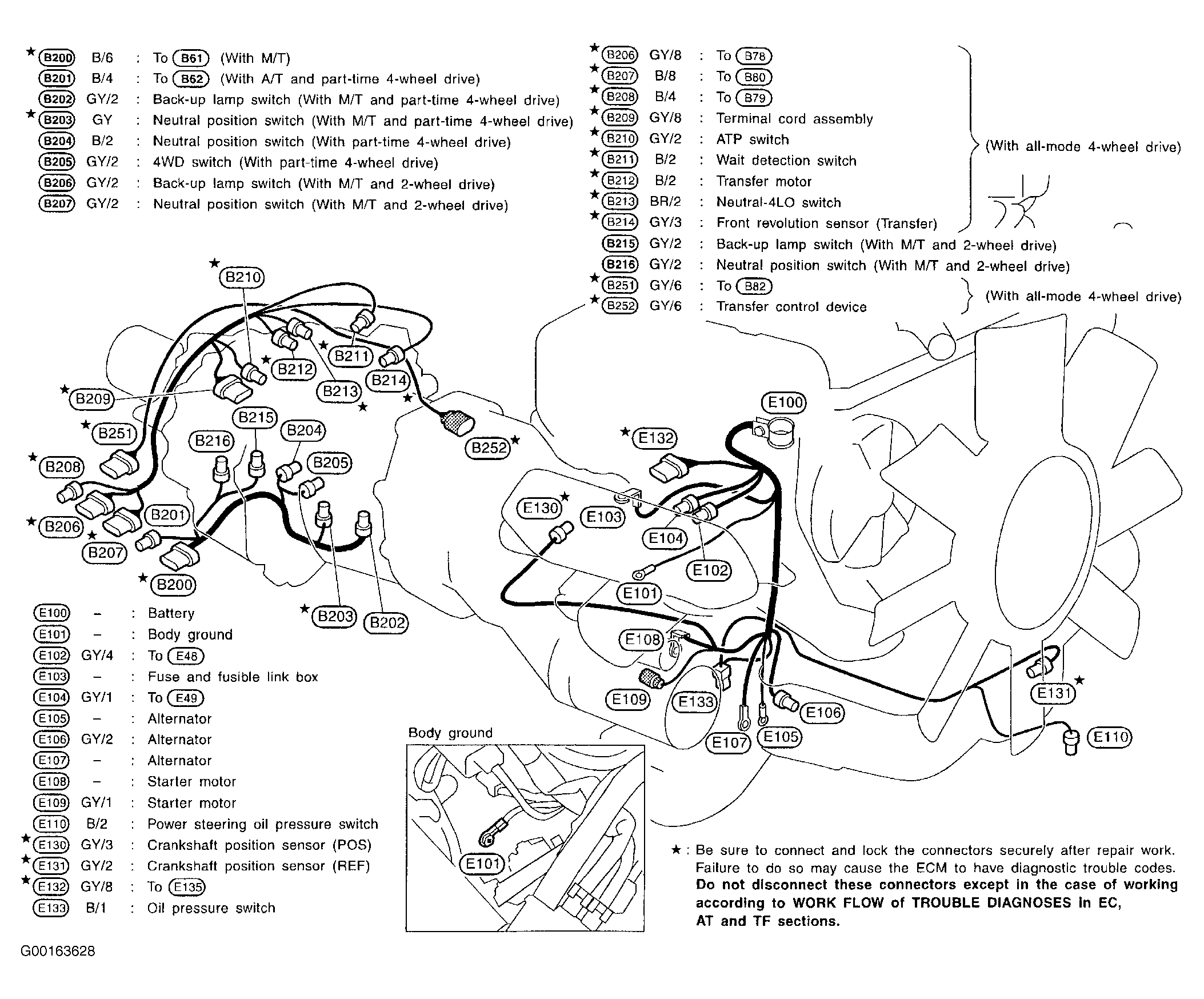

Fig 3: Identifying Engine & Transmission Harness Routing
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
