Main Harness

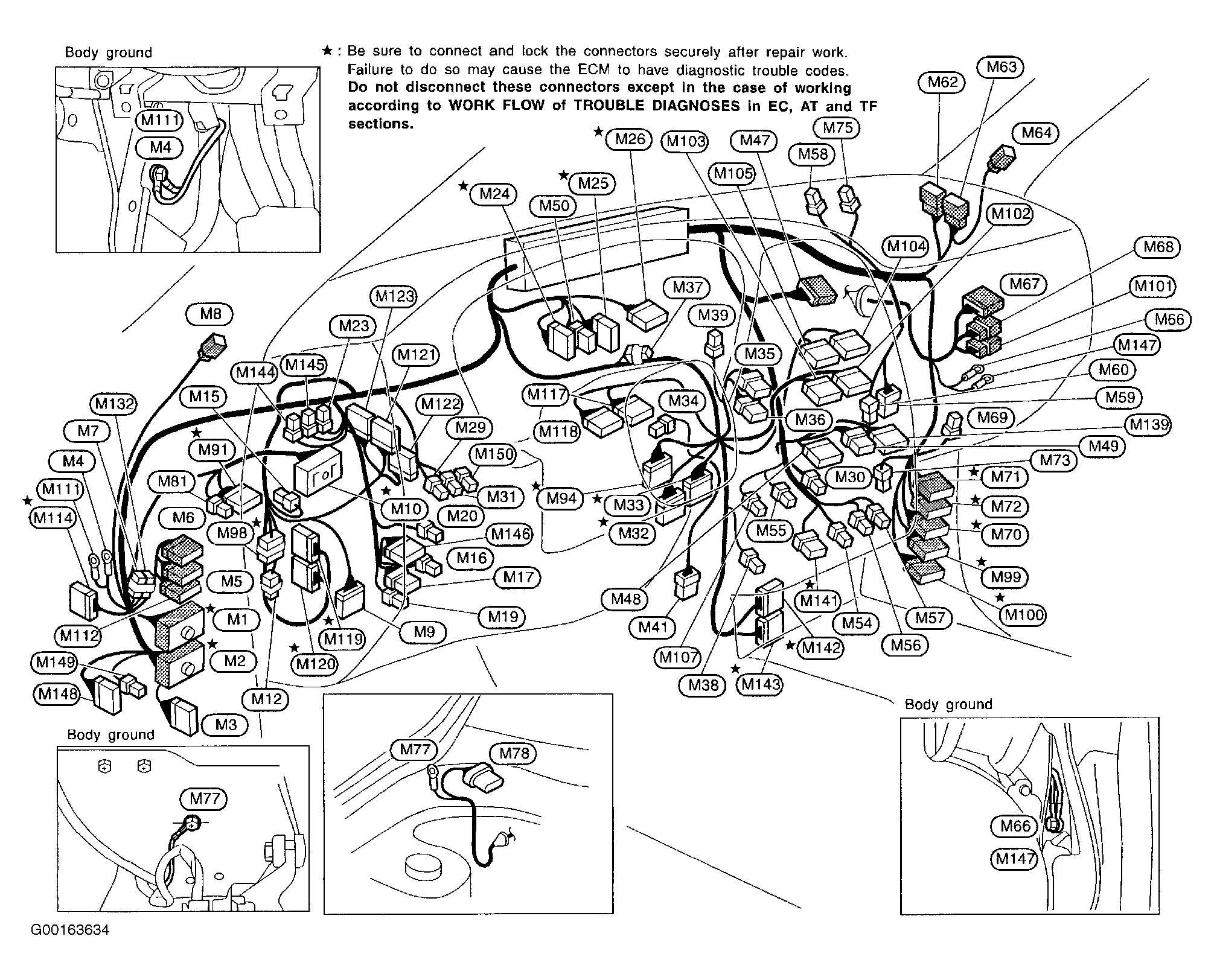

Fig 1: Identifying Main Harness Routing (1 Of 2)
G00163634Courtesy of NISSAN MOTOR CO., U.S.A.

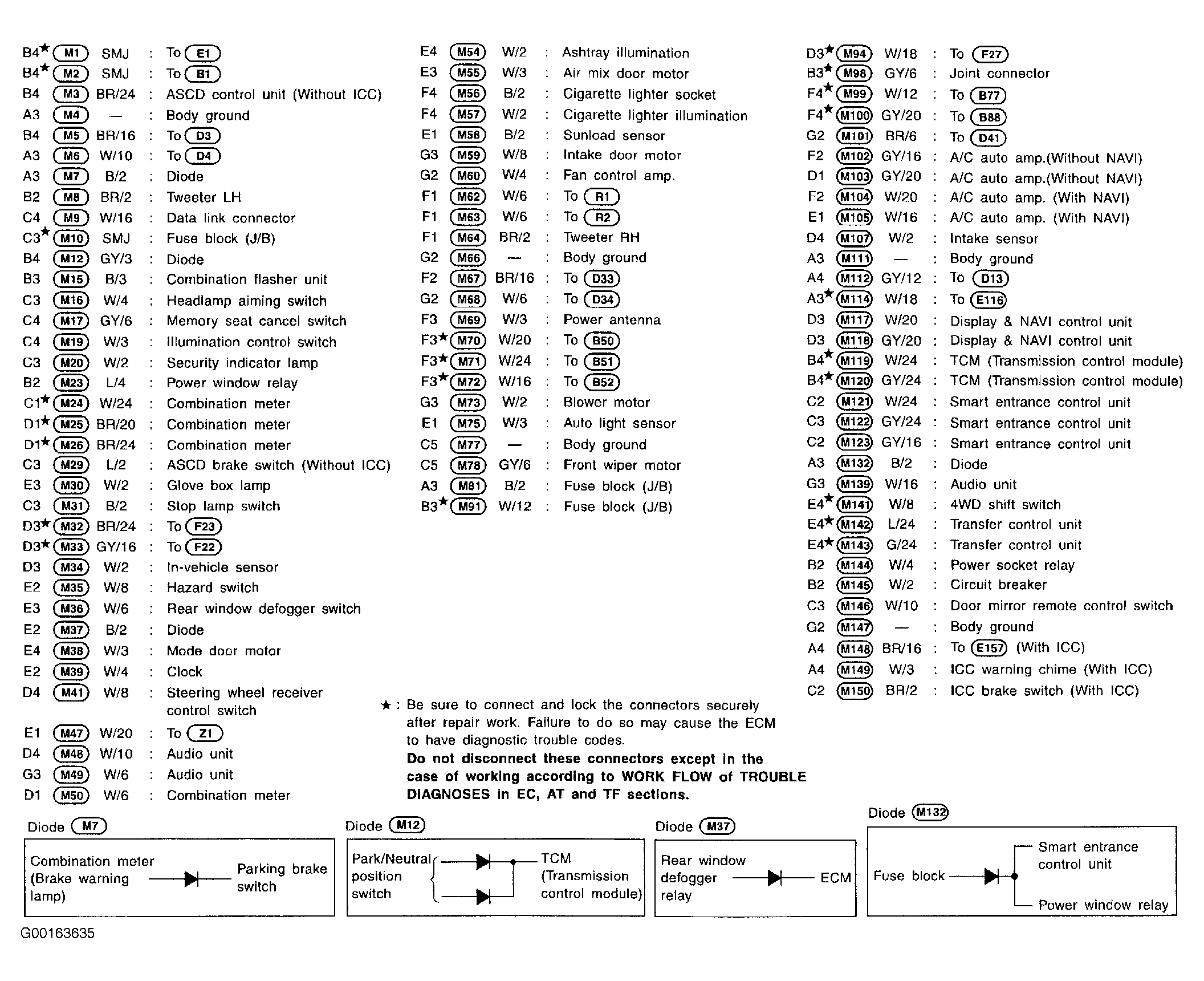

Fig 2: Identifying Main Harness Routing (2 Of 2)
G00163635Courtesy of NISSAN MOTOR CO., U.S.A.

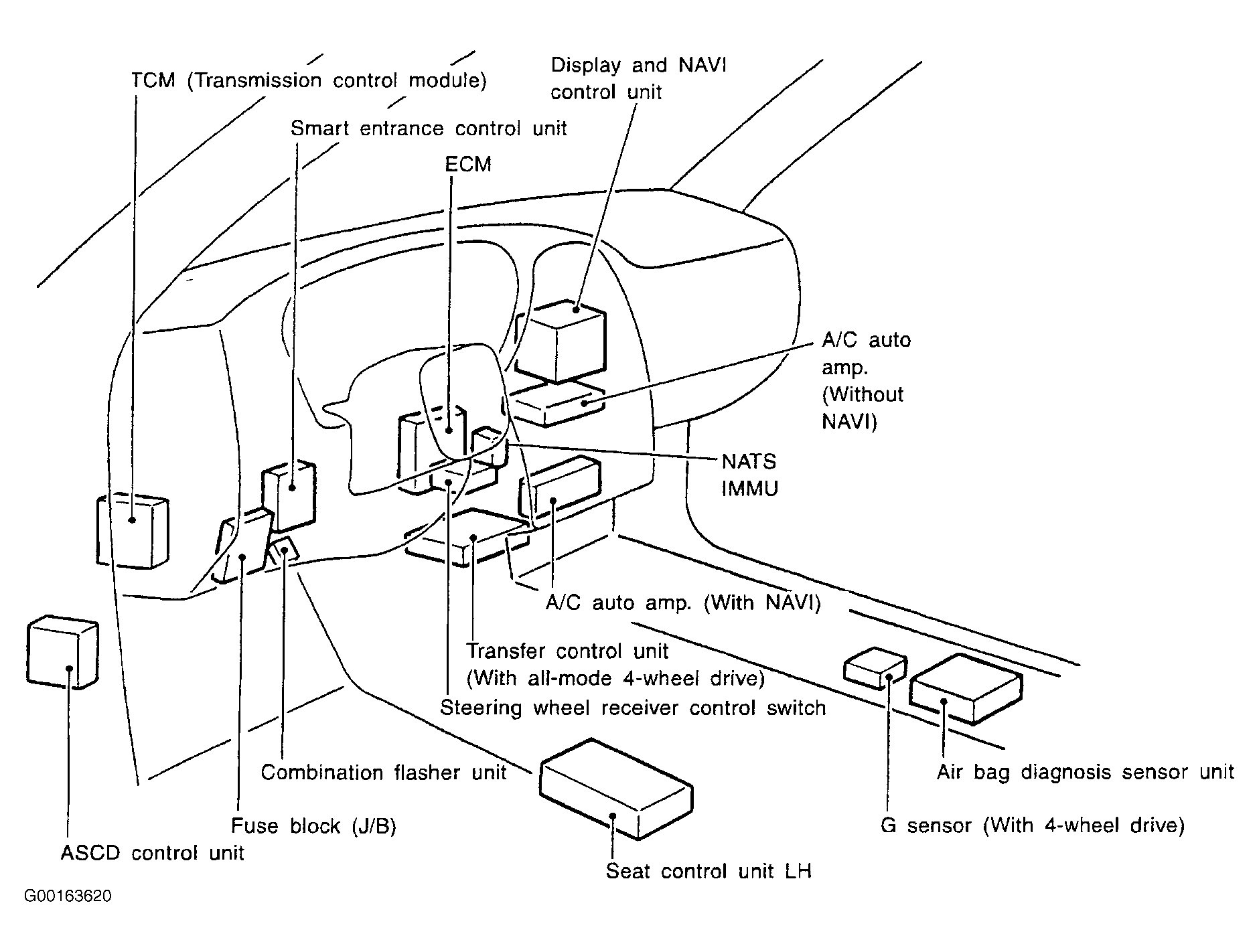

Fig 3: Identifying Underdash Components
G00163620Courtesy of NISSAN MOTOR CO., U.S.A.
