Ambient Sensor

WARNING: This page is about a different car, the 2002 Infiniti I35. However, it is still accessible from the selected car via links, so may be relevant.

After disconnecting ambient sensor harness connector, measure resistance between terminals 2 and 1 at sensor harness side, using the table.

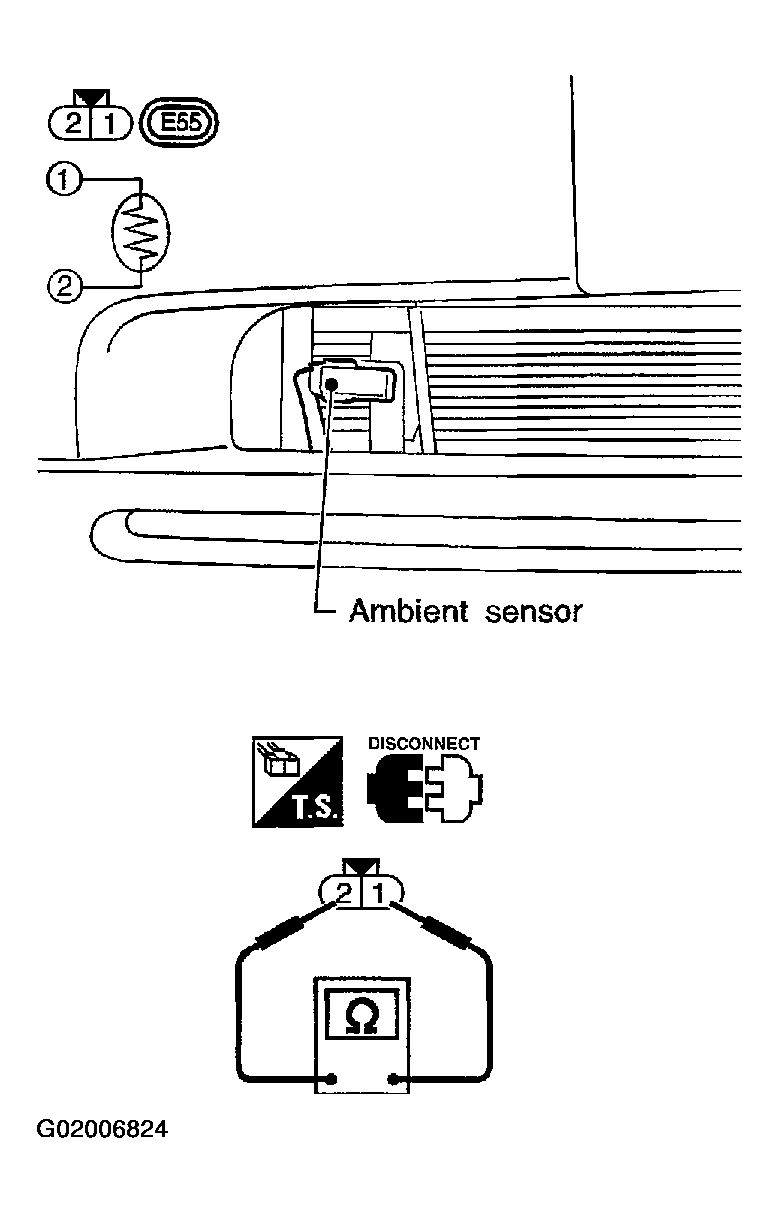

Fig 1: Testing Ambient Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Ambient Sensor Temperature/Resistance Table (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Ambient Sensor Temperature/Resistance Table (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, replace ambient sensor.
