4WD Model

  1. Remove propeller shaft. Refer to FRONT PROPELLER SHAFT .
  2. Remove transfer case from vehicle. Refer to REMOVAL .
  3. Remove A/T control cable bracket from transmission case.

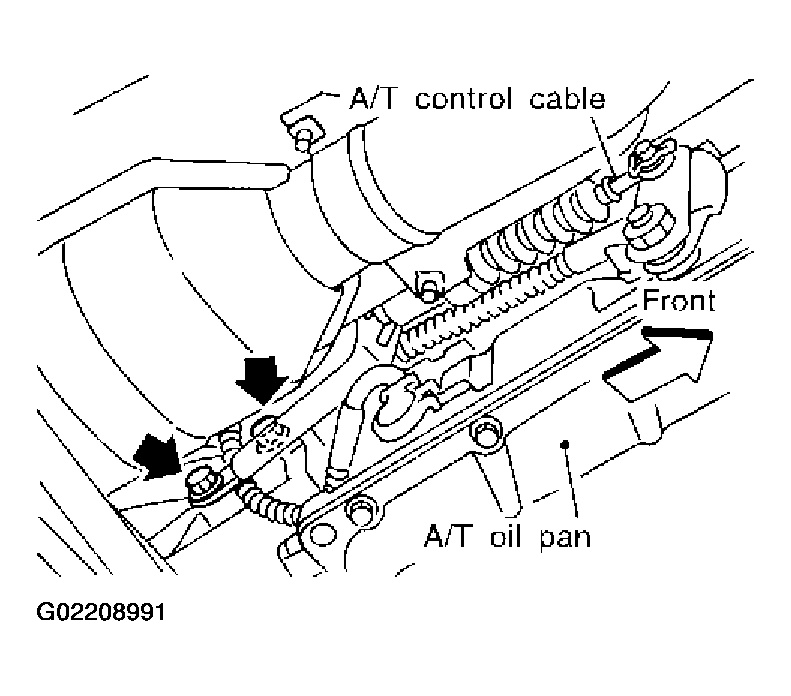

    Fig 1: Removing A/T Control Cable Bracket From Transmission Case Of 4WD Model
    G02208991Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Support A/T assembly with a jack.
  5. Remove adapter case from transmission case.
  6. Replace parking components if necessary.
  7. Reinstall any part removed.
    • Always use new sealing parts.

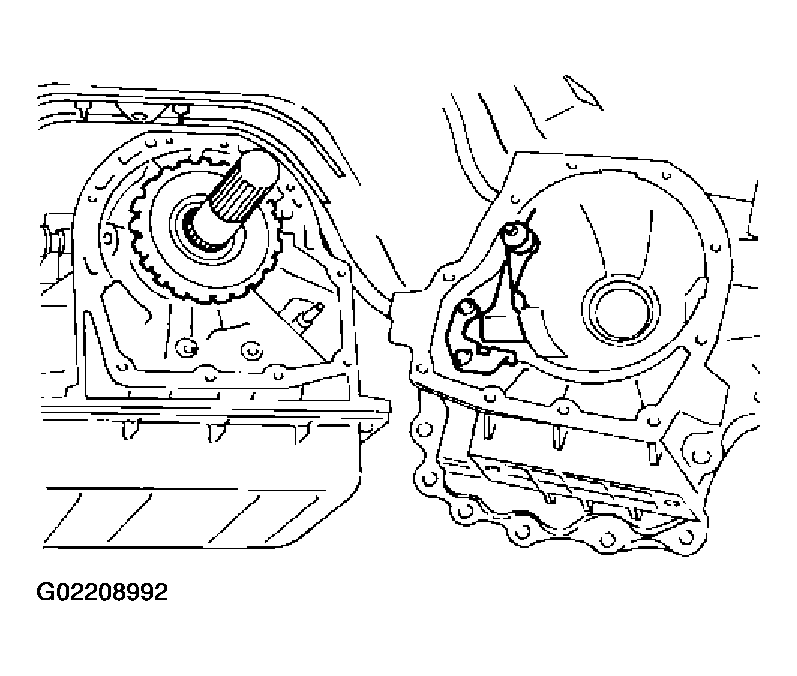

      Fig 2: Removing Adapter Case From Transmission Case
      G02208992Courtesy of NISSAN MOTOR CO., U.S.A.
